使用 Amazon Connect 联系记录识别会议和转接

联系记录捕获与联络中心的联系人关联的事件。对于每个新联系，Amazon Connect 都会创建一个联系记录，并为该联系分配一个唯一的联系 ID。

每当座席咨询其他座席（Amazon Connect 内部或外部座席，使用免费电话或直接内部拨号）时，Amazon Connect 都会创建咨询环节联系记录，并为此环节发出新的联系 ID。

主联系记录和任何后续咨询环节联系记录可以通过多个联系 ID 字段链接在一起，例如，初始联系 ID、下一联系 ID 和上一联系 ID。

本主题介绍如何能够使用这些字段区分联系记录中的会议和转接。它还提供了确定咨询操作类型的逻辑：协商呼叫、会议或转接。

术语

本主题中使用了以下术语：

以下章节将介绍如何能够确定联系记录中的每种通话类型。

咨询呼叫的联系记录

假设客户呼叫 Agent1。该座席不会转移或咨询他人。当呼叫断开连接时，联系记录如以下示例所示（仅显示相关字段）：

{
    "AWSAccountId": "account-id",
    "Agent": {
        "ARN": "agent-arn",
        "AfterContactWorkStartTimestamp": "2024-08-02T17:50:53Z",
        .
        .
        "Username": "Agent1"
    },
    "ContactId": "497f04ca-6de1-408f-9b8a-ec57bcc99b31",
    .
    .
    "InitialContactId": null,
    "NextContactId": null,
    "PreviousContactId": null,
    .
    .
}

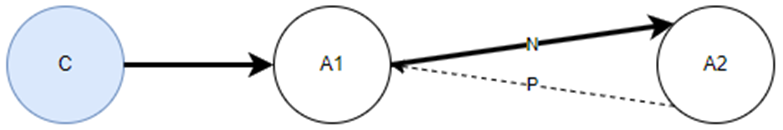

如果 Agent1 要与其他座席（Agent2）发起咨询呼叫，则为咨询、转接或会议。

以下示例联系记录显示了如何查找发起座席（Agent1）和接收者座席（Agent2）：

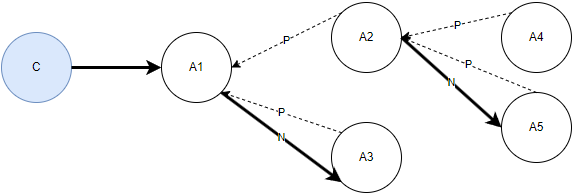

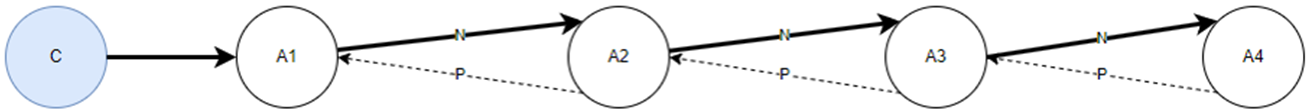

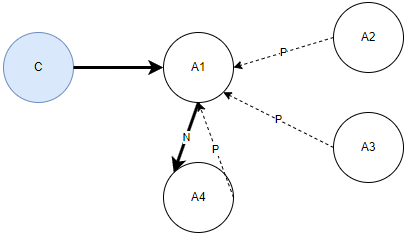

此模型可以扩展到涉及多个座席的协商呼叫。以下是如何对其进行扩展的使用案例。

如何识别咨询呼叫

第 1 步：将与主要联系关联的所有环节分组

此步骤可帮助您对给定发起者/呼叫者发起的所有呼叫进行分组。感兴趣的字段是“联系 ID”、“上一联系 ID”、“下一联系 ID”、“初始联系 ID”和“联系 ID”。这样也有助于您了解用于解析呼叫所采取的环节数。此步骤的工作流如下：

第 2 步：通过使用其联系 ID 字段来确定每对之间的关系

您可以使用以下逻辑来确定协商、转接与会议的关系。此逻辑使用联系记录中注明的时间戳字段。所有相关字段均已标记为 code。

协商呼叫

发起者与另一方进行协商 – 在同一个 Amazon Connect 实例内（内部）或该实例外部（外部）（使用 DID 或免费电话号码）。

电话会议

发起者通过使用直接内部拨号（DID）或免费电话号码，与同一 Amazon Connect 实例内的另一参与者（内部）或该实例外部的参与者（外部）举行会议。

转接电话

发起者与另一方进行协商 – 在同一个 Amazon Connect 实例内（内部）或该实例外部（外部）（使用 DID 或免费电话号码）。

代码段

以下示例代码片段（采用 SQL、Java 脚本和 Python）演示了如何通过利用上一节中描述的逻辑来识别会议、转接和咨询呼叫。这些代码片段仅作为示例提供，并不适用于生产环境。

SQL 代码

-- Conference transfer query DO NOT EDIT --
SELECT current_cr.contact_id,
    current_cr.initial_contact_id,
    current_cr.previous_contact_id,
    current_cr.next_contact_id,
    previous_cr.agent_username as initiator_agent_username,
    COALESCE (
        current_cr.agent_username,
        current_cr.customer_endpoint_address
    ) as recipient_agent_username,
    current_cr.agent_connected_to_agent_timestamp,
    current_cr.agent_after_contact_work_start_timestamp,
    current_cr.transfer_completed_timestamp,
    CASE
        WHEN previous_cr.agent_after_contact_work_start_timestamp < current_cr.agent_after_contact_work_start_timestamp
            AND previous_cr.transfer_completed_timestamp IS NOT NULL THEN 'TRANSFER'
        WHEN previous_cr.agent_after_contact_work_start_timestamp > current_cr.agent_after_contact_work_start_timestamp
            AND current_cr.agent_interaction_duration_ms <= 2000 THEN 'CONSULT'
        WHEN previous_cr.agent_after_contact_work_start_timestamp > current_cr.agent_after_contact_work_start_timestamp
            AND current_cr.agent_interaction_duration_ms > 2000 THEN 'CONFERENCE'
        WHEN current_cr.agent_username is NULL
            AND current_cr.initiation_method = 'EXTERNAL_OUTBOUND'
            AND previous_cr.agent_after_contact_work_start_timestamp > current_cr.disconnect_timestamp
            AND previous_cr.agent_customer_hold_duration_ms > current_cr.external_third_party_interaction_duration_ms THEN 'EXTERNAL_CONSULT'
        WHEN current_cr.agent_username is NULL
            AND current_cr.initiation_method = 'EXTERNAL_OUTBOUND'
            AND previous_cr.agent_after_contact_work_start_timestamp > current_cr.disconnect_timestamp
            AND previous_cr.agent_customer_hold_duration_ms < current_cr.external_third_party_interaction_duration_ms THEN 'EXTERNAL_CONFERENCE'
        WHEN current_cr.agent_username is NULL
            AND current_cr.initiation_method = 'EXTERNAL_OUTBOUND'
            AND current_cr.disconnect_timestamp > previous_cr.transfer_completed_timestamp THEN 'EXTERNAL_TRANSFER' ELSE 'START'
    END AS TYPE
FROM contact_record_link current_cr
    LEFT JOIN contact_record_link previous_cr ON previous_cr.contact_id = current_cr.previous_contact_id
WHERE (
        -- INPUT CONTACT ID --
        current_cr.initial_contact_id = 'A CONTACT ID'
        or current_cr.contact_id = 'SAME CONTACT ID AS ABOVE'
    )
order by current_cr.agent_connected_to_agent_timestamp asc



Python 代码

"""Module Compare CTR's and establish relation"""
###############################################################################
# Usage python ctr_processor.py [Initial Contact ID]
# Example: python CTR_Processor.py 497f04ca-6de1-408f-9b8a-ec57bcc99b31
#
# Have your CTR record JSON files in the same directory as this Python module
# and execute the module as noted above. The input parameter is the
# Initial Contact ID / the Contact ID of the first leg of the call.
#
####################################################################z###########

import json
import re
import os
import sys
from dateutil import parser

PATH_OF_FILES   = './'
JSON            = '.json'
ENCODING        = 'UTF-8'
INTERACTION_DURN_THRESHOLD = 2
TYPE_INITIAL        = 'STAND ALONE'
TYPE_CONSULT        = 'CONSULT'
TYPE_EXT_CONSULT    = 'EXT_CONSULT'
TYPE_EXT_CONF       = 'EXT_CONFERENCE'
TYPE_CONFERENCE     = 'CONFERENCE'
TYPE_TRANSFER       = 'TRANSFER'
TYPE_UNKNOWN        = 'UNKNOWN'
CONTACT_STATE_INT   = 'INTERMEDIATE'
CONTACT_STATE_FINAL = 'FINAL'
CONTACT_STATE_START = 'START'
PRINT_INDENT        = 4

def process_ctr_records(ctr_array):
    """ Function to process CTR Records"""
    relation = {}
    output_list = []
    if ctr_array is None : return None
    for i, a_record in enumerate(ctr_array):
        if (prev_cid := a_record.get('PreviousContactId', None)) is not None:
            if (parent_ctr := get_parent_node(ctr_array, a_record['ContactId'], prev_cid)) is not None:
                relation = establish_relation(parent_ctr, a_record)
        else:
            relation = establish_parent(a_record)
        if relation is not None:
            output_list.append(relation)
    return output_list

def establish_parent(a_ctr):
    """ Establish the first record - the one that doesn't have a Previous Contact ID"""
    if a_ctr.get('Agent', None) is not None:
        return {
                'Agent': a_ctr['Agent']['Username']
                ,'ConnectedToAgentTimestamp': a_ctr['Agent']['ConnectedToAgentTimestamp']
                ,'Root Contact ID': a_ctr['ContactId']
                ,'Type': TYPE_INITIAL
                ,'Contact State': CONTACT_STATE_START
            }

def establish_relation(parent, child):
    """ Establish Conf / Transfer / Consult relation between two Agents"""
    if is_external_call(child):
        return establish_external_relation(parent, child)
    else:
        return establish_internal_relation(parent, child)

def establish_external_relation(parent, child):
    """ Establish Conf / Transfer / Consult relation between two Agents - External call"""
    ret = {
        'Parties': parent['Agent']['Username'] + ' <-> External:' + child['CustomerEndpoint']['Address']
        ,'Contact State': parent.get('Contact State', CONTACT_STATE_INT)
        ,'ConnectedToAgentTimestamp': child['ConnectedToSystemTimestamp']
    }

    parent_acw_start_ts = parser.parse(parent['Agent']['AfterContactWorkStartTimestamp'])
    child_disconnect_ts  = parser.parse(child['DisconnectTimestamp'])
    if (parent_acw_start_ts - child_disconnect_ts).total_seconds() > 0: # Parent ended after child: Consult or conference
        ret['Type'] = TYPE_EXT_CONSULT if (parent['Agent']['CustomerHoldDuration'] - child['ExternalThirdParty']['ExternalThirdPartyInteractionDuration']) > INTERACTION_DURN_THRESHOLD else TYPE_EXT_CONF
    elif ((transfer_completed_ts := parser.parse(parent.get('TransferCompletedTimestamp', None))) is not None) and \
         ((child_disconnect_ts - transfer_completed_ts).total_seconds() > 0): # ACW started after transfer was completed
        ret['Type'] = TYPE_TRANSFER
    return ret

def establish_internal_relation(parent, child):
    """ Establish Conf / Transfer / Consult relation between two Agents - Internal call"""
    ret = {
        'Parties': parent['Agent']['Username'] + ' <-> ' + child['Agent']['Username']
        ,'Contact State': parent.get('Contact State', CONTACT_STATE_INT)
        ,'Child Contact ID': child.get('ContactId', 'NOTHING')
        ,'ConnectedToAgentTimestamp': child['Agent']['ConnectedToAgentTimestamp']
    }

    parent_acw_start_ts = parser.parse(parent['Agent']['AfterContactWorkStartTimestamp'])
    child_acw_start_ts  = parser.parse(child['Agent']['AfterContactWorkStartTimestamp'])

    if (parent_acw_start_ts - child_acw_start_ts).total_seconds() > 0: # Parent ended after child: Consult or conference
        ret['Type'] = TYPE_CONSULT if child['Agent']['AgentInteractionDuration'] < INTERACTION_DURN_THRESHOLD else TYPE_CONFERENCE
    elif ((transfer_completed_ts := parser.parse(parent.get('TransferCompletedTimestamp', None))) is not None) and \
         ((child_acw_start_ts - transfer_completed_ts).total_seconds() > 0): # ACW started after transfer was completed
        ret['Type'] = TYPE_TRANSFER
    return ret

def is_external_call(a_record):
    """Is this an external call """
    if (a_record.get('Agent', None) is None and
        a_record.get('InitiationMethod', None) == 'EXTERNAL_OUTBOUND'):
        return True
    return False

def get_parent_node(ctr_array, child_cid, child_prev_cid):
    """ Get the parent node when we have a Previous Contact ID"""
    for i, a_record in enumerate(ctr_array):
        if (parent_cid := a_record.get('ContactId', None)) is not None:
            if compare_strings(parent_cid, child_prev_cid):
                if (parent_next_cid := a_record.get('NextContactId', None)) is not None:
                    if compare_strings(parent_next_cid, child_cid):
                        return a_record |  {'Contact State': CONTACT_STATE_FINAL}
                    else:
                        return a_record
                else:
                    return a_record |  {'Contact State': CONTACT_STATE_INT}

def compare_strings(s1, s2):
    """ Compare two Contact IDs"""
    if s1 is None or s2 is None : return False
    return re.search(re.compile(s2), s1)

def read_all_ctr_records(a_cid):
    """ Read all the CTR records for a given Initial Contact ID. Modify for S3 read"""
    ctr_array = []
    for file_name in [file for file in os.listdir(PATH_OF_FILES) if file.endswith(JSON)]:
        with open(PATH_OF_FILES + file_name, encoding=ENCODING) as json_file:
            try:
                a_ctr = json.load(json_file)
            except ValueError:
                print('Error in parsing JSON. File name:[', file_name, ']')

            if a_ctr is not None:
                c_id = a_ctr['ContactId']
                init_cid = a_ctr.get('InitialContactId', None)
                if compare_strings(a_cid, c_id):
                    ctr_array.append(a_ctr)
                elif compare_strings(a_cid, init_cid):
                    ctr_array.append(a_ctr)

    return ctr_array

def main():
    """ Entry point"""
    if len(sys.argv) < 2:
        print('Incorrect number of arguments (', len(sys.argv), ') --> python ctr_processor.py [Initial Contact ID]')
        return
    else:
        output_list = process_ctr_records(read_all_ctr_records(sys.argv[1]))
        if output_list is not None and len(output_list) > 0:
            output_list.sort(key=lambda x: x['ConnectedToAgentTimestamp'])
            for i, an_entry in enumerate(output_list):
                print(json.dumps(an_entry, indent=PRINT_INDENT))
        else:
            print('Unable to find Contact ID:[', sys.argv[1], '] in the input CTR Records. Please check the files and try again.')

if __name__ == "__main__":
    main()

JS 代码

// Has a dependency on the following Node.js modules: - date-fns, fs, path
//sample input: node index.js 497f04ca-6de1-408f-9b8a-ec57bcc99b31

const fs = require('fs');
const path = require('path');
const { parseISO } = require('date-fns');

const PATH_OF_FILES = './';
const JSON_EXT = '.json';
const ENCODING = 'UTF-8';
const INTERACTION_DURATION_THRESHOLD = 2;
const CONTACT_TYPES = {
    INITIAL: 'STAND ALONE',
    CONSULT: 'CONSULT',
    EXTERNAL_CONSULT: 'EXT_CONSULT',
    EXTERNAL_CONFERENCE: 'EXT_CONFERENCE',
    CONFERENCE: 'CONFERENCE',
    TRANSFER: 'TRANSFER',
    EXTERNAL_TRANSFER: 'EXT_TRANSFER',
};
const CONTACT_STATES = {
    INTERMEDIATE: 'INTERMEDIATE',
    FINAL: 'FINAL',
    START: 'START',
};
const PRINT_INDENT = 4;

function processCtrRecords(ctrArray) {
    if (!ctrArray) return null;
    const outputList = [];

    ctrArray.forEach(record => {
        let relation = null;
        const prevCid = record.PreviousContactId;
        if (prevCid) {
            const parentRecord = findParentRecord(ctrArray, record.ContactId, prevCid);
            if (parentRecord) {
                relation = establishRelation(parentRecord, record);
            }
        } else {
            relation = establishInitialRecord(record);
        }
        if (relation) {
            outputList.push(relation);
        }
    });

    return outputList;
}

function establishInitialRecord(record) {
    if (record.Agent) {
        return {
            'Agent': record.Agent.Username,
            'ConnectedToAgentTimestamp': record.Agent.ConnectedToAgentTimestamp,
            'Root Contact ID': record.ContactId,
            'Type': CONTACT_TYPES.INITIAL,
            'Contact State': CONTACT_STATES.START,
        };
    }
}

function establishRelation(parent, child) {
    return isExternalCall(child)
        ? establishExternalRelation(parent, child)
        : establishInternalRelation(parent, child);
}

function establishExternalRelation(parent, child) {
    const parentAcwStartTs = parent.Agent?.AfterContactWorkStartTimestamp
        ? parseISO(parent.Agent.AfterContactWorkStartTimestamp)
        : null;
    const childDisconnectTs = child.DisconnectTimestamp
        ? parseISO(child.DisconnectTimestamp)
        : null;

    const relation = {
        'Parties': `${parent.Agent.Username} <-> External:${child.CustomerEndpoint.Address}`,
        'Contact State': parent['Contact State'] || CONTACT_STATES.INTERMEDIATE,
        'ConnectedToAgentTimestamp': child.ConnectedToSystemTimestamp,
    };

    if (parentAcwStartTs && childDisconnectTs && (parentAcwStartTs - childDisconnectTs) > 0) {
        if (parent.Agent.CustomerHoldDuration - child.ExternalThirdParty.ExternalThirdPartyInteractionDuration > INTERACTION_DURATION_THRESHOLD) {
            relation['Type'] = CONTACT_TYPES.EXTERNAL_CONSULT;
        } else {
            relation['Type'] = CONTACT_TYPES.EXTERNAL_CONFERENCE;
        }
    } else if (parent.TransferCompletedTimestamp) {
        const transferCompletedTs = parseISO(parent.TransferCompletedTimestamp);
        if (transferCompletedTs && childDisconnectTs && (childDisconnectTs - transferCompletedTs) > 0) {
            relation['Type'] = CONTACT_TYPES.EXTERNAL_TRANSFER;
        }
    }

    return relation;
}

function establishInternalRelation(parent, child) {
    const parentAcwStartTs = parent.Agent?.AfterContactWorkStartTimestamp
        ? parseISO(parent.Agent.AfterContactWorkStartTimestamp)
        : null;
    const childAcwStartTs = child.Agent?.AfterContactWorkStartTimestamp
        ? parseISO(child.Agent.AfterContactWorkStartTimestamp)
        : null;

    const relation = {
        'Parties': `${parent.Agent.Username} <-> ${child.Agent.Username}`,
        'Contact State': parent['Contact State'] || CONTACT_STATES.INTERMEDIATE,
        'Child Contact ID': child.ContactId || 'NOTHING',
        'ConnectedToAgentTimestamp': child.Agent.ConnectedToAgentTimestamp,
    };

    if (parentAcwStartTs && childAcwStartTs && (parentAcwStartTs - childAcwStartTs) > 0) {
        relation['Type'] = child.Agent.AgentInteractionDuration < INTERACTION_DURATION_THRESHOLD
            ? CONTACT_TYPES.CONSULT
            : CONTACT_TYPES.CONFERENCE;
    } else if (parent.TransferCompletedTimestamp) {
        const transferCompletedTs = parseISO(parent.TransferCompletedTimestamp);
        if (transferCompletedTs && childAcwStartTs && (childAcwStartTs - transferCompletedTs) > 0) {
            relation['Type'] = CONTACT_TYPES.TRANSFER;
        }
    }

    return relation;
}

function isExternalCall(record) {
    return !record.Agent && record.InitiationMethod === 'EXTERNAL_OUTBOUND';
}

function findParentRecord(ctrArray, childCid, childPrevCid) {
    for (const record of ctrArray) {
        const parentCid = record.ContactId;
        if (compareStrings(parentCid, childPrevCid)) {
            const parentNextCid = record.NextContactId;
            if (parentNextCid && compareStrings(parentNextCid, childCid)) {
                return { ...record, 'Contact State': CONTACT_STATES.FINAL };
            } else {
                return { ...record, 'Contact State': CONTACT_STATES.INTERMEDIATE };
            }
        }
    }
    return null;
}

function compareStrings(s1, s2) {
    return s1 && s2 && s1.includes(s2);
}

function readAllCtrRecords(contactId) {
    return fs.readdirSync(PATH_OF_FILES)
        .filter(file => file.endsWith(JSON_EXT))
        .map(fileName => JSON.parse(fs.readFileSync(path.join(PATH_OF_FILES, fileName), ENCODING)))
        .filter(record => compareStrings(contactId, record.ContactId) || compareStrings(contactId, record.InitialContactId));
}

function main() {
    const [initialContactId] = process.argv.slice(2);
    if (!initialContactId) {
        console.log('Usage: node index.js [Initial Contact ID]');
        return;
    }

    const outputList = processCtrRecords(readAllCtrRecords(initialContactId));
    if (outputList.length) {
        outputList.sort((a, b) => new Date(a.ConnectedToAgentTimestamp) - new Date(b.ConnectedToAgentTimestamp));
        outputList.forEach(entry => console.log(JSON.stringify(entry, null, PRINT_INDENT)));
    } else {
        console.log(`Unable to find Contact ID: [${initialContactId}]. Please check and try again.`);
    }
}

if (require.main === module) {
    main();
}
