使用 Amazon Chime SDK PSTN 音频服务结束呼叫

要结束出站呼叫，您可以使用 CreateSipMediaApplicationCall API。API 调用指定 SIP 媒体应用程序 ID 的终端节点。客户可以通过向 SIP 媒体应用程序返回操作来控制呼叫流程。

如果成功响应，API 会返回 202 http 状态码以及 transactionId，您可以将其与 UpdateSipMediaApplicationCall API 一起使用以更新正在进行的呼叫。

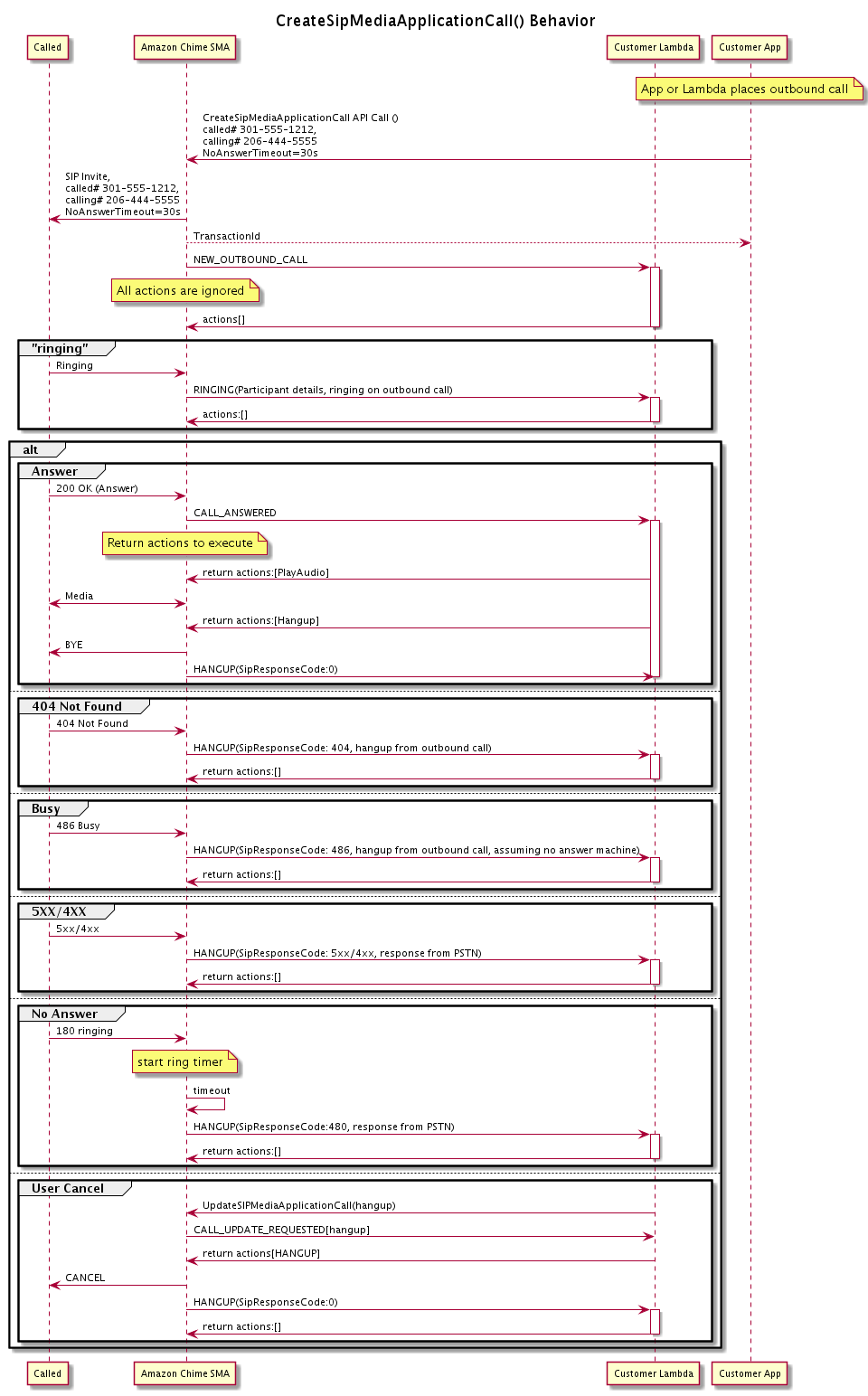

下图显示了出站呼叫对 AWS Lambda 函数端点进行的调用。

针对出站呼叫的不同状态调用为 SIP 媒体应用程序配置的终端节点。当客户结束呼叫时，Amazon Chime SDK 会使用 HANGUP 调用事件类型调用终端节点。

此示例显示 HANGUP 的典型调用事件。

{
    "SchemaVersion": "1.0",
    "Sequence": 6,
    "InvocationEventType": "HANGUP",
    "ActionData": {
        "Type": "Hangup",
        "Parameters": {
            "CallId": "call-id-1",
            "ParticipantTag": "LEG-A"
        }
    },
    "CallDetails": {
        "TransactionId": "transaction-id",
        "AwsAccountId": "aws-account-id",
        "AwsRegion": "us-east-1",
        "SipRuleId": "sip-rule-id",
        "SipApplicationId": "sip-application-id",
        "Participants": [
            {
                "CallId": "call-id-1",
                "ParticipantTag": "LEG-A",
                "Direction": "Inbound",
                 "To": "+12065551212",
                "From": "+15105550101",
                "StartTimeInMilliseconds": "1597009588",
                "Status": "Disconnected"
            }
        ]
    }
}

// if LEG-B receives a hangup in a bridged call, such as a meeting ending
{
    "SchemaVersion": "1.0",
    "Sequence": 6,
    "InvocationEventType": "HANGUP",
    "ActionData": {
        "Type": "ReceiveDigits",
        "Parameters": {
            "CallId": "call-id-2",
            "ParticipantTag": "LEG-B"
        }
    },
    "CallDetails": {
        "TransactionId": "transaction-id",
        "AwsAccountId": "aws-account-id",
        "AwsRegion": "us-east-1",
        "SipRuleId": "sip-rule-id",
        "SipApplicationId": "sip-application-id",
        "Participants": [
            {
                "CallId": "call-id-1",
                "ParticipantTag": "Leg-A",
                 "To": "+12065551212",
                "From": "+15105550101",
                "Direction": "Inbound",
                "StartTimeInMilliseconds": "1597009588",
                "Status": "Connected"
            },
            {
                "CallId": "call-id-2",
                "ParticipantTag": "Leg-B",
                "To": "+17035550122",
                "From": "SMA",
                "Direction": "Outbound",
                "StartTimeInMilliseconds": "15010595",
                "Status": "Disconnected"
            }
        ]
    }
}
