On-Premises Connectivity Using AWS Direct Connect to a Virtual Private Gateway and VPN
Publication date: March 10, 2022 (Diagram history)
This architecture shows on-premises connectivity to VMware Cloud on AWS Software-defined Data Centers (SDDCs) using AWS Direct Connect to a virtual private gateway (VGW) and AWS Site-to-Site VPN for backup connectivity.
VMware Cloud on AWS networking with Direct Connect to VGW architecture

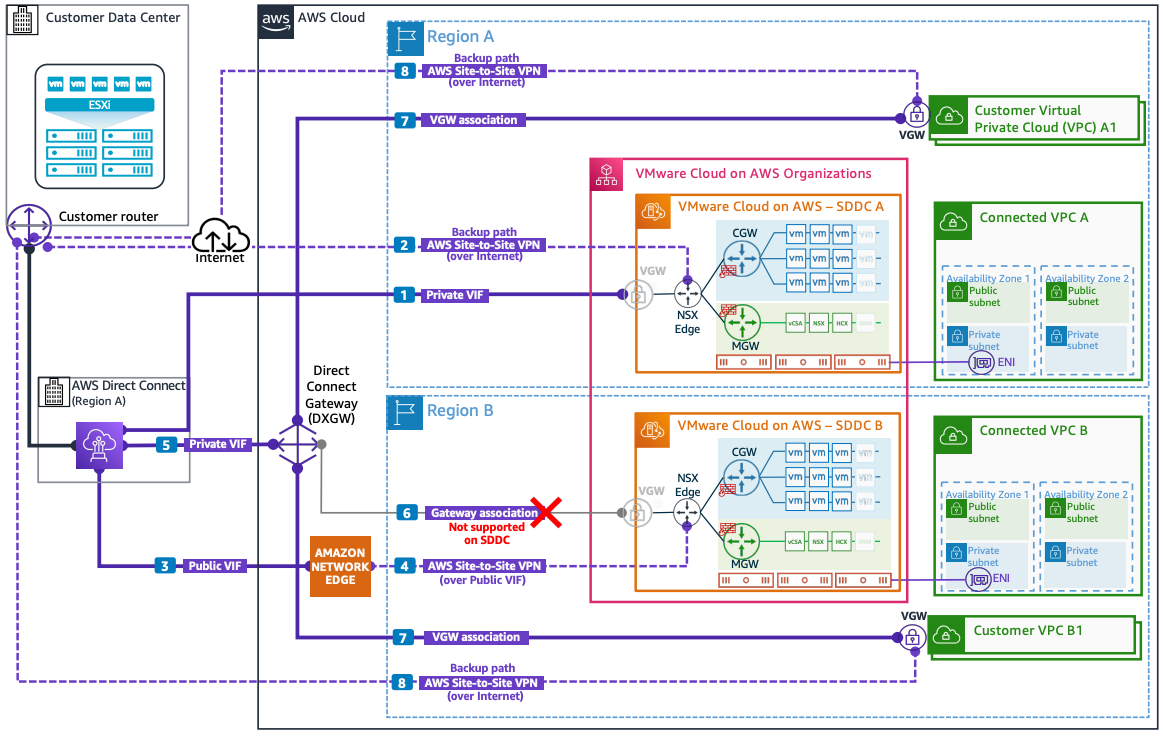

The following numbered items describe the key components in this architecture:
-
A private virtual interface (VIF) establishes connectivity to the VMware Software-defined Data Center (SDDC) A in AWS Region A.
-
An AWS Site-to-Site VPN (over internet) provides backup connectivity to the private VIF to provide resilient connectivity to the VMware SDDC A.
-
A public VIF enables access to all AWS public services and endpoints using public IP addresses.
-
The lack of an AWS Direct Connect connection in Region B creates a design constraint; therefore, a Site-to-Site VPN is established to the VMware SDDC B. This VPN uses the public VIF from the Direct Connect connection in Region A. Site-to-Site VPNs over a public VIF can be used to establish a more consistent network experience compared to internet-based VPNs.
-
A private VIF to the AWS Direct Connect gateway (DXGW) enables the DXGW to establish on-premises communication to Amazon VPCs in different Regions by associating the DXGW to the virtual private gateways (VGW).
-
The private VIF to DXGW cannot be used for gateway associations to a VMware SDDC. This feature is not supported on VMware Cloud on AWS.
-
Gateway associations are established between the DXGW and the VGW to enable on-premises communication with Amazon VPCs in multiple Regions.
-
Site-to-Site VPNs are configured as a backup to the DXGW-VGW associations for more resilient connectivity to Amazon VPCs.
