Kontrol pemain dan fungsionalitas untuk pelacakan iklan sisi klien

MediaTailor metadata pelacakan sisi klien mendukung berbagai kontrol dan fungsionalitas pemain. Daftar berikut menjelaskan kontrol pemain populer.

Menggosok

Untuk meningkatkan pengalaman pemutaran, pemain dapat menampilkan posisi iklan di timeline pemutaran. MediaTailor membuat posisi iklan ini tersedia dalam bentuk startTimeInSeconds nilai dalam respons pelacakan sisi klien.

catatan

Beberapa penyedia streaming mencegah penggosongan melewati posisi iklan.

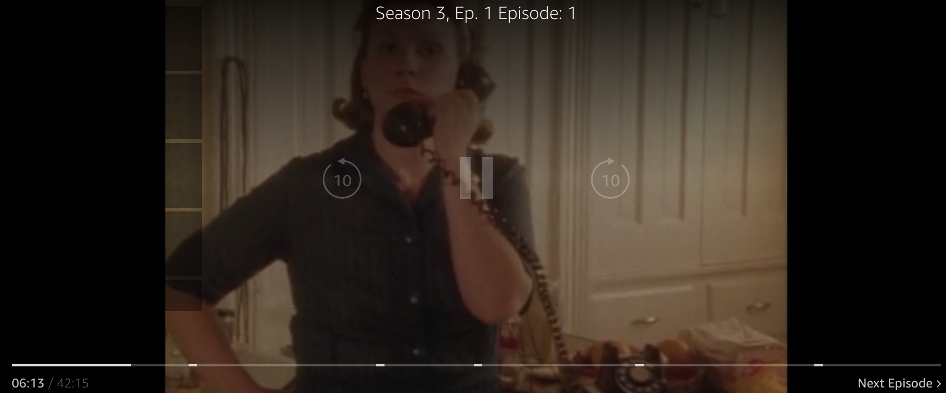

Tangkapan layar MediaTailor yang menunjukkan posisi penandaan di timeline video tempat iklan diputar.

Respons JSON payload pelacakan sisi klien berikut menunjukkan waktu mulai tersedia (jeda iklan) di dalam objek JSON root dari array avails. Pemain menggunakan data ini untuk menunjukkan lokasi jeda iklan di timeline pemain, pada 28 detik.

{
  "avails": [
    {
      "adBreakTrackingEvents": [],
      "adMarkerDuration": null,
      "ads": [...],
      "availId": "7",
      "availProgramDateTime": null,
      "duration": "PT30S",
      "durationInSeconds": 30,
      "meta": null,
      "nonLinearAdsList": [],
      "startTime": "PT28S",
      "startTimeInSeconds": 28
    }
  ],
  "dashAvailabilityStartTime": null,
  "hlsAnchorMediaSequenceNumber": null,
  "nextToken": "UFQxMk0zNC44NjhTXzIwMjMtMDctMjFUMjA6MjM6MDcuNzc1NzE2MzAyWl8x",
  "nonLinearAvails": []
}

Penghitung waktu mundur iklan

Dengan MediaTailor Anda dapat menggunakan penghitung waktu mundur iklan untuk membantu menjaga audiens Anda tetap terlibat selama menonton jeda iklan. Penonton dapat menggunakan timer untuk memahami kapan jeda iklan berakhir dan program mereka dilanjutkan.

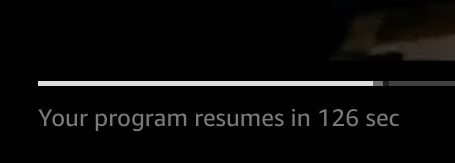

Tangkapan layar MediaTailor menampilkan penghitung waktu mundur iklan, yang memberi tahu penonton waktu yang tersisa hingga program mereka dilanjutkan.

Elemen dalam metadata pelacakan sisi klien yang berperan dalam penghitung waktu mundur iklan adalahstartTime,, startTimeInSecondsduration, dan. durationInSeconds Pemain menggunakan metadata ini, bersama dengan waktu sesi yang telah dilacak secara terpisah, untuk menentukan kapan menampilkan timer dan nilai yang harus dihitung mundur.

Respons JSON payload pelacakan sisi klien berikut menunjukkan informasi yang diperlukan untuk menampilkan penghitung waktu mundur iklan.

{
  "avails": [
    {
      "adBreakTrackingEvents": [],
      "adMarkerDuration": null,
      "ads": [...],
      "availId": "7",
      "availProgramDateTime": null,
      "duration": "PT30S",
      "durationInSeconds": 30,
      "meta": null,
      "nonLinearAdsList": [],
      "startTime": "PT28S",
      "startTimeInSeconds": 28
    }
  ],
  "dashAvailabilityStartTime": null,
  "hlsAnchorMediaSequenceNumber": null,
  "nextToken": "UFQxMk0zNC44NjhTXzIwMjMtMDctMjFUMjA6MjM6MDcuNzc1NzE2MzAyWl8x",
  "nonLinearAvails": []
}

Ketika waktu sesi yang telah berlalu mencapai waktu mulai tersedia, pemain menampilkan penghitung waktu mundur dengan nilai yang cocok dengan durasi yang tersedia. Nilai penghitung waktu mundur menurun seiring berjalannya waktu melampaui waktu mulai yang tersedia.

contoh rumus: Penghitung waktu mundur untuk HLS (langsung dan VOD) dan DASH (VOD)

  • session_start_time= jumlah semua nilai EXT-INF durasi - nilai durasi dari tiga urutan EXT-INF media terbaru

  • nilai pengatur waktu = duration - (session_elapsed_time-startTime)

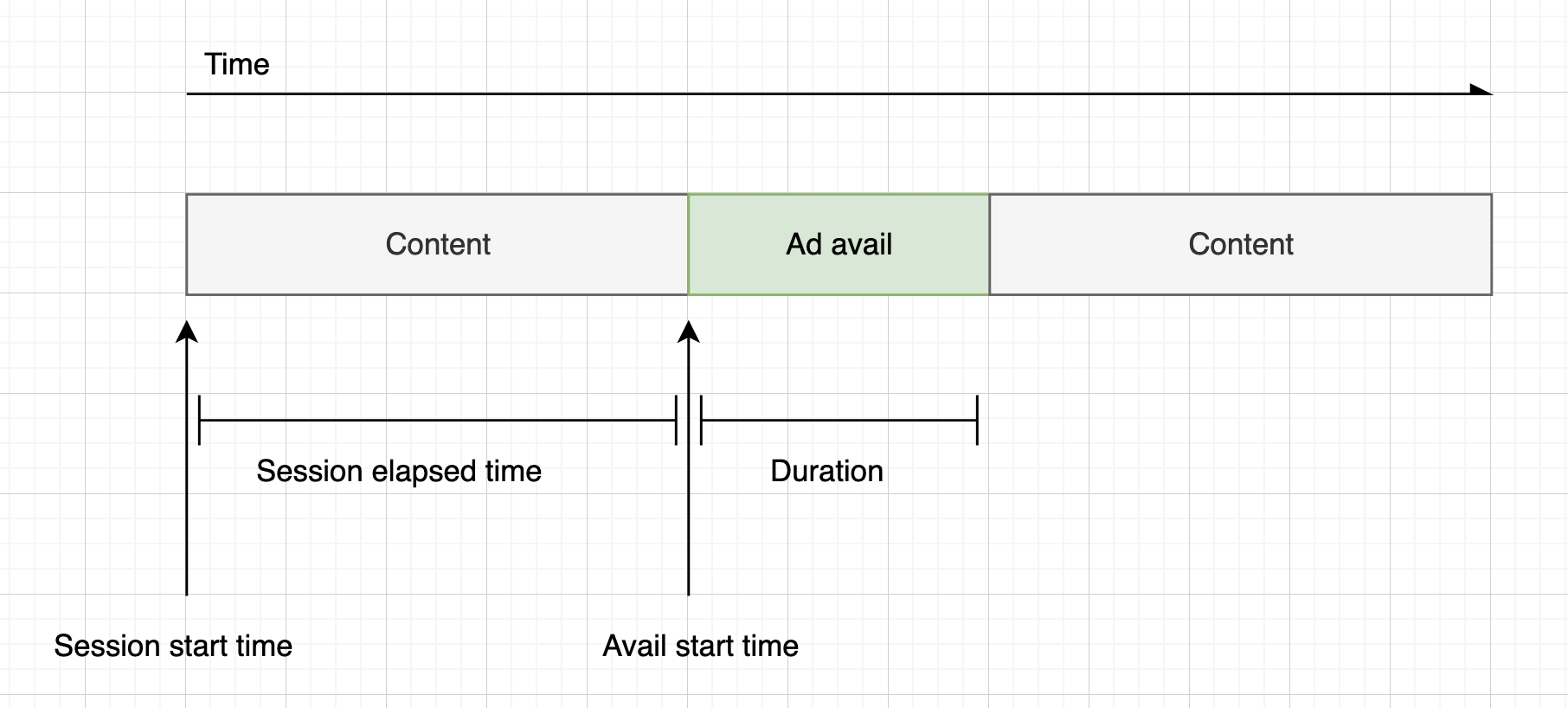

Diagram yang menunjukkan perhitungan penghitung waktu mundur iklan, berdasarkan waktu mulai sesi dan waktu mulai tersedia, untuk manifes HLS (live dan VOD) dan DASH (VOD).
contoh rumus: Penghitung waktu mundur untuk DASH (langsung)

  • session_start_time= (segmen terbaru startTime +duration)/timescale- MPD@suggestedPresentationDelay

  • nilai pengatur waktu = duration - (session_elapsed_time-startTime)

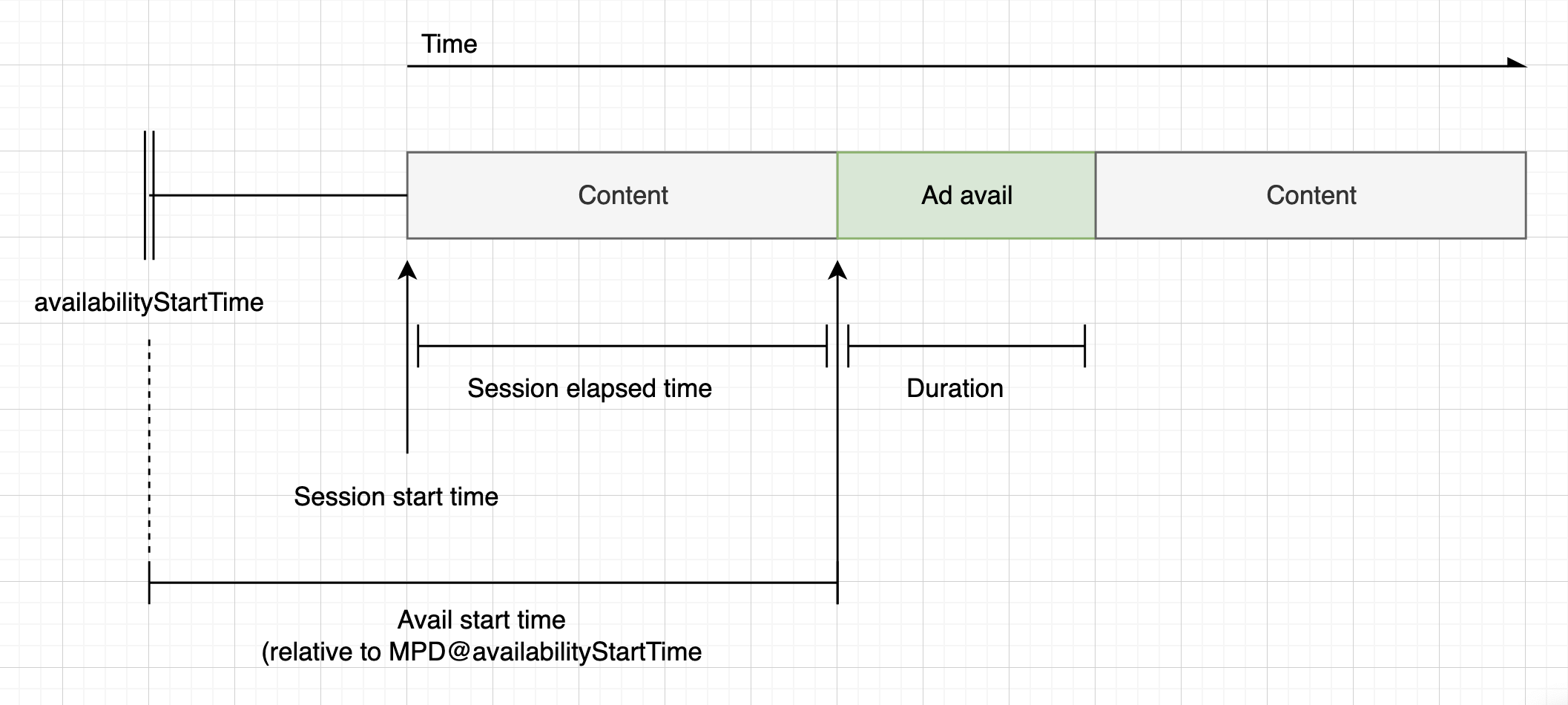

Diagram yang menunjukkan perhitungan penghitung waktu mundur iklan, berdasarkan waktu mulai sesi dan waktu mulai tersedia, untuk manifes DASH langsung.

Iklan yang dapat dilewati

Iklan yang dapat dil ewati adalah tempat iklan yang memungkinkan pemirsa melewatkan beberapa iklan untuk melanjutkan melihat program. Di VAST, Linear@skipOffset atribut mengidentifikasi iklan yang dapat dilewati.

Respons VAST berikut menunjukkan cara menggunakan iklan yang dapat dilewati:

<?xml version="1.0" encoding="UTF-8"?>
<VAST xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="vast.xsd" version="3.0">
  <Ad>
    <InLine>
      ...
      <Creatives>
        <Creative id="1" sequence="1">
          <Linear skipoffset="00:00:05">
            <Duration>00:00:15</Duration>
            <MediaFiles>
              <MediaFile id="EMT" delivery="progressive" width="640" height="360" type="video/mp4" bitrate="143" scalable="true" maintainAspectRatio="true"><![CDATA[https://ads.com/file.mp4]]></MediaFile>
            </MediaFiles>
          </Linear>
        </Creative>
      </Creatives>
      ...
    </InLine>
  </Ad>
</VAST>

Respons JSON payload pelacakan sisi klien berikut menunjukkan metadata iklan di dalam array. ads Array berisi skipOffset nilai yang MediaTailor diperoleh dari respons VAST.

{
  "avails": [
    {
      "adBreakTrackingEvents": [],
      "adMarkerDuration": null,
      "ads": [
        {
          "adId": "1",
          "adParameters": "",
          "adProgramDateTime": "2023-07-31T16:11:40.693Z",
          "adSystem": "2.0",
          "adTitle": "AD-skiing-15",
          "adVerifications": [],
          "companionAds": [...],
          "creativeId": "1",
          "creativeSequence": "1",
          "duration": "PT15.015S",
          "durationInSeconds": 15.015,
          "extensions": [],
          "mediaFiles": {
            "mediaFilesList": [],
            "mezzanine": ""
          },
          "skipOffset": "00:00:05",
          "startTime": "PT9.943S",
          "startTimeInSeconds": 9.943,
          "trackingEvents": [
            {
              "beaconUrls": [
                "https://adserverbeaconing.com/v1/impression"
              ],
              "duration": "PT15.015S",
              "durationInSeconds": 15.015,
              "eventId": "2697726",
              "eventProgramDateTime": null,
              "eventType": "impression",
              "startTime": "PT9.943S",
              "startTimeInSeconds": 9.943
            }
          ],
          "vastAdId": ""
        }
      ],
      "availId": "2697726",
      "availProgramDateTime": "2023-07-31T16:11:40.693Z",
      "duration": "PT15.015S",
      "durationInSeconds": 15.015,
      "meta": null,
      "nonLinearAdsList": [],
      "startTime": "PT9.943S",
      "startTimeInSeconds": 9.943
    }
  ],
  "dashAvailabilityStartTime": null,
  "hlsAnchorMediaSequenceNumber": null,
  "nextToken": "",
  "nonLinearAvails": []
}

Klik iklan

Click-through URI memungkinkan pengiklan mengukur seberapa sukses iklan dalam menarik perhatian pemirsa. Setelah penonton mengklik bingkai video aktif dari iklan yang sedang berlangsung, browser web membuka URI untuk halaman beranda atau halaman arahan kampanye pengiklan. Pengembang pemain menentukan perilaku klik, seperti melapisi tombol atau label pada video iklan, dengan pesan untuk mengklik untuk mempelajari lebih lanjut. Pengembang pemain sering menjeda video iklan setelah pemirsa mengklik bingkai video aktif.

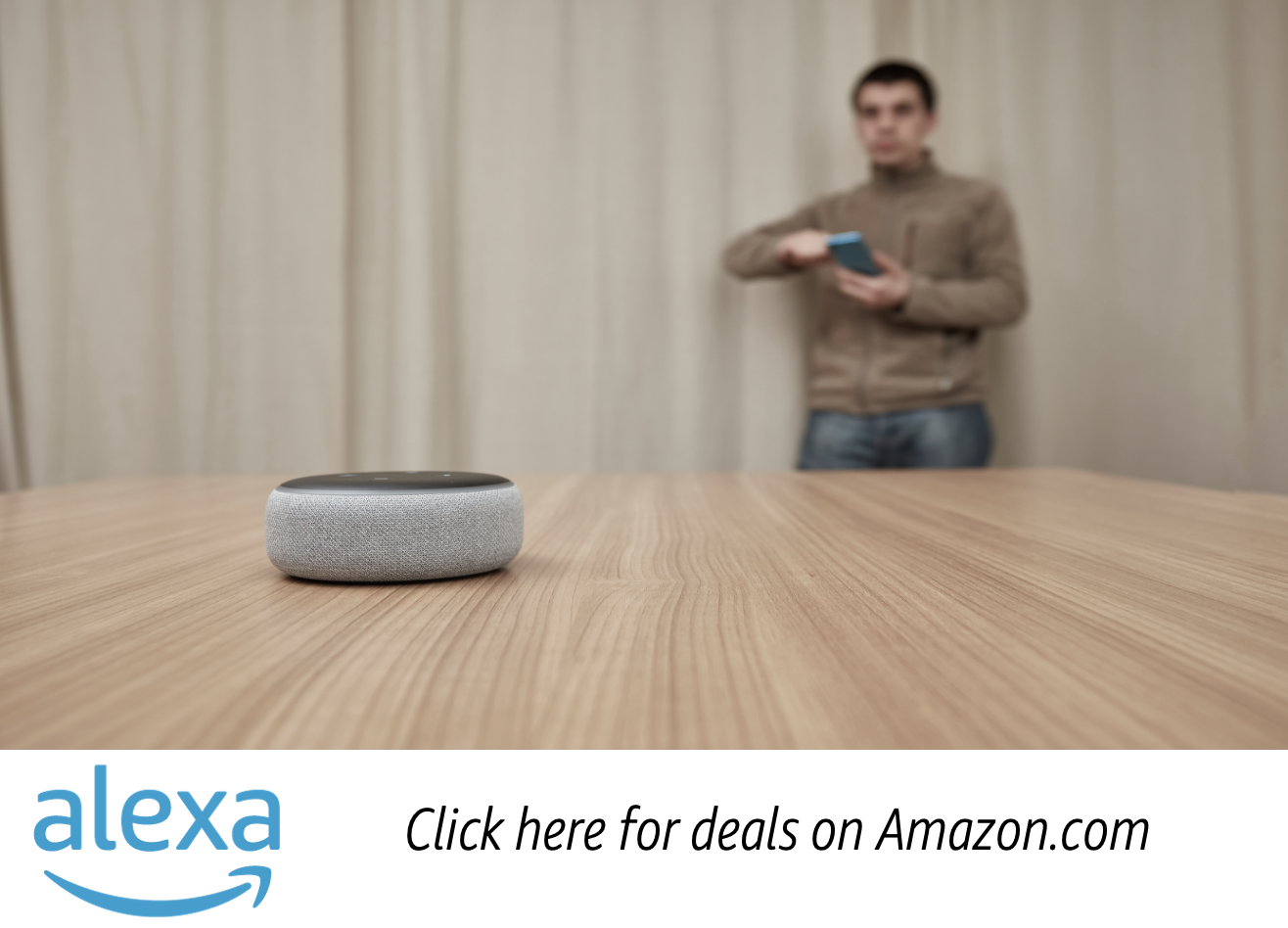

Screenshot dari klik iklan di pemutar video. Pemirsa mengklik bingkai video. Pemutar menjeda video, lalu membuka browser web untuk membawa pemirsa ke halaman beranda pengiklan atau halaman arahan kampanye.

MediaTailor dapat mengurai dan menyediakan URL peristiwa klik-tayang video linier yang dikembalikan dalam respons VAST. Respons VAST berikut menunjukkan contoh klik iklan.

<?xml version="1.0" encoding="UTF-8"?>
<VAST xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="vast.xsd" version="3.0">
  <Ad>
    <InLine>
      ...
      <Creatives>
        <Creative id="1" sequence="1">
          <Linear>
            <Duration>00:00:15</Duration>
            <MediaFiles>
              <MediaFile id="EMT" delivery="progressive" width="1280" height="720" type="video/mp4" bitrate="143" scalable="true" maintainAspectRatio="true"><![CDATA[https://ads.com/file.mp4]]></MediaFile>
            </MediaFiles>
            <VideoClicks>
              <ClickThrough id="EMT"><![CDATA[https://aws.amazon.com]]></ClickThrough>
              <ClickTracking id="EMT"><![CDATA[https://myads.com/beaconing/event=clicktracking]]></ClickTracking>
            </VideoClicks>
          </Linear>
        </Creative>
      </Creatives>
      ...
    </InLine>
  </Ad>
</VAST>

Respons JSON payload pelacakan sisi klien berikut menunjukkan cara MediaTailor menampilkan URL click-through dan click-tracking di dalam array. trackingEvents Jenis clickThrough acara mewakili iklan klik-tayang, dan jenis clickTracking acara mewakili URL pelacakan klik.

{
  "avails": [
    {
      "adBreakTrackingEvents": [],
      "adMarkerDuration": null,
      "ads": [
        {
          "adId": "1",
          "adParameters": "",
          "adProgramDateTime": "2023-07-31T16:53:40.577Z",
          "adSystem": "2.0",
          "adTitle": "1",
          "adVerifications": [],
          "companionAds": [],
          "creativeId": "00006",
          "creativeSequence": "1",
          "duration": "PT14.982S",
          "durationInSeconds": 14.982,
          "extensions": [],
          "mediaFiles": {
            "mediaFilesList": [],
            "mezzanine": ""
          },
          "skipOffset": null,
          "startTime": "PT39.339S",
          "startTimeInSeconds": 39.339,
          "trackingEvents": [
            {
              "beaconUrls": [
                "https://myads.com/beaconing/event=impression"
              ],
              "duration": "PT14.982S",
              "durationInSeconds": 14.982,
              "eventId": "2698188",
              "eventProgramDateTime": null,
              "eventType": "impression",
              "startTime": "PT39.339S",
              "startTimeInSeconds": 39.339
            },
            {
              "beaconUrls": [
                "https://aws.amazon.com"
              ],
              "duration": "PT14.982S",
              "durationInSeconds": 14.982,
              "eventId": "2698188",
              "eventProgramDateTime": null,
              "eventType": "clickThrough",
              "startTime": "PT39.339S",
              "startTimeInSeconds": 39.339
            },
            {
              "beaconUrls": [
                "https://myads.com/beaconing/event=clicktracking"
              ],
              "duration": "PT14.982S",
              "durationInSeconds": 14.982,
              "eventId": "2698795",
              "eventProgramDateTime": null,
              "eventType": "clickTracking",
              "startTime": "PT39.339S",
              "startTimeInSeconds": 39.339
            }
          ],
          "vastAdId": ""
        }
      ],
      "availId": "2698188",
      "availProgramDateTime": "2023-07-31T16:53:40.577Z",
      "duration": "PT14.982S",
      "durationInSeconds": 14.982,
      "meta": null,
      "nonLinearAdsList": [],
      "startTime": "PT39.339S",
      "startTimeInSeconds": 39.339
    }
  ],
  "dashAvailabilityStartTime": null,
  "hlsAnchorMediaSequenceNumber": null,
  "nextToken": "UFQzOS4zMzlTXzIwMjMtMDctMzFUMTY6NTQ6MDQuODA1Mzk2NTI5Wl8x",
  "nonLinearAvails": []
}

Iklan pendamping

Iklan pen damping muncul di samping iklan linier. Gunakan iklan pendamping untuk meningkatkan efektivitas spot iklan dengan menampilkan informasi produk, logo, dan merek. Iklan display dapat menampilkan kode Respon Cepat (QR) dan area yang dapat diklik untuk mempromosikan keterlibatan audiens.

MediaTailor mendukung iklan pendamping dalam respons VAST. Itu dapat melewati metadata dariStaticResource,iFrameResource, dan HTMLResource node, masing-masing.

Respons VAST berikut menunjukkan contoh lokasi dan format iklan linier dan iklan pendamping.

<?xml version="1.0" encoding="UTF-8"?>
<VAST xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="vast.xsd" version="3.0">
  <Ad>
    <InLine>
      ...
      <Creatives>
        <Creative id="1" sequence="1">
          <Linear>
            <Duration>00:00:10</Duration>
            <MediaFiles>
              <MediaFile id="EMT" delivery="progressive" width="640" height="360" type="video/mp4" bitrate="143" scalable="true" maintainAspectRatio="true"><![CDATA[https://ads.com/file.mp4]]></MediaFile>
            </MediaFiles>
          </Linear>
        </Creative>
        <Creative id="2" sequence="1">
          <CompanionAds>
            <Companion id="2" width="300" height="250">
              <StaticResource creativeType="image/png"><![CDATA[https://emt.com/companion/9973499273]]></StaticResource>
              <TrackingEvents>
                <Tracking event="creativeView"><![CDATA[https://beacon.com/1]]></Tracking>
              </TrackingEvents>
              <CompanionClickThrough><![CDATA[https://beacon.com/2]]></CompanionClickThrough>
            </Companion>
            <Companion id="3" width="728" height="90">
              <StaticResource creativeType="image/png"><![CDATA[https://emt.com/companion/1238901823]]></StaticResource>
              <TrackingEvents>
                <Tracking event="creativeView"><![CDATA[https://beacon.com/3]]></Tracking>
              </TrackingEvents>
              <CompanionClickThrough><![CDATA[https://beacon.com/4]]></CompanionClickThrough>
            </Companion>
          </CompanionAds>
        </Creative>
      </Creatives>
      ...
    </InLine>
  </Ad>
</VAST>

Data muncul dalam respons pelacakan sisi klien dalam daftar. /avail/x/ads/y/companionAds Setiap iklan linier dapat berisi hingga 6 iklan pendamping. Seperti yang ditunjukkan pada contoh di bawah ini, iklan pendamping muncul dalam daftar

catatan

Sebagai praktik terbaik, pengembang aplikasi harus menerapkan logika untuk secara eksplisit menghapus atau membongkar iklan pendamping di akhir kreatif.

{
  "avails": [
    {
      "adBreakTrackingEvents": [],
      "adMarkerDuration": null,
      "ads": [
        {
          "adId": "0",
          "adParameters": "",
          "adProgramDateTime": null,
          "adSystem": "EMT",
          "adTitle": "sample",
          "adVerifications": [],
          "companionAds": [
            {
              "adParameters": null,
              "altText": null,
              "attributes": {
                "adSlotId": null,
                "apiFramework": null,
                "assetHeight": null,
                "assetWidth": null,
                "expandedHeight": null,
                "expandedWidth": null,
                "height": "250",
                "id": "2",
                "pxratio": null,
                "renderingMode": null,
                "width": "300"
              },
              "companionClickThrough": "https://beacon.com/2",
              "companionClickTracking": null,
              "htmlResource": null,
              "iFrameResource": null,
              "sequence": "1",
              "staticResource": "https://emt.com/companion/9973499273",
              "trackingEvents": [
                {
                  "beaconUrls": [
                    "https://beacon.com/1"
                  ],
                  "eventType": "creativeView"
                }
              ]
            },
            {
              "adParameters": null,
              "altText": null,
              "attributes": {
                "adSlotId": null,
                "apiFramework": null,
                "assetHeight": null,
                "assetWidth": null,
                "expandedHeight": null,
                "expandedWidth": null,
                "height": "90",
                "id": "3",
                "pxratio": null,
                "renderingMode": null,
                "width": "728"
              },
              "companionClickThrough": "https://beacon.com/4",
              "companionClickTracking": null,
              "htmlResource": null,
              "iFrameResource": null,
              "sequence": "1",
              "staticResource": "https://emt.com/companion/1238901823",
              "trackingEvents": [
                {
                  "beaconUrls": [
                    "https://beacon.com/3"
                  ],
                  "eventType": "creativeView"
                }
              ]
            }
          ],
          "creativeId": "1",
          "creativeSequence": "1",
          "duration": "PT10S",
          "durationInSeconds": 10,
          "extensions": [],
          "mediaFiles": {
            "mediaFilesList": [],
            "mezzanine": ""
          },
          "skipOffset": null,
          "startTime": "PT0S",
          "startTimeInSeconds": 0,
          "trackingEvents": [
            {
              "beaconUrls": [
                "https://beacon.com/impression/1"
              ],
              "duration": "PT10S",
              "durationInSeconds": 10,
              "eventId": "0",
              "eventProgramDateTime": null,
              "eventType": "impression",
              "startTime": "PT0S",
              "startTimeInSeconds": 0
            }
          ],
          "vastAdId": ""
        }
      ],
      "availId": "0",
      "availProgramDateTime": null,
      "duration": "PT10S",
      "durationInSeconds": 10,
      "meta": null,
      "nonLinearAdsList": [],
      "startTime": "PT0S",
      "startTimeInSeconds": 0
    }
  ],
  "dashAvailabilityStartTime": null,
  "hlsAnchorMediaSequenceNumber": null,
  "nextToken": "UFQxMFNfMjAyMy0wNy0wNlQyMToxMDowOC42NzQ4NDA1NjJaXzE%3D",
  "nonLinearAvails": []
}

Iklan interaktif (SIMID)

SecureInteractive Media Interface Definition (SIMID) adalah standar untuk iklan interaktif yang diperkenalkan dalam standar VAST 4.x dari Biro Periklanan Interaktif (IAB). SIMID memisahkan pemuatan elemen interaktif dari kreatif linier utama pada pemain, merujuk keduanya dalam respons VAST. MediaTailor menjahit kreatif utama untuk mempertahankan pengalaman pemutaran, dan menempatkan metadata untuk komponen interaktif dalam respons pelacakan sisi klien.

Dalam contoh berikut respons VAST 4, muatan SIMID ada di dalam node. InteractiveCreativeFile

<?xml version="1.0"?>
<VAST xmlns:xsi="https://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="vast.xsd" version="3.0">
  <Ad id="1234567">
    <InLine>
      <AdSystem>SampleAdSystem</AdSystem>
      <AdTitle>Linear SIMID Example</AdTitle>
      <Description>SIMID example</Description>
      <Error>https://www.beacons.com/error</Error>
      <Impression>https://www.beacons.com/impression</Impression>
      <Creatives>
        <Creative sequence="1">
          <Linear>
            <Duration>00:00:15</Duration>
            <TrackingEvents>
                ...
            </TrackingEvents>
            <VideoClicks>
              <ClickThrough id="123">https://aws.amazon.com</ClickThrough>
              <ClickTracking id="123">https://www.beacons.com/click</ClickTracking>
            </VideoClicks>
            <MediaFiles>
              <MediaFile delivery="progressive" type="video/mp4">
                                https://interactive-ads.com/interactive-media-ad-sample/media/file.mp4
                            </MediaFile>
              <InteractiveCreativeFile type="text/html" apiFramework="SIMID" variableDuration="true">
                                https://interactive-ads.com/interactive-media-ad-sample/sample_simid.html
                            </InteractiveCreativeFile>
            </MediaFiles>
          </Linear>
        </Creative>
      </Creatives>
    </InLine>
  </Ad>
</VAST>

Dalam respons VAST 3 berikut, muatan SIMID ada di dalam node. Extensions

<?xml version="1.0"?>
<VAST xmlns:xsi="https://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="vast.xsd" version="3.0">
  <Ad id="1234567">
    <InLine>
      <AdSystem>SampleAdSystem</AdSystem>
      <AdTitle>Linear SIMID Example</AdTitle>
      <Description>SIMID example</Description>
      <Impression>https://www.beacons.com/impression</Impression>
      <Creatives>
        <Creative id="1" sequence="1">
          <Linear>
            <Duration>00:00:15</Duration>
            <TrackingEvents>
                ...
            </TrackingEvents>
            <VideoClicks>
              <ClickThrough id="123">https://aws.amazon.com</ClickThrough>
              <ClickTracking id="123">https://myads.com/beaconing/event=clicktracking</ClickTracking>
            </VideoClicks>
            <MediaFiles>
              <MediaFile delivery="progressive" type="video/mp4">
                                https://interactive-ads.com/interactive-media-ad-sample/media/file.mp4
                            </MediaFile>
            </MediaFiles>
          </Linear>
        </Creative>
      </Creatives>
      <Extensions>
        <Extension type="InteractiveCreativeFile">
          <InteractiveCreativeFile type="text/html" apiFramework="SIMID" variableDuration="true">
            https://interactive-ads.com/interactive-media-ad-sample/sample_simid.html
          </InteractiveCreativeFile>
        </Extension>
      </Extensions>
    </InLine>
  </Ad>
</VAST>

Dalam respons pelacakan sisi klien berikut, data SIMID muncul dalam daftar. /avails/x/ads/y/extensions

{
  "avails": [
    {
      "adBreakTrackingEvents": [],
      "adMarkerDuration": null,
      "ads": [
        {
          "adId": "1",
          "adParameters": "",
          "adProgramDateTime": "2023-07-31T16:53:40.577Z",
          "adSystem": "2.0",
          "adTitle": "Linear SIMID Example",
          "adVerifications": [],
          "companionAds": [],
          "creativeId": "1",
          "creativeSequence": "1",
          "duration": "PT14.982S",
          "durationInSeconds": 14.982,
          "extensions": [
            {
              "content": "<InteractiveCreativeFile type=\"text/html\" apiFramework=\"SIMID\" variableDuration=\"true\">\nhttps://interactive-ads.com/interactive-media-ad-sample/sample_simid.html</InteractiveCreativeFile>",
              "type": "InteractiveCreativeFile"
            }
          ],
          "mediaFiles": {
            "mediaFilesList": [],
            "mezzanine": ""
          },
          "skipOffset": null,
          "startTime": "PT39.339S",
          "startTimeInSeconds": 39.339,
          "trackingEvents": [
            {
              "beaconUrls": [
                "https://myads.com/beaconing/event=impression"
              ],
              "duration": "PT14.982S",
              "durationInSeconds": 14.982,
              "eventId": "2698188",
              "eventProgramDateTime": null,
              "eventType": "impression",
              "startTime": "PT39.339S",
              "startTimeInSeconds": 39.339
            },
            {
              "beaconUrls": [
                "https://aws.amazon.com"
              ],
              "duration": "PT14.982S",
              "durationInSeconds": 14.982,
              "eventId": "2698188",
              "eventProgramDateTime": null,
              "eventType": "clickThrough",
              "startTime": "PT39.339S",
              "startTimeInSeconds": 39.339
            },
            {
              "beaconUrls": [
                "https://myads.com/beaconing/event=clicktracking"
              ],
              "duration": "PT14.982S",
              "durationInSeconds": 14.982,
              "eventId": "2698795",
              "eventProgramDateTime": null,
              "eventType": "clickTracking",
              "startTime": "PT39.339S",
              "startTimeInSeconds": 39.339
            }
          ],
          "vastAdId": ""
        }
      ],
      "availId": "2698188",
      "availProgramDateTime": "2023-07-31T16:53:40.577Z",
      "duration": "PT14.982S",
      "durationInSeconds": 14.982,
      "meta": null,
      "nonLinearAdsList": [],
      "startTime": "PT39.339S",
      "startTimeInSeconds": 39.339
    }
  ],
  "dashAvailabilityStartTime": null,
  "hlsAnchorMediaSequenceNumber": null,
  "nextToken": "UFQzOS4zMzlTXzIwMjMtMDctMzFUMTY6NTQ6MDQuODA1Mzk2NTI5Wl8x",
  "nonLinearAvails": []
}

Iklan interaktif (VPAID)

Definisi Antarmuka Iklan Pemut ar Video (VPAID) menentukan protokol antara iklan dan pemutar video yang memungkinkan interaktivitas iklan dan fungsionalitas lainnya. Untuk streaming langsung, MediaTailor mendukung format VPAID dengan menjahit segmen batu tulis selama durasi tersedia, dan menempatkan metadata untuk iklan VPAID dalam respons pelacakan sisi klien yang digunakan pemutar video. Pemain mengunduh file VPAID dan memainkan kreatif linier dan mengeksekusi skrip klien. Pemain seharusnya tidak pernah memainkan segmen batu tulis.

catatan

VPAID tidak digunakan lagi pada VAST 4.1.

Diagram pemutaran iklan VPAID. MediaTailor menjahit segmen batu tulis untuk durasi yang tersedia di timeline konten. Pemain beralih ke aset VPAID selama durasi yang tersedia.

Contoh berikut menunjukkan konten VPAID dalam respons VAST.

<?xml version="1.0"?>
<VAST xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="vast.xsd" version="3.0">
  <Ad id="1234567">
    <InLine>
      <AdSystem>GDFP</AdSystem>
      <AdTitle>VPAID</AdTitle>
      <Description>Vpaid Linear Video Ad</Description>
      <Error>http://www.example.com/error</Error>
      <Impression>http://www.example.com/impression</Impression>
      <Creatives>
        <Creative sequence="1">
          <Linear>
            <Duration>00:00:00</Duration>
            <TrackingEvents>
              <Tracking event="start">http://www.example.com/start</Tracking>
              <Tracking event="firstQuartile">http://www.example.com/firstQuartile</Tracking>
              <Tracking event="midpoint">http://www.example.com/midpoint</Tracking>
              <Tracking event="thirdQuartile">http://www.example.com/thirdQuartile</Tracking>
              <Tracking event="complete">http://www.example.com/complete</Tracking>
              <Tracking event="mute">http://www.example.com/mute</Tracking>
              <Tracking event="unmute">http://www.example.com/unmute</Tracking>
              <Tracking event="rewind">http://www.example.com/rewind</Tracking>
              <Tracking event="pause">http://www.example.com/pause</Tracking>
              <Tracking event="resume">http://www.example.com/resume</Tracking>
              <Tracking event="fullscreen">http://www.example.com/fullscreen</Tracking>
              <Tracking event="creativeView">http://www.example.com/creativeView</Tracking>
              <Tracking event="acceptInvitation">http://www.example.com/acceptInvitation</Tracking>
            </TrackingEvents>
            <AdParameters><![CDATA[ {"videos":[ {"url":"https://my-ads.com/interactive-media-ads/media/media_linear_VPAID.mp4","mimetype":"video/mp4"}]} ]]></AdParameters>
            <VideoClicks>
              <ClickThrough id="123">http://google.com</ClickThrough>
              <ClickTracking id="123">http://www.example.com/click</ClickTracking>
            </VideoClicks>
            <MediaFiles>
              <MediaFile delivery="progressive" apiFramework="VPAID" type="application/javascript" width="640" height="480"> https://googleads.github.io/googleads-ima-html5/vpaid/linear/VpaidVideoAd.js </MediaFile>
            </MediaFiles>
          </Linear>
        </Creative>
      </Creatives>
    </InLine>
  </Ad>
</VAST>

Contoh berikut menunjukkan informasi pelacakan.

{
  "avails": [
    {
      "adBreakTrackingEvents": [],
      "adMarkerDuration": null,
      "ads": [
        {
          "adId": "1",
          "adParameters": "",
          "adProgramDateTime": "2023-07-31T16:53:40.577Z",
          "adSystem": "2.0",
          "adTitle": "1",
          "adVerifications": [],
          "companionAds": [],
          "creativeId": "00006",
          "creativeSequence": "1",
          "duration": "PT14.982S",
          "durationInSeconds": 14.982,
          "extensions": [],
          "mediaFiles": {
            "mediaFilesList": [],
            "mezzanine": ""
          },
          "skipOffset": null,
          "startTime": "PT39.339S",
          "startTimeInSeconds": 39.339,
          "trackingEvents": [
            {
              "beaconUrls": [
                "https://myads.com/beaconing/event=impression"
              ],
              "duration": "PT14.982S",
              "durationInSeconds": 14.982,
              "eventId": "2698188",
              "eventProgramDateTime": null,
              "eventType": "impression",
              "startTime": "PT39.339S",
              "startTimeInSeconds": 39.339
            },
            {
              "beaconUrls": [
                "https://aws.amazon.com"
              ],
              "duration": "PT14.982S",
              "durationInSeconds": 14.982,
              "eventId": "2698188",
              "eventProgramDateTime": null,
              "eventType": "clickThrough",
              "startTime": "PT39.339S",
              "startTimeInSeconds": 39.339
            },
            {
              "beaconUrls": [
                "https://myads.com/beaconing/event=clicktracking"
              ],
              "duration": "PT14.982S",
              "durationInSeconds": 14.982,
              "eventId": "2698795",
              "eventProgramDateTime": null,
              "eventType": "clickTracking",
              "startTime": "PT39.339S",
              "startTimeInSeconds": 39.339
            }
          ],
          "vastAdId": ""
        }
      ],
      "availId": "2698188",
      "availProgramDateTime": "2023-07-31T16:53:40.577Z",
      "duration": "PT14.982S",
      "durationInSeconds": 14.982,
      "meta": null,
      "nonLinearAdsList": [],
      "startTime": "PT39.339S",
      "startTimeInSeconds": 39.339
    }
  ],
  "dashAvailabilityStartTime": null,
  "hlsAnchorMediaSequenceNumber": null,
  "nextToken": "UFQzOS4zMzlTXzIwMjMtMDctMzFUMTY6NTQ6MDQuODA1Mzk2NTI5Wl8x",
  "nonLinearAvails": []
}{
  "avails": [
    {
      "adBreakTrackingEvents": [],
      "adMarkerDuration": null,
      "ads": [
        {
          "adId": "2922274",
          "adParameters": "",
          "adProgramDateTime": "2023-08-14T19:49:53.998Z",
          "adSystem": "Innovid Ads",
          "adTitle": "VPAID",
          "adVerifications": [],
          "companionAds": [],
          "creativeId": "",
          "creativeSequence": "",
          "duration": "PT16.016S",
          "durationInSeconds": 16.016,
          "extensions": [],
          "mediaFiles": {
            "mediaFilesList": [
              {
                "apiFramework": "VPAID",
                "bitrate": 0,
                "codec": null,
                "delivery": "progressive",
                "height": 9,
                "id": "",
                "maintainAspectRatio": false,
                "maxBitrate": 0,
                "mediaFileUri": "http://my-ads.com/mobileapps/js/vpaid/1h41kg?cb=178344c0-8e67-281a-58ca-962e4987cd60&deviceid=&ivc=",
                "mediaType": "application/javascript",
                "minBitrate": 0,
                "scalable": false,
                "width": 16
              }
            ],
            "mezzanine": "http://my-ads.com/mobileapps/js/vpaid/1h41kg?cb=178344c0-8e67-281a-58ca-962e4987cd60&deviceid=&ivc="
          },
          "skipOffset": null,
          "startTime": "PT8M42.289S",
          "startTimeInSeconds": 522.289,
          "trackingEvents": [
            {
              "beaconUrls": [
                "about:blank"
              ],
              "duration": "PT16.016S",
              "durationInSeconds": 16.016,
              "eventId": "2922274",
              "eventProgramDateTime": null,
              "eventType": "impression",
              "startTime": "PT8M42.289S",
              "startTimeInSeconds": 522.289
            }
          ],
          "vastAdId": "1h41kg"
        }
      ],
      "availId": "2922274",
      "availProgramDateTime": "2023-08-14T19:49:53.998Z",
      "duration": "PT16.016S",
      "durationInSeconds": 16.016,
      "meta": null,
      "nonLinearAdsList": [],
      "startTime": "PT8M42.289S",
      "startTimeInSeconds": 522.289
    }
  ],
  "dashAvailabilityStartTime": null,
  "hlsAnchorMediaSequenceNumber": null,
  "nextToken": "UFQ4TTQyLjI4OVNfMjAyMy0wOC0xNFQxOTo1MDo0MS4zOTc5MjAzODVaXzE%3D",
  "nonLinearAvails": []
}

Ikon untuk Google Mengapa Iklan Ini (WTA)

AdChoicesadalah standar industri yang memberikan informasi kepada pemirsa tentang iklan yang mereka lihat, termasuk bagaimana iklan tersebut ditargetkan kepada mereka.

Logo Google Mengapa Iklan Ini (WTA). WTA memberi tahu pemirsa tentang iklan yang mereka lihat, termasuk bagaimana iklan tersebut ditargetkan kepada mereka.

API pelac MediaTailor akan sisi klien mendukung metadata ikon yang dibawa dalam node ekstensi VAST dari respons VAST. Untuk informasi selengkapnya tentang WTA dalam respons VAST, lihat contoh respons XML VAST ini.

catatan

MediaTailor saat ini mendukung VAST versi 3 saja.

<VAST>
    <Ad>
    <InLine>
       ...
      <Extensions>
        <Extension type="IconClickFallbackImages">
          <IconClickFallbackImages program="GoogleWhyThisAd">
            <IconClickFallbackImage width="400" height="150">
              <AltText>Alt icon fallback</AltText>
              <StaticResource creativeType="image/png"><![CDATA[https://storage.googleapis.com/interactive-media-ads/images/wta_dialog.png]]></StaticResource>
            </IconClickFallbackImage>
          </IconClickFallbackImages>
          <IconClickFallbackImages program="AdChoices">
            <IconClickFallbackImage width="400" height="150">
              <AltText>Alt icon fallback</AltText>
              <StaticResource creativeType="image/png"><![CDATA[https://storage.googleapis.com/interactive-media-ads/images/wta_dialog.png?size=1x]]></StaticResource>
            </IconClickFallbackImage>
            <IconClickFallbackImage width="800" height="300">
              <AltText>Alt icon fallback</AltText>
              <StaticResource creativeType="image/png"><![CDATA[https://storage.googleapis.com/interactive-media-ads/images/wta_dialog.png?size=2x]]></StaticResource>
            </IconClickFallbackImage>
          </IconClickFallbackImages>
        </Extension>
      </Extensions>
    </InLine>
  </Ad>
</VAST>

Contoh berikut menunjukkan respons pelacakan sisi klien dalam daftar. /avails/x/ads/y/extensions

{
  "avails": [
    {
      "adBreakTrackingEvents": [],
      "adMarkerDuration": null,
      "ads": [
        {
          "adId": "0",
          "adParameters": "",
          "adProgramDateTime": null,
          "adSystem": "GDFP",
          "adTitle": "Google Why This Ad VAST 3 Sample",
          "adVerifications": [],
          "companionAds": [],
          "creativeId": "7891011",
          "creativeSequence": "1",
          "duration": "PT10S",
          "durationInSeconds": 10,
          "extensions": [
            {
              "content": "<IconClickFallbackImages program=\"GoogleWhyThisAd\">
                          <IconClickFallbackImage height=\"150\" width=\"400\">
                          <AltText>Alt icon fallback</AltText>
                          <StaticResource creativeType=\"image/png\"><![CDATA[https://storage.googleapis.com/interactive-media-ads/images/wta_dialog.png]]>
                          </StaticResource>
                          </IconClickFallbackImage>
                          </IconClickFallbackImages>
                          <IconClickFallbackImages program=\"AdChoices\">
                          <IconClickFallbackImage height=\"150\" width=\"400\">
                          <AltText>Alt icon fallback</AltText>
                          <StaticResource creativeType=\"image/png\"><![CDATA[https://storage.googleapis.com/interactive-media-ads/images/wta_dialog.png?size=1x]]>
                          </StaticResource>
                          </IconClickFallbackImage>
                          <IconClickFallbackImage height=\"300\" width=\"800\">
                          <AltText>Alt icon fallback</AltText>
                          <StaticResource creativeType=\"image/png\"><![CDATA[https://storage.googleapis.com/interactive-media-ads/images/wta_dialog.png?size=2x]]>
                          </StaticResource>
                          </IconClickFallbackImage>
                          </IconClickFallbackImages>",
              "type": "IconClickFallbackImages"
            }
          ],
          "mediaFiles": {
            "mediaFilesList": [],
            "mezzanine": ""
          },
          "skipOffset": "00:00:03",
          "startTime": "PT0S",
          "startTimeInSeconds": 0,
          "trackingEvents": [
            {
              "beaconUrls": [
                "https://example.com/view"
              ],
              "duration": "PT10S",
              "durationInSeconds": 10,
              "eventId": "0",
              "eventProgramDateTime": null,
              "eventType": "impression",
              "startTime": "PT0S",
              "startTimeInSeconds": 0
            }
          ],
          "vastAdId": "123456"
        }
      ],
      "availId": "0",
      "availProgramDateTime": null,
      "duration": "PT10S",
      "durationInSeconds": 10,
      "meta": null,
      "nonLinearAdsList": [],
      "startTime": "PT0S",
      "startTimeInSeconds": 0
    }
  ],
  "dashAvailabilityStartTime": null,
  "hlsAnchorMediaSequenceNumber": null,
  "nextToken": "UFQxMFNfMjAyMy0wNy0wNlQyMDo0MToxNy45NDE4MDM0NDhaXzE%3D",
  "nonLinearAvails": []
}
