Getting started with on-demand evaluation

Follow these steps to set up and run your first on-demand evaluation.

Prerequisites

To use AgentCore Evaluations OnDemand Evaluation features, you need:

Supported frameworks

AgentCore Evaluations currently supports the following agentic frameworks and instrumentation libraries:

Step 1: Create and deploy your agent

Create and deploy your agent by following the Get Started guide for AgentCore Runtime. You can find additional examples in the AgentCore Evaluations Samples.

Step 2: Invoke your agent

Invoke your agent using the following command and view the traces, sessions and metrics on GenAI Observability dashboard on CloudWatch.

Example invoke_agent.py

import boto3
import json
import uuid

region = "region-code"
ace_demo_agent_arn = "agent-arn from step-2"

agent_core_client = boto3.client('bedrock-agentcore', region_name=region)

text_to_analyze = "Sample text to test agent for agentcore evaluations demo"

payload = json.dumps({
    "prompt": f"Can you analyze this text and tell me about its statistics: {text_to_analyze}"
})

# random session-id, you can set your own here
session_id = "test-ace-demo-session-18a1dba0-62a0-462g"

response = agent_core_client.invoke_agent_runtime(
    agentRuntimeArn=ace_demo_agent_arn,
    runtimeSessionId=session_id,
    payload=payload,
    qualifier="DEFAULT"
)

response_body = response['response'].read()
response_data = json.loads(response_body)
print("Agent Response:", response_data)
print("SessionId:", session_id)

Step 3: Evaluate agent

Once you have made a few invocations to your agent, you are ready to evaluate it. For evaluations we require:

Code samples for Starter Toolkit, AgentCore SDK, and AWS SDK

The following code samples demonstrate how to run on-demand evaluations using different development approaches. Choose the method that best fits your development environment and preferences.

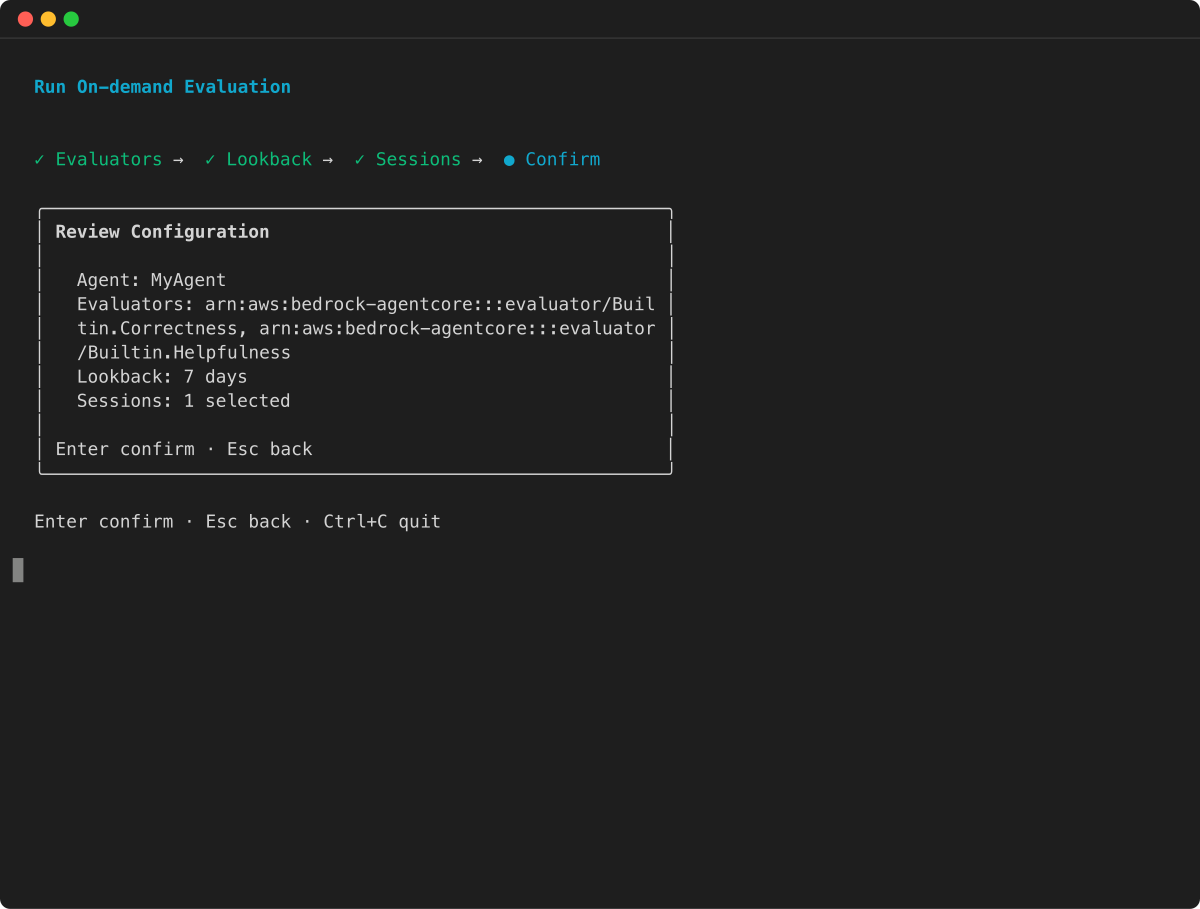

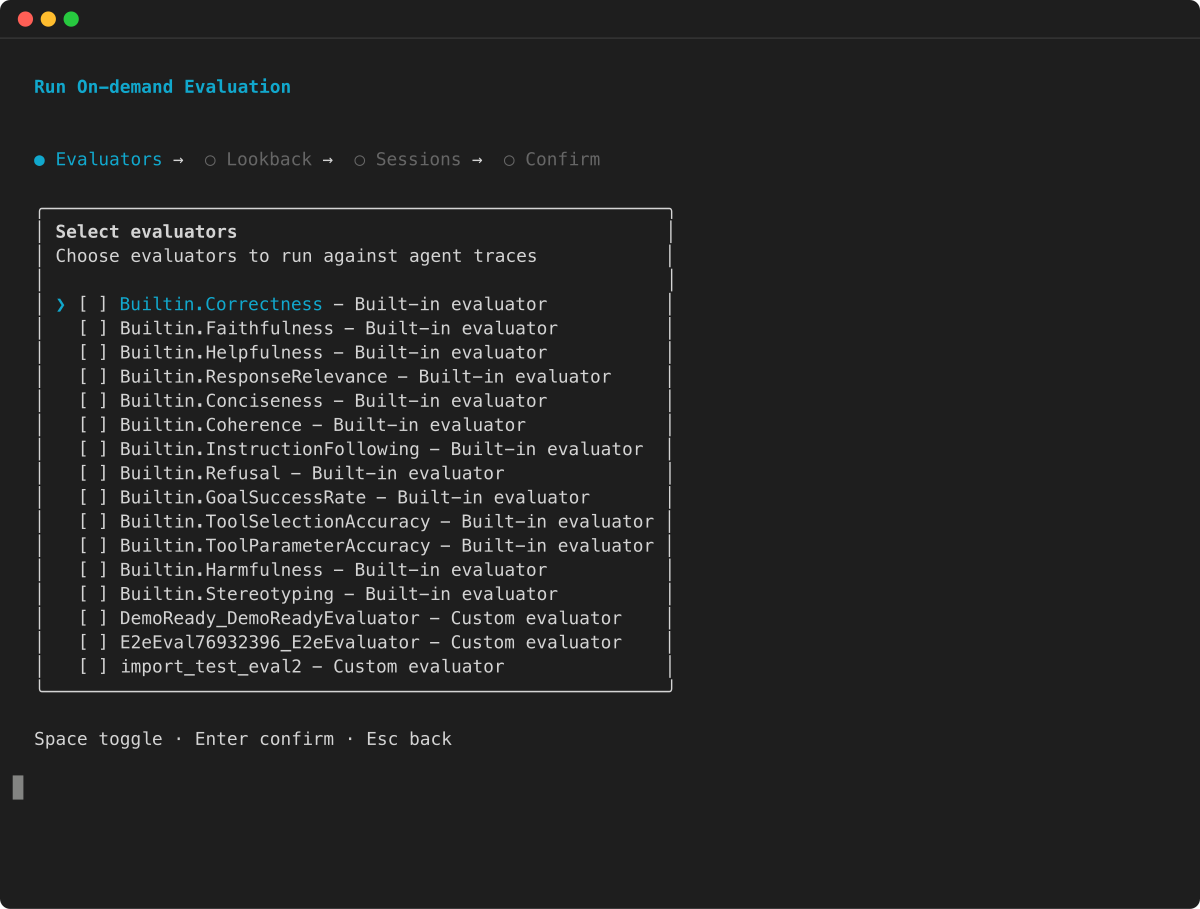

AgentCore starter toolkit CLI

# Runs evaluation for the specified agent and session.
# It auto queries cloudwatch logs and orchestrates evaluation over multiple evaluators.

AGENT_ID="YOUR_AGENT_ID"
SESSION_ID="YOUR_SESSION_ID"
agentcore eval run \
  --agent-id $AGENT_ID \
  --session-id $SESSION_ID \
  --evaluator "Builtin.Helpfulness" \
  --evaluator "Builtin.GoalSuccessRate"

# Auto reads default agentId and sessionId from current agent config (.bedrock_agentcore.yaml) if available
# Verify using ```agentcore status``` or look for ".bedrock_agentcore.yaml"
agentcore eval run \
  --evaluator "Builtin.Helpfulness" \
  --evaluator "Builtin.GoalSuccessRate"

AgentCore starter toolkit SDK

from bedrock_agentcore_starter_toolkit import Evaluation

# Initialize the evaluation client
eval_client = Evaluation()

# Run evaluation on a specific session
results = eval_client.run(
    agent_id="YOUR_AGENT_ID",      # Replace with your agent ID
    session_id="YOUR_SESSION_ID",  # Replace with your session ID
    evaluators=["Builtin.Helpfulness", "Builtin.GoalSuccessRate"]
)

# Display results
successful = results.get_successful_results()
failed = results.get_failed_results()

print(f"  Successful: {len(successful)}")
print(f"  Failed:     {len(failed)}")

if successful:
    result = successful[0]
    print("\n📊 Result:")
    print(f"  Evaluator: {result.evaluator_name}")
    print(f"  Score:     {result.value:.2f}")
    print(f"  Label:     {result.label}")
    if result.explanation:
        print(f"  Explanation: {result.explanation[:150]}...")

AWS SDK

Download span-logs from CloudWatch

Before calling the Evaluate API, you need to download the span logs from CloudWatch. You can use the Python code below to do so and optionally save them in a JSON file. This makes it easier to make the request for the same session with different evaluators.

import boto3
import time
import json
from datetime import datetime, timedelta

region = region-code
agent_id = add the agent-id from step-2 here
session_id = use the session-id from step-3 here

def query_logs(log_group_name, query_string):
    client = boto3.client('logs', region_name=region)
    start_time = datetime.now() - timedelta(minutes=60) # past 1 hour
    end_time = datetime.now()

    query_id = client.start_query(
        logGroupName=log_group_name,
        startTime=int(start_time.timestamp()),
        endTime=int(end_time.timestamp()),
        queryString=query_string
    )['queryId']

    while (result := client.get_query_results(queryId=query_id))['status'] not in ['Complete', 'Failed']:
        time.sleep(1)

    if result['status'] == 'Failed':
        raise Exception("Query failed")
    return result['results']

def query_session_logs(log_group_name, session_id, **kwargs):
    query = f"""fields @timestamp, @message
    | filter ispresent(scope.name) and ispresent(attributes.session.id)
    | filter attributes.session.id = "{session_id}"
    | sort @timestamp asc"""
    return query_logs(log_group_name, query, **kwargs)

def query_agent_runtime_logs(agent_id, endpoint, session_id, **kwargs):
    return query_session_logs(
        f"/aws/bedrock-agentcore/runtimes/{agent_id}-{endpoint}",
        session_id, **kwargs)

def query_aws_spans_logs(session_id, **kwargs):
    return query_session_logs("aws/spans", session_id, **kwargs)

def extract_messages_as_json(query_results):
    return [json.loads(f['value']) for row in query_results
            for f in row if f['field'] == '@message'
            and f['value'].strip().startswith('{')]

def get_session_span_logs():
    agent_runtime_logs = query_agent_runtime_logs(
        agent_id=agent_id, endpoint="DEFAULT", session_id=session_id
    )
    print(f"Downloaded {len(agent_runtime_logs)} runtime-log entries")

    aws_span_logs = query_aws_spans_logs(session_id=session_id)
    print(f"Downloaded {len(aws_span_logs)} aws/span entries")

    session_span_logs = extract_messages_as_json(aws_span_logs) + extract_messages_as_json(agent_runtime_logs)
    print(f"Returning {len(aws_span_logs) + len(agent_runtime_logs)} total records")
    return session_span_logs

# get the spans from cloudwatch
session_span_logs = get_session_span_logs()

# optional (dump in a json file for reuse)
session_span_logs_file_name = "ace-demo-session.json"
with open(session_span_logs_file_name, "w") as f:
    json.dump(session_span_logs, f, indent=2)

Call Evaluate

Once you have the input spans, you can invoke the Evaluate API. Please note that the responses may take a few moments as a large language model is scoring your traces.

# initialise client
ace_dp_client = boto3.client('agentcore-evaluation-dataplane', region_name = region)

# call evaluate
response = ace_dp_client.evaluate(
    evaluatorId = "Builtin.Helpfulness", # can be a custom evaluator id as well
    evaluationInput = {"sessionSpans": session_span_logs})

print(response["evaluationResults"])

If you use above and dump the session-spans in a json file, you can also subsequently run evaluate as below

with open(session_span_logs_file_name, "r") as f:
    session_span_logs = json.load(f)

# initialise client
ace_dp_client = boto3.client('agentcore-evaluation-dataplane', region_name = region)

# call evaluate
response = ace_dp_client.evaluate(
    evaluatorId = "Builtin.ToolSelectionAccuracy", # can be a custom evaluator id as well
    evaluationInput = {"sessionSpans": session_span_logs})

print(response["evaluationResults"])

Using evaluation targets

To evaluate a specific trace or tool within a session, you can specify the target using the evaluationTarget parameter in your request.

The evaluationTarget parameter you specify depends on the evaluator level:

Session-level evaluator

Since the service supports only one session per evaluation, you do not need to explicitly set the evaluation target.

Trace-level evaluator

For trace-level evaluators (such as Builtin.Helpfulness or Builtin.Correctness), set the trace IDs in the evaluationTarget parameter:

response = ace_dp_client.evaluate(
    evaluatorId = "Builtin.Helpfulness",
    evaluationInput = {"sessionSpans": session_span_logs},
    evaluationTarget = {"traceIds": ["trace-id-1", "trace-id-2"]}
)

Tool call level evaluator

For span-level evaluators (such as Builtin.ToolSelectionAccuracy), set the span IDs in the evaluationTarget parameter:

response = ace_dp_client.evaluate(
    evaluatorId = "Builtin.ToolSelectionAccuracy",
    evaluationInput = {"sessionSpans": session_span_logs},
    evaluationTarget = {"spanIds": ["span-id-1", "span-id-2"]}
)

Step 4: Evaluation results

Each Evaluate API call returns a response containing a list of evaluator results. Because a single session can include multiple traces and tool calls, these elements are evaluated as separate entities. Consequently, a single API call may return multiple evaluation results.

{
    "evaluationResults": [ {evaluation-result-1}, {evaluation-result_2},.... ]
}

Result limit

The number of evaluations returned per API call is limited to 10 results. For example, if you evaluate a session containing 15 traces using a trace-level evaluator, the response includes a maximum of 10 results. By default, the API returns the last 10 evaluations, as these typically contain the most context relevant to evaluation quality.

Partial failures

An API call may process n evaluations while m of them fail. Failures can occur due to various reasons, including:

In cases of partial failure, the response includes both successful and failed evaluations. Failed results include an error code and error message to help you diagnose the issue.

Span context

Each evaluator result has a spanContext field that identifies the entity evaluated:

Example successful result entry

This is just one entry. If a session has multiple traces, you will see multiple such entries, one for each trace. Similarly for tool-level evaluators, if there are multiple tool calls and a tool evaluator (such as Builtin.ToolSelectionAccuracy) is provided, there will be one result per tool span.

{
  "evaluatorArn": "arn:aws:bedrock-agentcore:::evaluator/Builtin.Helpfulness",
  "evaluatorId": "Builtin.Helpfulness",
  "evaluatorName": "Builtin.Helpfulness",
  "explanation": ".... evaluation explanation will be added here ...",
  "context": {
    "spanContext": {
      "sessionId": "test-ace-demo-session-18a1dba0-62a0-462e",
      "traceId": "....trace_id......."
    }
  },
  "value": 0.83,
  "label": "Very Helpful",
  "tokenUsage": {
    "inputTokens": 958,
    "outputTokens": 211,
    "totalTokens": 1169
  }
}

Example failed result entry

{
    "evaluatorArn": "arn:aws:bedrock-agentcore:::evaluator/Builtin.Helpfulness",
    "evaluatorId": "Builtin.Helpfulness",
    "evaluatorName": "Builtin.Helpfulness",
    "context": {
        "spanContext": {
            "sessionId": "test-ace-demo-session-18a1dba0-62a0-462e",
            "traceId": "....trace_id......."
        }
    },
    "errorMessage": ".... details of the error....",
    "errorCode": ".... name/code of the error...."
}
