將 AWS Transfer Family 伺服器端點類型從 VPC_ENDPOINT 更新為 VPC

您可以使用 AWS Management Console AWS CloudFormation或 Transfer Family API，將伺服器的 EndpointType 從 更新VPC_ENDPOINT為 VPC。下列各節提供使用每種方法來更新伺服器端點類型的詳細程序和範例。如果您在多個 AWS 區域和多個帳戶中有伺服器 AWS ，您可以使用下一節提供的範例指令碼進行修改，以使用您需要更新的VPC_ENDPOINT類型來識別伺服器。

使用VPC_ENDPOINT端點類型識別伺服器

您可以使用 來識別哪些伺服器正在使用 VPC_ENDPOINT AWS Management Console。

使用 更新伺服器端點類型 AWS Management Console

使用 更新伺服器端點類型 AWS CloudFormation

本節說明如何使用 AWS CloudFormation 將伺服器的 更新EndpointType為 VPC。針對您已部署使用的 Transfer Family 伺服器，請使用此程序 AWS CloudFormation。在此範例中，用於部署 Transfer Family 伺服器的原始 AWS CloudFormation 範本如下所示：

AWS TemplateFormatVersion: '2010-09-09'
Description: 'Create AWS Transfer Server with VPC_ENDPOINT endpoint type'
Parameters:
  SecurityGroupId:
    Type: AWS::EC2::SecurityGroup::Id
  SubnetIds:
    Type: List<AWS::EC2::Subnet::Id>
  VpcId:
    Type: AWS::EC2::VPC::Id
Resources:
  TransferServer:
    Type: AWS::Transfer::Server
    Properties:
      Domain: S3
      EndpointDetails:
        VpcEndpointId: !Ref VPCEndpoint
      EndpointType: VPC_ENDPOINT
      IdentityProviderType: SERVICE_MANAGED
      Protocols:
        - SFTP
  VPCEndpoint:
    Type: AWS::EC2::VPCEndpoint
    Properties:
      ServiceName: com.amazonaws.us-east-1.transfer.server
      SecurityGroupIds:
        - !Ref SecurityGroupId
      SubnetIds:
        - !Select [0, !Ref SubnetIds]
        - !Select [1, !Ref SubnetIds]
        - !Select [2, !Ref SubnetIds]
      VpcEndpointType: Interface
      VpcId: !Ref VpcId

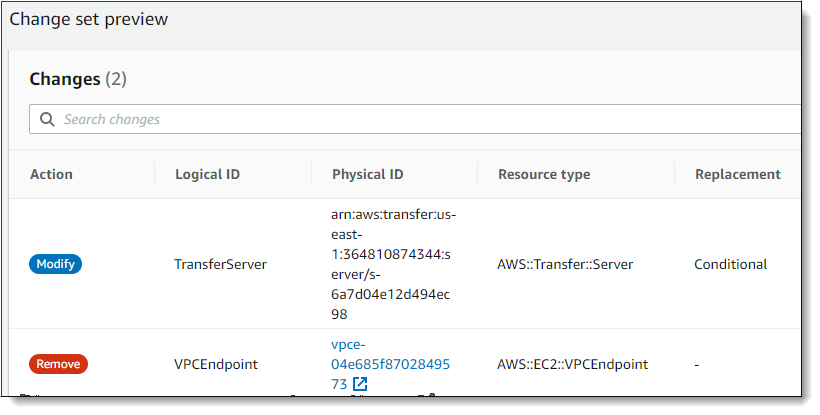

範本會隨著下列變更而更新：

更新的範本如下所示：

AWS TemplateFormatVersion: '2010-09-09'
Description: 'Create AWS Transfer Server with VPC endpoint type'
Parameters:
  SecurityGroupId:
    Type: AWS::EC2::SecurityGroup::Id
  SubnetIds:
    Type: List<AWS::EC2::Subnet::Id>
  VpcId:
    Type: AWS::EC2::VPC::Id
Resources:
  TransferServer:
    Type: AWS::Transfer::Server
    Properties:
      Domain: S3
      EndpointDetails:
        SecurityGroupIds:
          - !Ref SecurityGroupId
        SubnetIds:
          - !Select [0, !Ref SubnetIds]
          - !Select [1, !Ref SubnetIds]
          - !Select [2, !Ref SubnetIds]
        VpcId: !Ref VpcId
      EndpointType: VPC
      IdentityProviderType: SERVICE_MANAGED
      Protocols:
        - SFTP

使用 API 更新伺服器 EndpointType

您可以使用 describe-server AWS CLI 命令或 UpdateServer API 命令。下列範例指令碼會停止 Transfer Family 伺服器、更新 EndpointType、移除 VPC_ENDPOINT，以及啟動伺服器。

import boto3
import time

profile = input("Enter the name of the AWS account you'll be working in: ")
region_name = input("Enter the AWS Region you're working in: ")
server_id = input("Enter the AWS Transfer Server Id: ")

session = boto3.Session(profile_name=profile)

ec2 = session.client("ec2", region_name=region_name)
transfer = session.client("transfer", region_name=region_name)

group_ids=[]

transfer_description = transfer.describe_server(ServerId=server_id)
if transfer_description['Server']['EndpointType']=='VPC_ENDPOINT':
    transfer_vpc_endpoint = transfer_description['Server']['EndpointDetails']['VpcEndpointId']
    transfer_vpc_endpoint_descriptions = ec2.describe_vpc_endpoints(VpcEndpointIds=[transfer_vpc_endpoint])
    for transfer_vpc_endpoint_description in transfer_vpc_endpoint_descriptions['VpcEndpoints']:
        subnet_ids=transfer_vpc_endpoint_description['SubnetIds']
        group_id_list=transfer_vpc_endpoint_description['Groups']
        vpc_id=transfer_vpc_endpoint_description['VpcId']
        for group_id in group_id_list:
             group_ids.append(group_id['GroupId'])
    if transfer_description['Server']['State']=='ONLINE':
        transfer_stop = transfer.stop_server(ServerId=server_id)
        print(transfer_stop)
        time.sleep(300) #safe
        transfer_update = transfer.update_server(ServerId=server_id,EndpointType='VPC',EndpointDetails={'SecurityGroupIds':group_ids,'SubnetIds':subnet_ids,'VpcId':vpc_id})
        print(transfer_update)
        time.sleep(10)
        transfer_start = transfer.start_server(ServerId=server_id)
        print(transfer_start)
        delete_vpc_endpoint = ec2.delete_vpc_endpoints(VpcEndpointIds=[transfer_vpc_endpoint])
