Network Firewall | Create Firewall Policy (Managed Automation) - AMS Advanced Change Type Reference
Change Type DetailsAdditional InformationExecution Input ParametersExample: Required ParametersExample: All Parameters

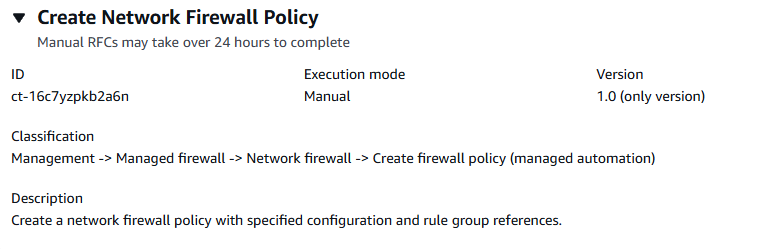

Network Firewall | Create Firewall Policy (Managed Automation)

Create a network firewall policy with specified configuration and rule group references.

Full classification: Management | Managed firewall | Network firewall | Create firewall policy (managed automation)

Change Type Details

Change type ID

ct-16c7yzpkb2a6n

Current version

1.0

Expected execution duration

60 minutes

AWS approval

Required

Customer approval

Not required if submitter

Execution mode

Manual

Additional Information

Info not available.

Execution Input Parameters

For detailed information about the execution input parameters, see Schema for Change Type ct-16c7yzpkb2a6n.

Example: Required Parameters

{
  "FirewallPolicyName": "MyFirewallPolicy",
  "StatelessDefaultActions": [
    "aws:pass"
  ],
  "StatelessFragmentDefaultActions": [
    "aws:drop"
  ]
}

Example: All Parameters

{
  "FirewallPolicyName": "ComprehensiveFirewallPolicy",
  "Description": "Complete network firewall policy with all parameters configured.",
  "StreamExceptionPolicy": "DROP",
  "StatelessDefaultActions": [
    "aws:pass"
  ],
  "StatelessFragmentDefaultActions": [
    "aws:forward_to_sfe"
  ],
  "StatelessRuleGroupReferences": [
    {
      "Priority": 100,
      "ResourceArn": "arn:aws:network-firewall:us-east-1:123456789012:stateless-rulegroup/MyStatelessRuleGroup"
    }
  ],
  "StatefulRuleOrder": "DEFAULT_ACTION_ORDER",
  "StatefulRuleGroupReferences": [
    {
      "ResourceArn": "arn:aws:network-firewall:us-east-1:123456789012:stateful-rulegroup/MyStatefulRuleGroup"
    }
  ],
  "Priority": "High"
}
