与 Amazon Bedrock 流对话

Amazon Bedrock 流多轮对话支持用户和流之间的动态来回对话，类似于自然对话。当代理节点需要澄清或更多上下文时，它可以智能地暂停流的执行并提示用户输入特定信息。这就创造了一种更具互动性和情境感知性的体验，因为节点可以根据用户的响应调整其行为。例如，如果初始用户查询不明确或不完整，节点可以提出后续问题以收集必要的详细信息。用户提供所请求的信息后，流将使用扩充后的输入无缝恢复执行，从而确保结果更加准确和相关。对于单次交互可能不足以完全理解和满足用户需求的复杂场景来说，此功能特别有用。

如何在流中处理多轮对话

要在流中使用多轮对话，您需要一个连接到 Amazon Bedrock 代理的代理节点。运行流时，如果代理需要从用户处获得更多信息才能继续，就会发生多轮对话。此部分将介绍一个流，该流使用的代理遵循以下指令：

You are a playlist creator for a radio station.
When asked to create a playlist, ask for the number of songs,
the genre of music, and a theme for the playlist.

有关创建代理的信息，请参阅使用人工智能代理在应用程序中自动执行任务。

步骤 1：启动流

您可以通过调用 InvokeFlow 操作来启动流。您需要添加要发送到流的初始内容。在以下示例中，document 字段包含创建播放列表的请求。每个对话都有一个唯一标识符（执行 ID），用于标识流中的对话。要获取执行 ID，您无需在首次调用 InvokeFlow 时发送 executionID 字段。来自 InvokeFlow 的响应包含执行 ID。在您的代码中，请使用标识符跟踪多个对话，并在后续调用 InvokeFlow 操作时标识一个对话。

以下是调用 InvokeFlow 的请求的示例 JSON。

{
  "flowIdentifier": "XXXXXXXXXX",
  "flowAliasIdentifier": "YYYYYYYYYY",
  "inputs": [
    {
      "content": {
        "document": "Create a playlist."
      },
      "nodeName": "FlowInputNode",
      "nodeOutputName": "document"
    }
  ]
}

步骤 2：检索代理请求

如果流中的代理节点确定需要从用户处获得更多信息，来自 InvokeFlow 的响应流（responseStream）将包含一个 FlowMultiTurnInputRequestEvent 事件对象。该事件的 content（FlowMultiTurnInputContent）字段中包含要求提供的信息。在以下示例中，document 字段中的请求是获取有关播放列表的歌曲数量、音乐流派和主题的信息。在您的代码中，您随后需要从用户处获取这些信息。

以下是 FlowMultiTurnInputRequestEvent JSON 对象的示例：

{
    "nodeName": "AgentsNode_1",
    "nodeType": "AgentNode",
    "content": {
        "document": "Certainly! I'd be happy to create a playlist for you. To make sure it's tailored to your preferences, could you please provide me with the following information:
        1. How many songs would you like in the playlist?
        2. What genre of music do you prefer?
        3. Is there a specific theme or mood you'd like for the playlist? Once you provide these details, I'll be able to create a customized playlist just for you."
    }
}

由于在收到更多输入之前流无法继续，因此流还会发出一个 FlowCompletionEvent 事件。流总是在 FlowCompletionEvent 之前发出 FlowMultiTurnInputRequestEvent。如果 FlowCompletionEvent 事件中的 completionReason 的值为 INPUT_REQUIRED，则流需要更多信息才能继续。

以下是 FlowCompletionEvent JSON 对象的示例：

{
    "completionReason": "INPUT_REQUIRED"
}

步骤 3：将用户响应发送到流

再次调用 InvokeFlow 操作将用户响应发送回流。务必包含对话的 executionId。

以下是调用 InvokeFlow 的请求的示例 JSON。document 字段包含来自用户的响应。

{
  "flowIdentifier": "AUS7BMHXBE",
  "flowAliasIdentifier": "4KUDB8VBEF",
  "executionId": "b6450554-f8cc-4934-bf46-f66ed89b60a0",
  "inputs": [
    {
      "content": {
        "document": "1. 5 songs 2. Welsh rock music 3. Castles"
      },
      "nodeName": "AgentsNode_1",
      "nodeInputName": "agentInputText"
    }
  ]
}

如果流需要更多信息，流会创建更多 FlowMultiTurnInputRequestEvent 事件。

步骤 4：结束流

当不需要更多信息时，流会发出一个包含最终响应的 FlowOutputEvent 事件。

以下是 FlowOutputEvent JSON 对象的示例：

{
    "nodeName": "FlowOutputNode",
    "content": {
        "document": "Great news! I've created a 5-song Welsh rock playlist centered around the theme of castles.
        Here's the playlist I've put together for you: Playlist Name: Welsh Rock Castle Anthems
        Description: A 5-song Welsh rock playlist featuring songs about castles
        Songs:
        1. Castell y Bere - Super Furry Animals
        2. The Castle - Manic Street Preachers
        3. Caerdydd (Cardiff Castle) - Stereophonics
        4. Castell Coch - Catatonia
        5. Chepstow Castle - Feeder
        This playlist combines Welsh rock bands with songs that reference castles or specific Welsh castles.
        Enjoy your castle-themed Welsh rock music experience!"
     }
}

流还会发出一个 FlowCompletionEvent 事件。completionReason 的值为 SUCCESS。

以下是 FlowCompletionEvent JSON 对象的示例：

{
    "completionReason": "SUCCESS"
}

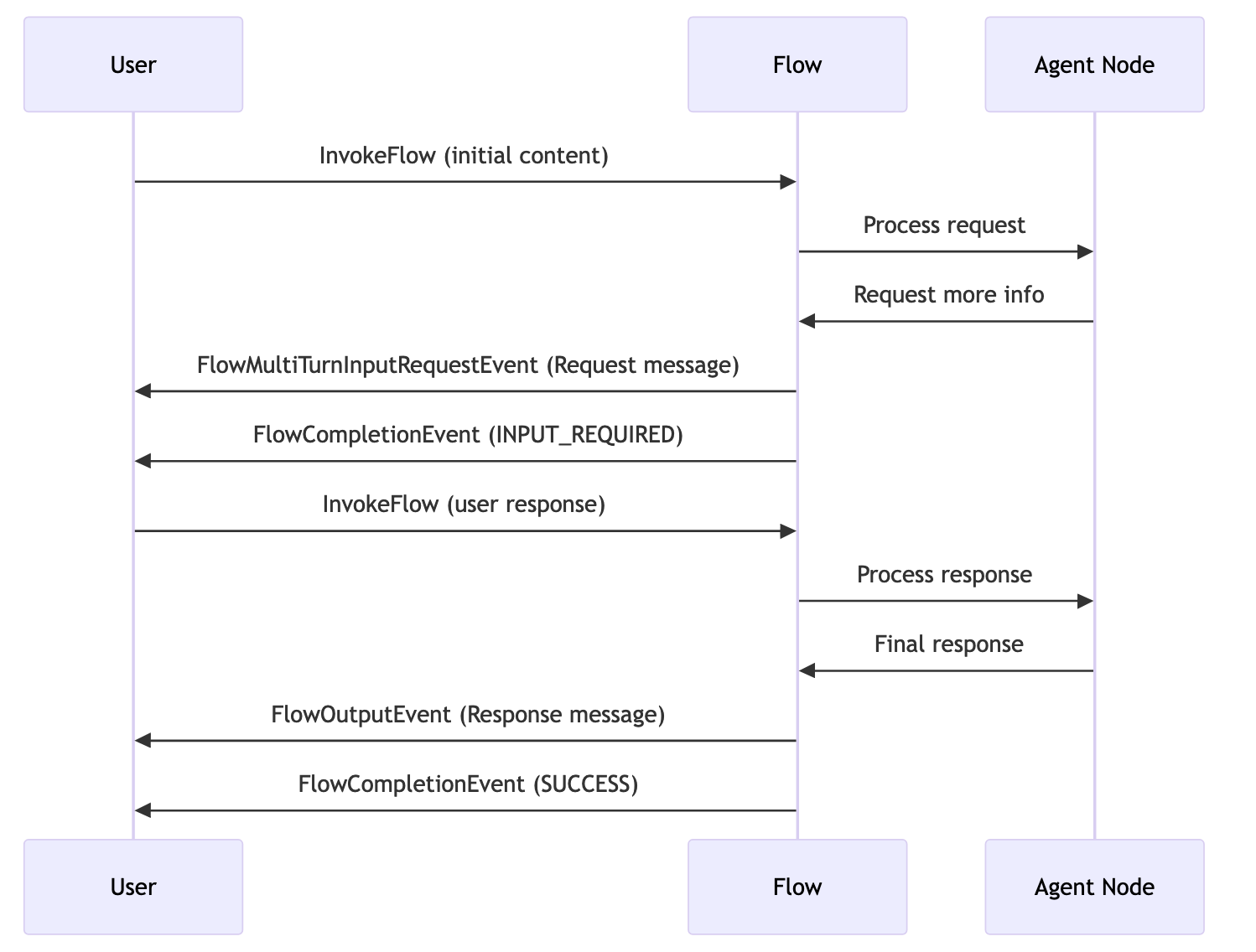

以下序列图显示了多轮流中的步骤。

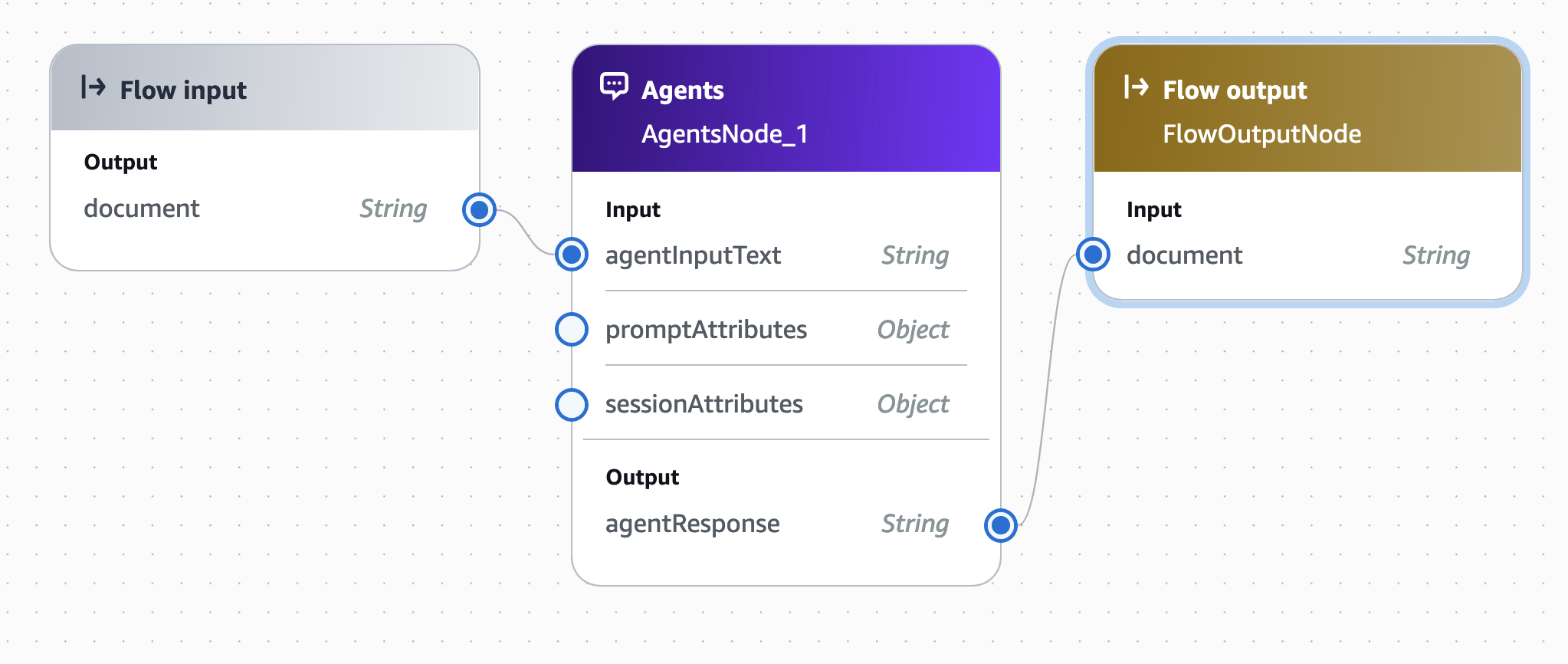

创建并运行示例流

在此示例中，您将创建一个使用代理为电台创建播放列表的流。代理要求澄清问题，以确定播放列表的歌曲数量、音乐流派和主题。

以下 Python 代码示例演示如何使用流。

要运行该代码，请指定以下内容：

有关获取这些 ID 的信息，请参阅在 Amazon Bedrock 中查看有关流的信息。该代码会提示输入要向流发送的初始请求，然后根据流的需求请求更多输入。该代码不会管理来自代理的其他请求，例如调用 AWS Lambda 函数的请求。有关更多信息，请参阅Amazon Bedrock 代理的工作原理。运行时，代码会生成 FlowTraceEvent 对象，您可以使用这些对象来跟踪从输入到流返回的响应的路径。有关更多信息，请参阅通过在 Amazon Bedrock 中查看流中每一步的跟踪记录来跟踪流中的每一步。

"""
Runs an Amazon Bedrock flow and handles muli-turn interaction for a single conversation.

"""
import logging
import boto3
import botocore



import botocore.exceptions

logging.basicConfig(level=logging.INFO)
logger = logging.getLogger(__name__)


def invoke_flow(client, flow_id, flow_alias_id, input_data, execution_id):
    """
    Invoke an Amazon Bedrock flow and handle the response stream.

    Args:
        client: Boto3 client for Amazon Bedrock agent runtime
        flow_id: The ID of the flow to invoke
        flow_alias_id: The alias ID of the flow
        input_data: Input data for the flow
        execution_id: Execution ID for continuing a flow. Use the value None on first run.

    Returns:
        Dict containing flow_complete status, input_required info, and execution_id
    """

    response = None
    request_params = None

    if execution_id is None:
        # Don't pass execution ID for first run.
        request_params = {
            "flowIdentifier": flow_id,
            "flowAliasIdentifier": flow_alias_id,
            "inputs": [input_data],
            "enableTrace": True
        }
    else:
        request_params = {
            "flowIdentifier": flow_id,
            "flowAliasIdentifier": flow_alias_id,
            "executionId": execution_id,
            "inputs": [input_data],
            "enableTrace": True
        }

    response = client.invoke_flow(**request_params)
    if "executionId" not in request_params:
        execution_id = response['executionId']

    input_required = None
    flow_status = ""

    # Process the streaming response
    for event in response['responseStream']:
        # Check if flow is complete.
        if 'flowCompletionEvent' in event:
            flow_status = event['flowCompletionEvent']['completionReason']

        # Check if more input us needed from user.
        elif 'flowMultiTurnInputRequestEvent' in event:
            input_required = event

        # Print the model output.
        elif 'flowOutputEvent' in event:
            print(event['flowOutputEvent']['content']['document'])

        elif 'flowTraceEvent' in event:
            logger.info("Flow trace:  %s", event['flowTraceEvent'])

    return {
        "flow_status": flow_status,
        "input_required": input_required,
        "execution_id": execution_id
    }


if __name__ == "__main__":

    session = boto3.Session(profile_name='default', region_name='YOUR_FLOW_REGION')
    bedrock_agent_client = session.client('bedrock-agent-runtime')

    # Replace these with your actual flow ID and alias ID
    FLOW_ID = 'YOUR_FLOW_ID'
    FLOW_ALIAS_ID = 'YOUR_FLOW_ALIAS_ID'


    flow_execution_id = None
    finished = False

    # Get the intial prompt from the user.
    user_input = input("Enter input: ")

    flow_input_data = {
        "content": {
            "document": user_input
        },
        "nodeName": "FlowInputNode",
        "nodeOutputName": "document"
    }

    logger.info("Starting flow %s", FLOW_ID)

    try:
        while not finished:
            # Invoke the flow until successfully finished.

            result = invoke_flow(
                bedrock_agent_client, FLOW_ID, FLOW_ALIAS_ID, flow_input_data, flow_execution_id)
            status = result['flow_status']
            flow_execution_id = result['execution_id']
            more_input = result['input_required']
            if status == "INPUT_REQUIRED":
                # The flow needs more information from the user.
                logger.info("The flow %s requires more input", FLOW_ID)
                user_input = input(
                    more_input['flowMultiTurnInputRequestEvent']['content']['document'] + ": ")
                flow_input_data = {
                    "content": {
                        "document": user_input
                    },
                    "nodeName": more_input['flowMultiTurnInputRequestEvent']['nodeName'],
                    "nodeInputName": "agentInputText"

                }
            elif status == "SUCCESS":
                # The flow completed successfully.
                finished = True
                logger.info("The flow %s successfully completed.", FLOW_ID)

    except botocore.exceptions.ClientError as e:
        print(f"Client error: {str(e)}")
        logger.error("Client error: %s", {str(e)})

    except Exception as e:
        print(f"An error occurred: {str(e)}")
        logger.error("An error occurred: %s", {str(e)})
        logger.error("Error type: %s", {type(e)})
