Identity management

This section discusses how workforce users in a corporate directory federate into AWS accounts and access SageMaker AI Studio. First, we will briefly describe how users, groups, and roles are mapped, and how user federation works.

Users, groups, and role

In AWS, resource permissions are managed using users, groups, and roles. Customers can manage their users and groups either through IAM, or in a corporate directory such as Active Directory (AD), enabled through an external IdP such as Okta, that allows them to authenticate the users to various applications running in the cloud and on-premises.

As discussed in the AWS Security Pillar Identity Management section, it is a best practice to manage your user identities in a central IdP, because this helps to easily integrate with your back-end HR processes, and helps to manage access to your workforce users.

IdPs such as Okta allow end users to authenticate to one or more AWS accounts and gain access to specific roles using SSO with security assertation markup language (SAML). IdP admins have the ability to download roles from AWS accounts into IdP, and assign those to users. When logging in to AWS, end users are presented with an AWS screen that displays a list AWS roles assigned to them in one or more AWS accounts. They can select the role to assume for login, which defines their permissions for the duration of that authenticated session.

A group must exist in IdP for each specific account and role combination that you want to provide access to. You can think of these groups as AWS role-specific groups. Any user who is a member of these role specific groups is granted a single entitlement: access to one specific role in one specific AWS account. However, this single entitlement process does not scale to manage user access by assigning each user to specific AWS role groups. To simplify administration, we recommend you also create a number of groups for all of the distinct user-sets in your organization that require different sets of AWS entitlements.

To illustrate the central IdP setup, consider an enterprise with AD setup, where users and groups are synchronized to the IdP directory. In AWS, these AD groups are mapped to IAM roles. The major steps of the workflow follow:

For detailed instructions on setting up SAML account federation refer Okta’s How to Configure SAML 2.0 for AWS Account Federation.

User federation

Authentication for SageMaker AI Studio can either be done using IAM or IAM IdC. If the users are managed through IAM, they can choose the IAM mode. If the enterprise uses an external IdP, they can either federate through IAM or IAM IdC. Note that the authentication mode cannot be updated for an existing SageMaker AI Studio domain, so it is critical to make the decision before creating a production SageMaker AI Studio domain.

If SageMaker AI Studio is set up in IAM mode, SageMaker AI Studio users access the app through a pre-signed URL that automatically signs a user in to the SageMaker AI Studio app when accessed through a browser.

IAM users

For IAM users, the administrator creates SageMaker AI Studio user profiles for each user, and associates the user profile with an IAM role that allows the necessary actions that the user needs to perform from within Studio. To restrict an AWS user from accessing only their SageMaker AI Studio user profile, the administrator should tag the SageMaker AI Studio user profile and attach an IAM policy to the user that allows them to access only if the tag value is the same as the AWS user name. The policy statement looks like this:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "AmazonSageMakerPresignedUrlPolicy",
            "Effect": "Allow",
            "Action": [
                "sagemaker:CreatePresignedDomainUrl"
            ],
            "Resource": "*",
            "Condition": {
                "StringEquals": {
                    "sagemaker:ResourceTag/studiouserid": "${aws:username}"
                }
            }
        }
    ]
}

AWS IAM or account federation

The AWS account federation method enables customers to federate into the SageMaker AI Console from their SAML IdP, such as Okta. To restrict users from accessing only their user profile, the administrator should tag the SageMaker AI Studio user profile, add PrincipalTags on the IdP, and set them as transitive tags. The following diagram depicts how the federated user (Data Scientist Alice) is authorized to access their own SageMaker AI Studio user profile.

If you want to automate the creation of SageMaker AI Execution roles and policies as part of user onboarding, the following is one way to accomplish this:

Set up an automation process that listens to the SageMaker AI-Account1-Group membership event, and use AWS APIs to create the role, policies, tags, and SageMaker AI Studio user profile based on their AD group memberships. Attach the role to the user profile. For a sample policy, refer to Prevent SageMaker AI Studio users from accessing other user profiles.

SAML authentication using AWS Lambda

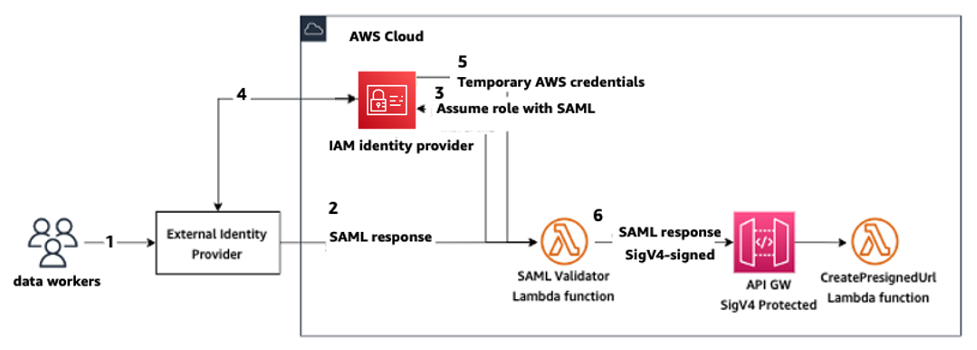

In IAM mode, users can also be authenticated into SageMaker AI Studio using SAML assertions. In this architecture, the customer has an existing IdP, where they can create a SAML application for the users to access Studio (instead of AWS Identity Federation application). The customer’s IdP is added to IAM. An AWS Lambda function helps validate the SAML assertion using IAM and STS, and then invokes an API gateway or a Lambda function directly, to create the pre-signed domain URL.

The advantage of this solution is that the Lambda function can customize logic for access to SageMaker AI Studio. For example:

In summary, this solution will expose SageMaker AI Studio as a SAML2.0 application with custom logic for authentication and authorization. Refer the appendix section SageMaker Studio access using SAML assertion for implementation details.

AWS IAM IdC federation

IdC federation method enables customers to federate directly into SageMaker AI Studio application from their SAML IdP (such as Okta). The following diagram depicts how the federated user is authorized to access their own SageMaker AI Studio instance.

Domain authentication guidance

Here are a few considerations when choosing a domain's authentication mode:
