AWSSupport-CollectAmazonConnectContactFlowLog

Description

The AWSSupport-CollectAmazonConnectContactFlowLog automation runbook is used to collect the Amazon Connect contact flow logs for a specific contact ID. By providing your Amazon Connect instance ID and contact ID, the runbook searches contact flow logs for the contact from the Amazon CloudWatch log group and uploads them to the Amazon Simple Storage Service (Amazon S3) bucket that is specified in the request parameter. The runbook generates output that provides Amazon S3 console URL and AWS CLI command for you to download the logs.

How does it work?

The AWSSupport-CollectAmazonConnectContactFlowLog automation runbook helps to collect the Amazon Connect contact flow logs for a specific contact ID stored in the configured CloudWatch log group and uploads them to a specified Amazon S3 bucket. To help with the security of the logs gathered from your Amazon Connect contact flow, the automation evaluates the Amazon S3 bucket configuration to determine if the bucket grants public read or write access permissions and is owned by the AWS account specified in the S3BucketOwnerAccountId parameter. If your Amazon S3 bucket uses server-side encryption with AWS Key Management Service keys (SSE-KMS), make sure that the user or AWS Identity and Access Management (IAM) role that is running this automation has the kms:GenerateDataKey permissions on the AWS KMS key. For more information about the logs generated by your Amazon Connect instance, see Flow logs stored in an Amazon CloudWatch log group.

Important

The CloudWatch Logs Insights queries incur charges based on the amount of data that is queried. Free tier customers are charged only for usage that exceeds service quotas. For more information, see Amazon CloudWatch Pricing.

Run this Automation (console)

Document type

Automation

Owner

Amazon

Platforms

Linux, macOS, Windows

Parameters

Required IAM permissions

The AutomationAssumeRole parameter requires the following actions to use the runbook successfully.


        {
            "Statement": [
                {
                    "Action": [
                        "s3:GetBucketPublicAccessBlock",
                        "s3:GetBucketPolicyStatus",
                        "s3:GetBucketAcl",
                        "s3:GetObject",
                        "s3:GetObjectAttributes",
                        "s3:PutObject",
                        "s3:PutObjectAcl"
                    ],
                    "Resource": [
                    "arn:aws:s3:::amzn-s3-demo-bucket/*",
                    "arn:aws:s3:::amzn-s3-demo-bucket"
                    ],
                    "Effect": "Allow"
                },
                {
                    "Action": [
                        "connect:DescribeInstance",
                        "connect:DescribeContact",
                        "ds:DescribeDirectories"
                    ],
                    "Resource": "*",
                    "Effect": "Allow"
                },
                {
                    "Action": [
                        "logs:StartQuery",
                        "logs:GetQueryResults"

                    "Resource": "*",
                    "Effect": "Allow"
                }
            ]
        }

Instructions

Follow these steps to configure the automation:

  1. Navigate to AWSSupport-CollectAmazonConnectContactFlowLog in Systems Manager under Documents.

  2. Select Execute automation.

  3. For the input parameters, enter the following:

    • AutomationAssumeRole (Optional):

      The Amazon Resource Name (ARN) of the AWS Identity and Access Management (IAM) role that allows Systems Manager Automation to perform the actions on your behalf. If no role is specified, Systems Manager Automation uses the permissions of the user who starts this runbook.

    • ConnectInstanceId (Required):

      The ID of your Amazon Connect instance.

    • ContactId (Required):

      The ID of the contact that you want to collect contact flow log for.

    • S3BucketName (Required):

      The Amazon S3 bucket name in your account where you want to upload the contact flow log. Make sure that bucket policy does not grant unnecessary read/write permissions to parties that do not need access to the collected logs.

    • S3ObjectPrefix (Optional):

      The Amazon S3 object path in the Amazon S3 bucket for an uploaded contact flow log. For example, if you specify CollectedLogs, the log will be uploaded as s3://your-s3-bucket/CollectedLogs/ContactFlowLog_[ContactId][AWSAccountId].gz. If you do not specify this parameter, the Systems Manager Automation execution ID is used, for example: s3://your-s3-bucket/[automation:EXECUTION_ID]/ContactFlowLog[ContactId]_[AWSAccountId].gz. Note: if you specify a value for S3ObjectPrefix and run this automation using the same [ContactId], the contact flow log will be overwritten.

    • S3BucketOwnerAccount (Optional):

      The AWS account number that owns the Amazon S3 bucket where you want to upload the contact flow log. If you do not specify this parameter, the runbook uses the AWS account ID of the user or role in which the automation runs.

    • S3BucketOwnerRoleArn (Optional):

      The ARN of the IAM role with permissions to get the Amazon S3 bucket and account block public access settings, bucket encryption configuration, bucket ACLs, bucket policy status, and upload objects to the bucket. If this parameter is not specified, the runbook uses the AutomationAssumeRole (if specified) or user that starts this runbook (if AutomationAssumeRole is not specified). See the required permissions section in the runbook description.

    Input parameters form for AWS Systems Manager Automation with fields for roles, IDs, and S3 settings.

  4. Select Execute.

  5. The automation initiates.

  6. The document performs the following steps:

    • CheckConnectInstanceExistance

      Checks if the Amazon Connect instance provided in the ConnectInstanceId is ACTIVE.

    • CheckS3BucketPublicStatus

      Checks if the Amazon S3 bucket specified in the S3BucketName allows anonymous or public read or write access permissions.

    • GenerateLogSearchTimeRange

      Generates StartTime and EndTime for the StartQuery step based on the InitiationTimestamp and LastUpdateTimestamp returned by the DescribeContact API. StartTime will be an hour before InitiationTimestamp and EndTime will be an hour after LastUpdateTimestamp.

    • StartQuery

      Starts a query log for the provided ContactId in the CloudWatch Logs log group associated with the Amazon Connect instance provided in ConnectInstanceId. Queries time out after 60 minutes of runtime. If your query times out, reduce the time range being searched. You can view the queries currently in progress as well as your recent query history in the CloudWatch console. For more information see View running queries or query history.

    • WaitForQueryCompletion

      Waits for the CloudWatch Logs query log for the provided ContactId to complete. Notice that the query times out after 60 minutes of runtime. If your query times out, reduce the time range being searched. You can view the queries currently in progress as well as your recent query history in the Amazon Connect console. For more information see View running queries or query history.

    • UploadContactFlowLog

      Gets the query result and uploads the contact flow log to the Amazon S3 bucket specified in S3BucketName.

    • GenerateReport

      Returns the Amazon S3 console URL where the contact flow log was uploaded and an example AWS CLI command that you can use to download the log file.

  7. After completed, review the Outputs section for the detailed results of the execution:

    • GenerateReport.OutputPayload

      Output that tells you the runbook successfully retrieved contact flow logs for the specified contact. This report also contains Amazon S3 console URL and an example AWS CLI command so that you can download the log file.

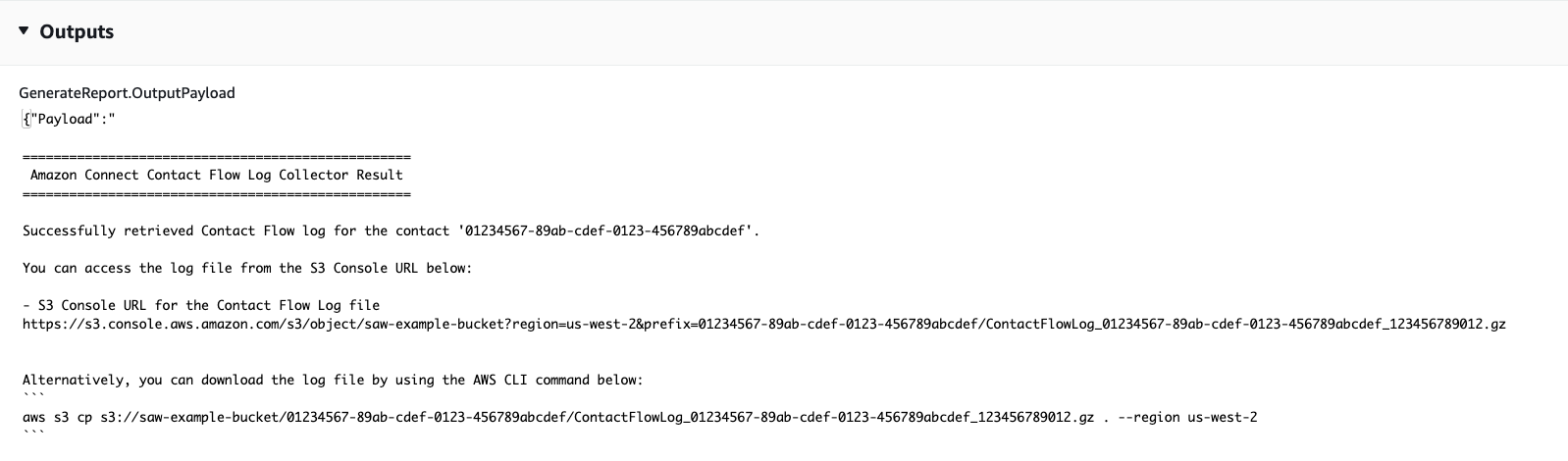

    Output showing successful retrieval of Contact Flow log with S3 Console URL and AWS CLI command.
