Create a test scenario

Creating a test scenario involves four main steps: configuring general settings, defining the scenario, shaping traffic patterns, and reviewing your configuration.

Step 1: General settings

Configure the basic parameters for your load test including test name, description, and general configuration options.

Test identification

  • Test name (Required) - A descriptive name for your test scenario

  • Test description (Required) - Additional details about the test purpose and configuration

  • Tags (Optional) - Add up to 5 tags to categorize and organize your test scenarios

Scheduling options

Configure when the test should run:

  • Run Now - Execute the test immediately after creation.

    Run Now option selected

  • Run Once - Schedule the test to run at a specific date and time.

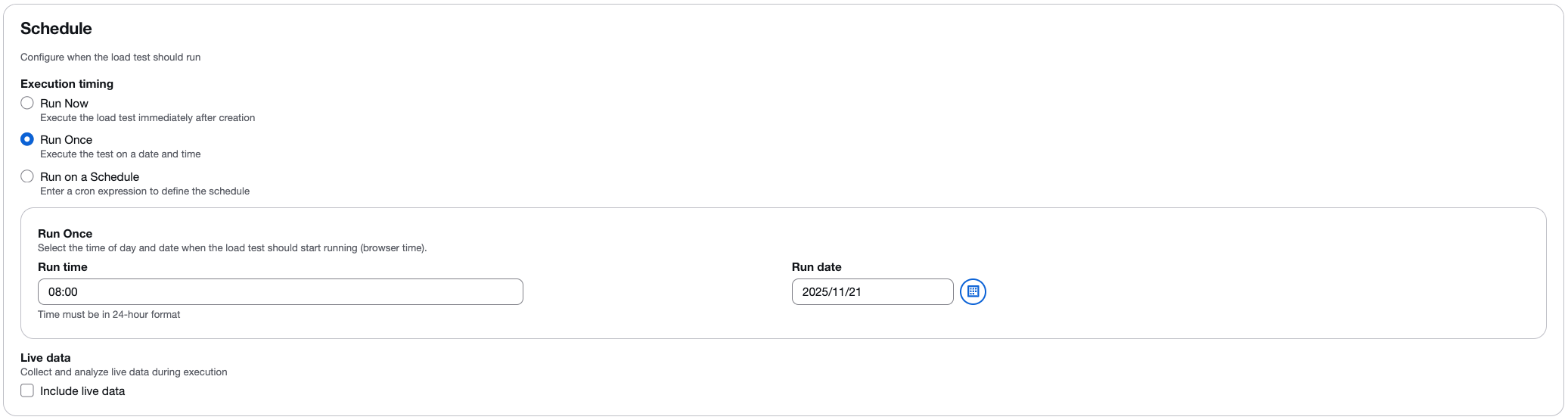

    Run Once option with date and time picker

  • Run on a Schedule - Use cron-based scheduling to run tests automatically at regular intervals. You can select from common patterns (every hour, daily, weekly) or define a custom cron expression.

    Run on a Schedule option with cron pattern selector

Scheduling workflow

When you schedule a test, the following workflow occurs:

  • The schedule parameters are sent to the solution’s API via Amazon API Gateway.

  • The API passes the parameters to a Lambda function that creates a CloudWatch Events rule scheduled to run on the specified date.

  • For one-time tests (Run Once), the CloudWatch Events rule runs on the specified date and the api-services Lambda function executes the test.

  • For recurring tests (Run on a Schedule), the CloudWatch Events rule activates on the specified date, and the api-services Lambda function creates a new rule that runs immediately and recurrently based on the specified frequency.

Live data

Select the Include live data checkbox to view real-time metrics while your test is running. When enabled, you can monitor:

  • Average response time.

  • Virtual user counts.

  • Successful request counts.

  • Failed request counts.

The live data feature provides real-time charting with data aggregated at one-second intervals. For more information, refer to Monitoring with live data.

Step 2: Scenario configuration

Define the specific testing scenario and select your preferred testing framework.

Test type selection

Choose the type of load test you want to perform:

Select the test type to run

  • Single HTTP Endpoint - Test a single API endpoint or web page with simple configuration.

  • JMeter - Upload JMeter test scripts (.jmx files or .zip archives).

  • K6 - Upload K6 test scripts (.js files or .zip archives).

  • Locust - Upload Locust test scripts (.py files or .zip archives).

HTTP endpoint configuration image::images/test-types.png[Select the test type to run] When "Single HTTP Endpoint" is selected, configure these settings:

HTTP Endpoint (Required)

Enter the full URL of the endpoint you want to test. For example, https://api.example.com/users . Ensure the endpoint is accessible from AWS infrastructure.

HTTP Method (Required)

Select the HTTP method for your requests. Default is GET. Other options include POST, PUT, DELETE, PATCH, HEAD, and OPTIONS.

Request Header (Optional)

Add custom HTTP headers to your requests. Common examples include:

  • Content-Type: application/json

  • Authorization: Bearer <token>

  • User-Agent: LoadTest/1.0

    Choose Add Header to include multiple headers.

Body Payload (Optional)

Add request body content for POST or PUT requests. Supports JSON, XML, or plain text formats. For example: {"userId": 123, "action": "test"}.

Test framework scripts

When using JMeter, K6, or Locust, upload your test script file or a .zip archive containing your test script and supporting files. For JMeter, you can include custom plugins in a /plugins folder within your .zip archive.

Important

Although your test script (JMeter, K6, or Locust) may define concurrency (virtual users), transaction rates (TPS), ramp-up times, and other load parameters, the solution will override these configurations with the values you specify in the Traffic Shape screen during test creation. The Traffic Shape configuration controls the task count, concurrency (virtual users per task), ramp-up duration, and hold duration for the test execution.

Step 3: Traffic shape

Configure how traffic will be distributed during your test, including multi-region support.

Traffic Shape configuration screen

Multi-region traffic configuration

Select one or more AWS regions to distribute your load test geographically. For each selected region, configure:

Task Count

The number of containers (tasks) that will be launched in the Fargate cluster for the test scenario. Additional tasks will not be created once the account has reached the "Fargate resource has been reached" limit.

Concurrency

The number of concurrent virtual users generated per task. The recommended limit is based on default settings of 2 vCPUs per task. Concurrency is limited by CPU and Memory resources.

Determine the number of users

The number of users a container can support for a test can be determined by gradually increasing the number of users and monitoring performance in Amazon CloudWatch. Once you observe that CPU and memory performance are approaching their limits, you’ve reached the maximum number of users a container can support for that test in its default configuration (2 vCPU and 4 GB of memory).

Calibration process

You can begin determining the concurrent user limits for your test by using the following example:

  1. Create a test with no more than 200 users.

  2. While the test runs, monitor the CPU and Memory using the CloudWatch console:

    1. From the left navigation pane, under Container Insights, select Performance Monitoring.

    2. On the Performance monitoring page, from the left drop down menu, select ECS Clusters.

    3. From the right drop down menu, select your Amazon Elastic Container Service (Amazon ECS) cluster.

  3. While monitoring, watch the CPU and Memory. If the CPU does not surpass 75% or the Memory does not surpass 85% (ignore one-time peaks), you can run another test with a higher number of users.

Repeat steps 1-3 if the test did not exceed the resource limits. Optionally, you can increase the container resources to allow for a higher number of concurrent users. However, this results in a higher cost. For details, refer to the Developer Guide.

Note

For accurate results, run only one test at a time when determining concurrent user limits. All tests use the same cluster, and CloudWatch container insights aggregates the performance data based on the cluster. This causes both tests to be reported to CloudWatch Container Insights simultaneously, which results in inaccurate resource utilization metrics for a single test.

For more information on calibrating users per engine, refer to Calibrating a Taurus Test in the BlazeMeter documentation.

Note

The solution displays available capacity information for each region, helping you plan your test configuration within available limits.

Table of available tasks

The Table of Available Tasks displays resource availability for each selected region:

  • Region - The AWS region name.

  • vCPUs per Task - The number of virtual CPUs allocated to each task (default: 2).

  • DLT Task Limit - The maximum number of tasks that can be created based on your account’s Fargate limits (default: 2000).

  • Available DLT Tasks - The current number of tasks available for use in the region (default: 2000).

Table showing available tasks per region

To increase the number of available tasks or vCPUs per task, refer to the Developer Guide.

Test duration

Define how long your load test will run:

Ramp Up

The time to reach target concurrency. The load gradually increases from 0 to the configured concurrency level over this period.

Hold For

The duration to maintain target load. The test continues at full concurrency for this period.

Step 4: Review and create

Review all your configurations before creating the test scenario. Verify:

  • General settings (name, description, schedule).

  • Scenario configuration (test type, endpoint or script).

  • Traffic shape (tasks, users, duration, regions).

After reviewing, choose Create to save your test scenario.

Managing test scenarios

After creating a test scenario, you can:

  • Edit - Modify the test configuration. Common use cases include:

    • Refining traffic shape to achieve the desired transaction rate.

  • Copy - Duplicate an existing test scenario to create variations. Common use cases include:

    • Updating endpoints or adding headers/body parameters.

    • Adding or modifying test scripts.

  • Delete - Remove test scenarios you no longer need.
