aws-apigatewayv2websocket-sqs

Reference Documentation:

https://docs.aws.amazon.com/solutions/latest/constructs/

Language	Package
Python	`aws_solutions_constructs.aws_apigatewayv2websocket_sqs`
Typescript	`@aws-solutions-constructs/aws-apigatewayv2websocket-sqs`
Java	`software.amazon.awsconstructs.services.apigatewayv2websocketsqs`

Overview

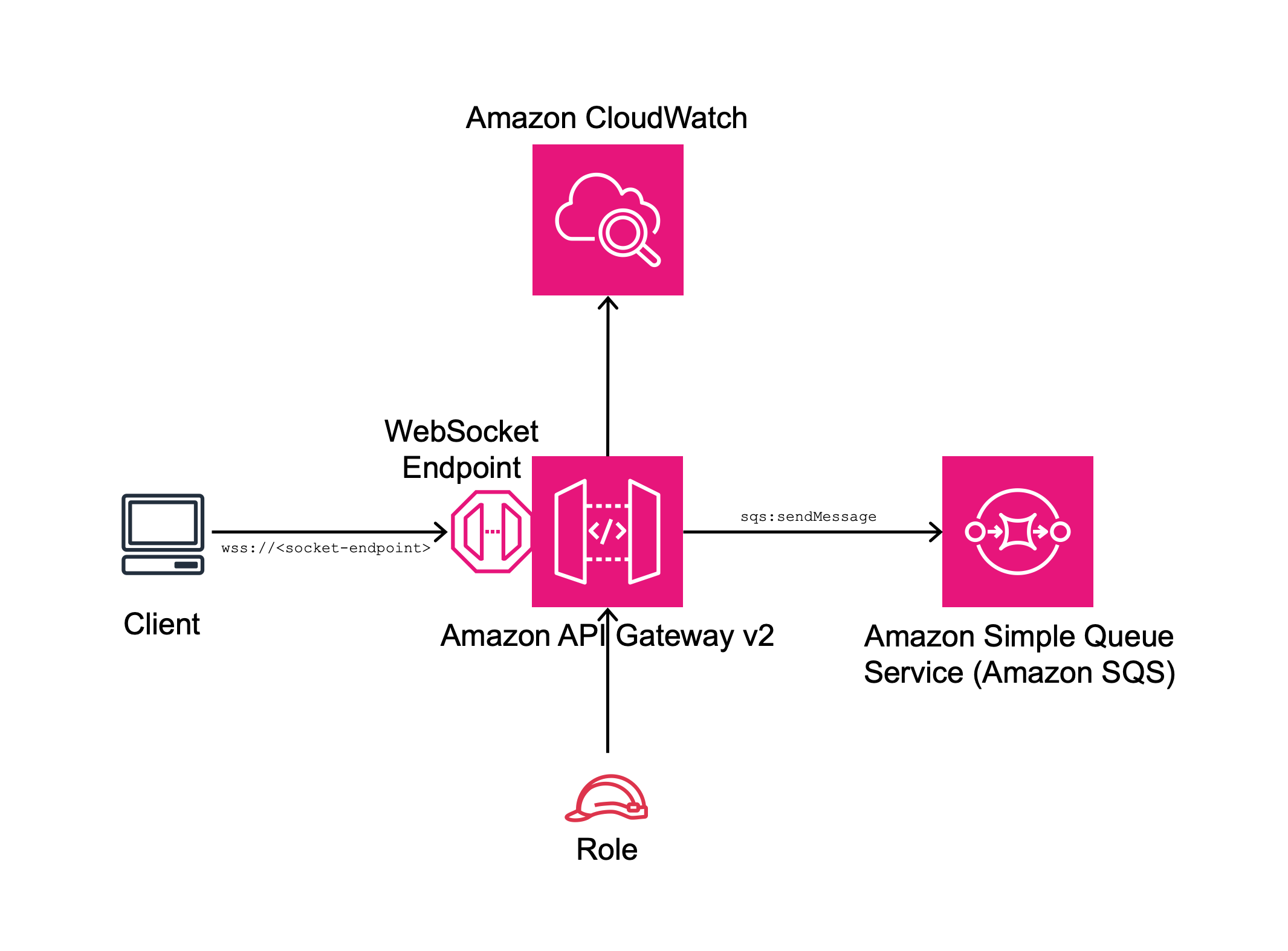

This AWS Solutions Construct implements an Amazon API Gateway WebSocket connected to an Amazon SQS queue pattern.

Here is a minimal deployable pattern definition:

Typescript


import { Construct } from "constructs";
import { Stack, StackProps } from "aws-cdk-lib";
import {
    ApiGatewayV2WebSocketToSqs,
    ApiGatewayV2WebSocketToSqsProps,
} from "@aws-solutions-constructs/aws-apigatewayv2websocket-sqs";
import { WebSocketLambdaAuthorizer } from 'aws-cdk-lib/aws-apigatewayv2-authorizers';

const authorizer = new WebSocketLambdaAuthorizer('Authorizer', authHandler);

new ApiGateApiGatewayV2WebSocketToSqswayToSqs(this, "ApiGatewayV2WebSocketToSqsPattern", {
    webSocketApiProps: {
        connectRouteOptions: {
            integration: new WebSocketLambdaIntegration("ConnectIntegration", connectLambda),
            authorizer: authorizer,
        },
        disconnectRouteOptions: {
            integration: new WebSocketLambdaIntegration("DisconnectIntegration", disconnectLambda),
        },
    },
        createDefaultRoute: true
});

Python


from aws_solutions_constructs.aws_apigateway_sqs import ApiGatewayV2WebSocketToSqs
from aws_cdk.aws_apigatewayv2_authorizers import WebSocketLambdaAuthorizer
from aws_cdk import Stack
from constructs import Construct

authorizer = WebSocketLambdaAuthorizer("Authorizer", auth_handler)

ApiGatewayV2WebSocketToSqs(self, 'ApiGatewayV2WebSocketToSqsPattern',
    connect_route_options=apigwv2.WebSocketRouteOptions(
        integration=WebSocketLambdaIntegration("ConnectIntegration", connect_lambda),
        authorizer=authorizer
    ),
    disconnect_route_options=apigwv2.WebSocketRouteOptions(
        integration=WebSocketLambdaIntegration("DisConnectIntegration", disconnect_lambda),
    ),
    create_default_route=True
)

Java


import software.constructs.Construct;

import software.amazon.awscdk.Stack;
import software.amazon.awscdk.StackProps;
import software.amazon.awscdk.aws_apigatewayv2_authorizers.*;
import software.amazon.awscdk.aws_apigatewayv2_integrations.*;
import software.amazon.awsconstructs.services.apigatewaysqs.*;

new ApiGatewayV2WebSocketToSqs(this, "ApiGatewayV2WebSocketToSqsPattern", new ApiGatewayV2WebSocketToSqsProps.Builder()
        .webSocketApiProps(new WebSocketApiProps.Builder()
                .connectRouteOptions(new WebSocketRouteOptions.builder()
                        .integration(new WebSocketLambdaIntegration("ConnectIntegration", connect_lambda)))
                .disconnectRouteOptions(new WebSocketRouteOptions.builder()
                        .integration(new WebSocketLambdaIntegration("DisConnectIntegration", disconnect_lambda)))
                .createDefaultRoute(true)
        .build());

Pattern Construct Props

Name	Type	Description
existingWebSocketApi?	`apigwv2.WebSocketApi`	Optional API Gateway WebSocket instance. Providing both existingWebSocketApi and webSocketApiProps will cause an error.
webSocketApiProps?	`apigwv2.WebSocketApiProps`	Optional user-provided props to override the default props for the API Gateway. Providing both existingWebSocketApi and webSocketApiProps will cause an error.
queueProps?	`sqs.QueueProps`	Optional user-provided props to override the default props for the queue. Providing both existingQueueObj and queueProps will cause an error.
existingQueueObj?	`sqs.Queue`	Optional existing instance of SQS Queue. Providing both existingQueueObj and queueProps will cause an error.
deployDeadLetterQueue?	`boolean`	Whether to deploy a secondary queue to be used as a dead letter queue. Defaults to `true`.
deadLetterQueueProps?	`sqs.QueueProps`	Optional properties to use for creating dead letter queue. Note that if you are creating a FIFO Queue, the dead letter queue should also be FIFO.
maxReceiveCount	`number`	The number of times a message can be unsuccessfully dequeued before being moved to the dead-letter queue.
createDefaultRoute?	`boolean`	Whether to create a default route. At least one of createDefaultRoute or customRouteName must be provided. If set to true, then it will use the value supplied with `defaultRouteRequestTemplate`.
defaultRouteRequestTemplate?	`{ [contentType: string]: string }`	Optional user provided API Gateway Request Template for the default route and/ or customRoute (if customRouteName is provided). This property will only be used if createDefaultRoute is `true`. If createDefaultRoute is `true` and this property is not provided, the construct will create the default route with the following VTL mapping `"Action=SendMessage&MessageGroupId=$input.path('$.MessageGroupId')&MessageDeduplicationId=$context.requestId&MessageAttribute.1.Name=connectionId&MessageAttribute.1.Value.StringValue=$context.connectionId&MessageAttribute.1.Value.DataType=String&MessageAttribute.2.Name=requestId&MessageAttribute.2.Value.StringValue=$context.requestId&MessageAttribute.2.Value.DataType=String&MessageBody=$util.urlEncode($input.json($util.escapeJavaScript('$').replaceAll(\"\\\\'\",\"'\")))"`.
defaultIamAuthorization?	`boolean`	Add IAM authorization to the connect$ path by default. Only set this to false if: 1) If plan to provide an authorizer with the `$connectroute`; or 2) The API should be open (no authorization) (AWS recommends against deploying unprotected APIs). If an authorizer is specified in connectRouteOptions, this parameter is ignored and no default IAM authorizer will be created.
customRouteName?	`string`	The name of the route that will be sent through WebSocketApiProps.routeSelectionExpression when invoking the WebSocket endpoint. At least one of createDefaultRoute or customRouteName must be provided. Default - None

Pattern Properties

Name	Type	Description
webSocketApi	`apigwv2.WebSocketApi`	Returns an instance of the API Gateway WebSocket API created by the pattern.
apiGatewayRole	`iam.Role`	Returns an instance of the iam.Role created by the construct for API Gateway.
webSocketStage	`apigwv2.WebSocketStage`	Returns an instance of the WebSocketStage created by the construct.
apiGatewayLogGroup	`logs.LogGroup`	Returns an instance of the LogGroup created by the construct for API Gateway access logging to CloudWatch.
sqsQueue	`sqs.Queue`	Returns an instance of the SQS queue created by the pattern.
deadLetterQueue?	`sqs.DeadLetterQueue`	Returns an instance of the DeadLetterQueue created by the pattern.
