Terms and concepts for Resource Explorer

AWS Resource Explorer is a resource search and discovery service. With Resource Explorer, you can explore your resources by using an internet search engine-like experience. You can search for your resources, such as Amazon Elastic Compute Cloud instances, Amazon Kinesis streams, or Amazon DynamoDB tables by using resource metadata like names, tags, and IDs. Resource Explorer works across AWS Regions in your account to simplify your cross-Region workloads.

Resource Explorer is available immediately when you have the appropriate permissions. Users with the permissions in the AWSResourceExplorerReadOnlyAccess managed policy can start searching for resources right away without any setup. Users with both the permissions in the AWSResourceExplorerReadOnlyAccess managed policy and the iam:CreateServiceLinkedRole permission (included in the AWSResourceExplorerFullAccess managed policy) get complete search results with automatic infrastructure creation (index and view) on first search in a Region. The iam:CreateServiceLinkedRole permission is needed only by one user initially to create the service-linked role for the account. After the service-linked role exists in the account, all users with search permission searching in a new Region can create an index and a view for full results.

Resource Explorer provides fast responses to your search queries by using indexes that are created and maintained by the AWS Resource Explorer service. Resource Explorer uses a variety of data sources to gather information about resources in your AWS account. Resource Explorer stores that information in the indexes for Resource Explorer to search.

Resource Explorer operates in two modes: automatic setup and manual setup. With automatic setup, Resource Explorer creates the necessary infrastructure (indexes and views) when you first search in a Region, provided you have the required permissions. Manual setup allows administrators to pre-configure Resource Explorer infrastructure before users begin searching.

You should understand the following concepts to successfully use AWS Resource Explorer .

Concepts

Resource Explorer administrator
Resource Explorer user
Index
View
Resource
Unified Search in the AWS Management Console
Multi-account search

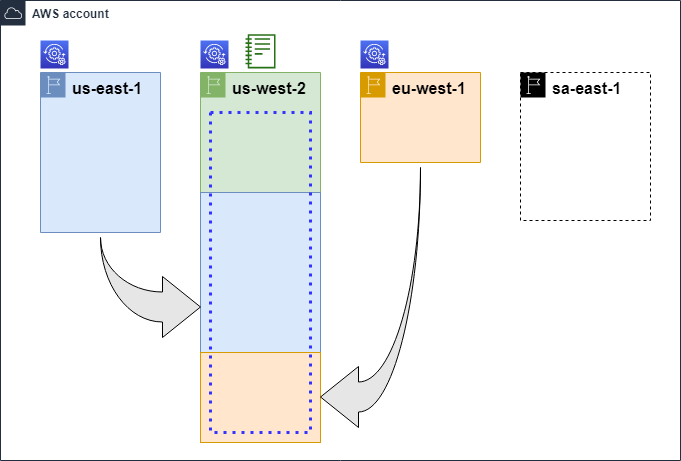

The following diagram shows three AWS Regions in which users have searched for resources, and one Region where no search has occurred yet. Regions with user-owned (local) indexes provide complete search results, while Regions with only Resource Explorer owned indexes provide partial results (all tagged resources and supported untagged resources created after the immediate resource discovery release).

In this example scenario, a user selected the US West (Oregon) Region (us-west-2) to contain the aggregator index for the account. All Regions with user-owned (local) indexes replicate their local indexes to the Region with the aggregator index.

The default view created by Resource Explorer doesn't have any filters. Therefore, results from searching with this view can include resources of any type in all Regions in the account where Resource Explorer is turned on including Tags.

4 Regions: Resource Explorer registered in 3. Default view, aggregator index, or AWS account in 1.

Legend
	Resource Explorer is set up with a user-owned (local) index in this AWS Region. Information about the Region's resources is stored in a local index in that Region. Every Region's user-owned (local) index is also replicated (indicated by the arrows) to the Region that contains the aggregator index.
	The index in this AWS Region is configured to be the aggregator index for the account. Resource Explorer replicates the resource information collected in the user-owned (local) indexes of all other Regions into the aggregator index in this Region. Searches made in this Region can include results from all Regions with user-owned (local) indexes in the account.
	The default view created by Quick Setup includes all resources in all AWS Regions with user-owned (local) indexes.

Resource Explorer administrator

A Resource Explorer administrator is an AWS Identity and Access Management (IAM) principal who has the permission to manage Resource Explorer and its settings in the AWS account. With Resource Explorer functionality available in an account by default, manual administrator setup is optional for basic functionality. Users with appropriate permissions can start searching immediately and Resource Explorer will automatically create the necessary infrastructure. The Resource Explorer administrator can configure the following features:

Complete setup for individual AWS Regions in the AWS account by creating user-owned indexes in those Regions by searching or in Settings. This provides complete search results and lets Resource Explorer discover all resources and populate the index with comprehensive information about those resources.
Enable cross-Region search by updating the index type in one AWS Region to make it the aggregator index for its AWS account.. The aggregator index in this Region receives replicated copies of the resource information from all other Regions in the account where user-owned indexes exist.
Create views that define the subset of indexed information users can search and discover in Resource Explorer.
While not part of the Resource Explorer actions, the Resource Explorer administrator must also be able to grant search permissions to the principals in the account. The administrator can grant these permissions to principals by adding the relevant permissions to existing IAM permission policies, or by using the Resource Explorer read only AWS managed policy.

To provide access, add permissions to your users, groups, or roles:
- Users and groups in AWS IAM Identity Center:

  Create a permission set. Follow the instructions in Create a permission set in the AWS IAM Identity Center User Guide.
- Users managed in IAM through an identity provider:

  Create a role for identity federation. Follow the instructions in Create a role for a third-party identity provider (federation) in the IAM User Guide.
- IAM users:
  - Create a role that your user can assume. Follow the instructions in Create a role for an IAM user in the IAM User Guide.
  - (Not recommended) Attach a policy directly to a user or add a user to a user group. Follow the instructions in Adding permissions to a user (console) in the IAM User Guide.

The administrator typically has all Resource Explorer permissions (resource-explorer-2:*) on all Resource Explorer resources, including the indexes and views. These permissions can be granted by using the Resource Explorer full access AWS managed policy.

Resource Explorer user

Resource Explorer provides three permission-based experience tiers for users:

Full Experience

Permissions: At minimum, the permissions in the AWSResourceExplorerReadOnlyAccess managed policy. If the service-linked role doesn't exist in the account, one user needs the iam:CreateServiceLinkedRole permission (included in the AWSResourceExplorerFullAccess managed policy) to create it initially

Experience: Complete single-Region resource search results with automatic updates

Enhancement: Can optionally enable cross-Region search by selecting an aggregator index

Enhanced Experience

Permissions: At minimum, the permissions in the AWSResourceExplorerReadOnlyAccess managed policy

Experience: Partial results immediately (all tagged resources and supported untagged resources created after the immediate resource discovery release)

Enhancement: Can upgrade to full experience by obtaining service-linked role creation permission or having another user with permissions create the service-linked role in the account

No Access

Permissions: Missing the permissions in the AWSResourceExplorerReadOnlyAccess managed policy

Experience: No resource search access

Enhancement: Must obtain proper permissions to access the service

A Resource Explorer user is an IAM principal that has permission to do one or more of the following tasks:

Perform a search for resources by using a view to query Resource Explorer. A Resource Explorer user wants to discover and find AWS resources and typically uses the Resource Explorer console, or the Resource Explorer Search operations provided by the AWS SDKs or the AWS CLI.

A role or user can get IAM get permission to search with one of two methods:
- The Resource Explorer read only AWS managed policy to the IAM role, group, or user.
- An IAM permission policy with a statement containing the following minimum permissions to the IAM role, group, or user.
```
{
    "Effect": "Allow",
    "Action": [
        "resource-explorer-2:Search",
        "resource-explorer-2:GetView",
    "Resource": "*"
}
```
Although typically considered an administrator task, you can delegate to trusted users the ability to define create views. To do this, the administrator can grant permission to call the resource-explorer-2:CreateView operation in an IAM permission policy attached to the relevant roles, groups, or users. If the view requires specific permissions, then provision for adding or modifying the IAM policies for the relevant users must be made.

For information about how to search for resources using Resource Explorer, see Using AWS Resource Explorer to search for resources.

Index

An index is the collection of information maintained by Resource Explorer about all of the AWS resources in one AWS Region in your AWS account. Resource Explorer updates the index automatically as you create and delete resources in your AWS account. In the earlier diagram, the boxes under the AWS Region names represent the Resource Explorer indexes maintained in each AWS Region. The index in a Region is the source of information for any views created in that Region. Users can't directly query the index. Instead, they must always query using a view.

There are three types of indexes:

Resource Explorer-owned index

A Resource Explorer owned index exists in every AWS Region and is managed by the Resource Explorer service. These indexes cannot be deleted or modified by users. Resource Explorer owned indexes provide partial search results, including all tagged resources and supported untagged resources created after the immediate resource discovery release. Users with only the permissions in the AWSResourceExplorerReadOnlyAccess managed policy access resources through these indexes.

User-owned (local) index

There is one user-owned (local) index in every AWS Region in which you complete setup for Resource Explorer. A user-owned index contains complete information about all resources in the same Region and provides full search results.

Aggregator index

The Resource Explorer administrator can also designate the index in one AWS Region to be the aggregator index for the AWS account. The aggregator index receives and stores a copy of the index for every other Region where user-owned indexes exist in the account. The aggregator index also receives and stores information about the resources in its own Region. In the earlier diagram, the Region us-west-2 contains the aggregator index for the account. The primary reason to designate an aggregator index for the account is so that you can create views that can include resources from all Regions in the account. Using an aggregator index is optional but recommended for cross-region search capabilities. There can be only one aggregator index in an AWS account.

When you complete setup for Resource Explorer, you can specify which AWS Region contains the aggregator index. You can also change the AWS Region used for the aggregator index later. For information about how to promote a local index to make it the aggregator index for its AWS account, see Enabling cross-Region search by creating an aggregator index.

After the service-linked role has been created in the account (created by a user with the iam:CreateServiceLinkedRole permission, which is included in the AWSResourceExplorerFullAccess managed policy), automatic index creation occurs when users with, at minimum, the permissions in the AWSResourceExplorerReadOnlyAccess managed policy perform their first search in a Region that doesn't have a user-index set up already. If the service-linked role doesn't exist in the account, the user needs the iam:CreateServiceLinkedRole permission to create it. After the service-linked role exists in the account, any user with, at minimum, the permissions in the AWSResourceExplorerReadOnlyAccess managed policy can trigger automatic index creation for complete search results.

An index is a resource with an Amazon resource name (ARN). However, you can use this ARN only in permission policies to grant access to operations that interact directly with the index. With those operations, you can create views and set them as the default in a Region, enable or disable Resource Explorer in a Region, and create an aggregator index for the account. The ARN of an index looks similar to the following example:


arn:aws:resource-explorer-2:us-east-1:123456789012:index/1a2b3c4d-5d6e-7f8a-9b0c-abcd11111111

View

A view is the mechanism used to query the resources listed in an index. The view defines what information in the index is visible and available for search and discovery purposes. A user never directly queries the Resource Explorer index. Instead, queries must always go through a view which lets the view creator limit which resources the user can see in search results.

For more information about views in Resource Explorer, see Working with views.

Resource

A resource is an entity in AWS that you can work with. Resources are created by AWS services as you use the features of the service. Examples include an Amazon EC2 instance, an Amazon S3 bucket, or an AWS CloudFormation stack. Some resource types can contain customer data. All resource types have attributes or metadata to describe the resource, including a name, description, and the Amazon resource name (ARN) that you use to uniquely reference a resource. Most resource types also support tags. Tags are custom metadata that you can attach to your resources for a variety of purposes, such as cost allocation in your billing, security authorization using attribute-based access control, or to support your other categorization needs.

The primary purpose of Resource Explorer is to help you find the resources that exist in your AWS account. Resource Explorer uses a variety of techniques to discover all of your resources and place information about them in an index. Then, you can query the index through whatever views that your administrator makes available to you.

Important

Resource Explorer excludes intentionally those resources types whose inclusion would expose customer data. The following resource types are not indexed by Resource Explorer and are therefore never returned in search results.

Amazon S3 objects that are contained within a bucket
Amazon DynamoDB table items
DynamoDB attribute values

Unified Search in the AWS Management Console

At the top of the AWS Management Console, in every AWS service, there is a search bar that you can use to search for a variety of AWS related things. You can search for services and features, and get links directly to the relevant page in that service's console. You can also search for documentation and blog articles related to your search term.

Unified Search automatically uses the default view in the AWS Region that contains the aggregator index for the account or the default or service view per Region. This lets you search for a resource from any page in the AWS Management Console, without having to first open Resource Explorer.

Important

Unified Search automatically inserts a wildcard character (*) operator at the end of the first keyword in the string. This means that unified search results include resources that match any string that starts with the specified keyword.

The search performed by the Query text box on the Resource search page in the Resource Explorer console does not automatically append a wildcard character. You can insert a * manually after any term in the search string.

For more information about Unified Search and its integration with Resource Explorer, see Using Unified Search in the AWS Management Console.

Multi-account search

With multi-account search, you can search and discover resources across AWS Organizations and AWS Regions with a single keyword search.

For more information about multi-account search and how to enable it for Resource Explorer, see Turning on multi-account search.
