Configuração de teste com o Amazon EC2

O Amazon Elastic Compute Cloud (Amazon EC2) oferece uma capacidade de computação escalável na Nuvem Amazon Web Services. É possível usar o Amazon EC2 para executar quantos servidores virtuais forem necessários, configurar a segurança e as redes e gerenciar o armazenamento. Nessa configuração, usamos o Fleet Manager, um recurso do AWS Systems Manager, para estabelecer uma conexão com uma instância do Windows do Amazon EC2 usando o Remote Desktop Protocol (RDP).

Este guia demonstra um ambiente de teste para configurar e experimentar uma conexão do Acesso Privado ao Console de gerenciamento da AWS com o Amazon Simple Storage Service por meio de uma instância do Amazon EC2. Este tutorial é usa o CloudFormation para criar e definir a configuração de rede a ser usada pelo Amazon EC2 para visualizar esse recurso.

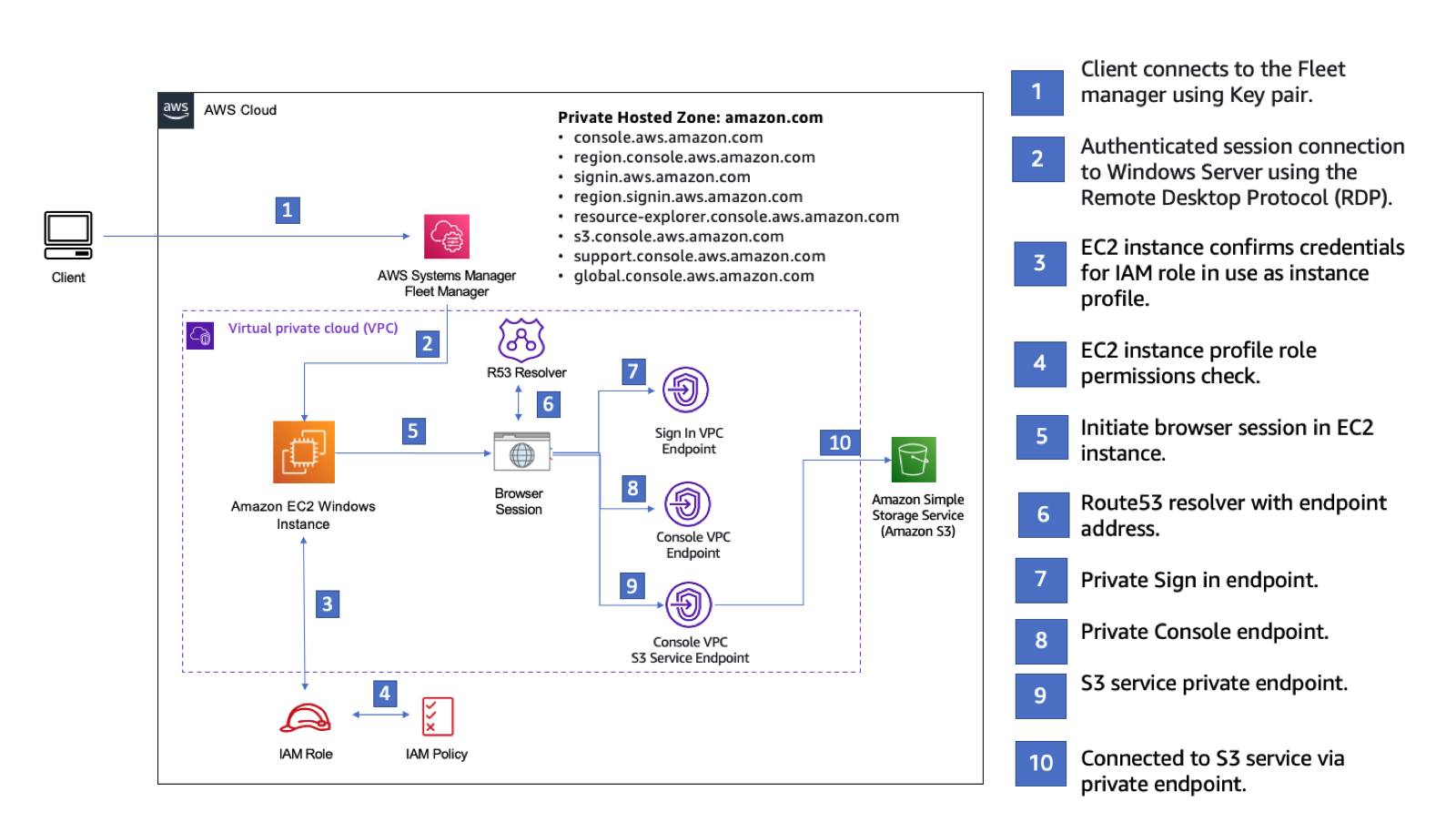

O diagrama a seguir descreve o fluxo de trabalho para acessar uma configuração do Acesso Privado ao Console de gerenciamento da AWS por meio do Amazon EC2. Mostra como um usuário está conectado ao Amazon S3 usando um endpoint privado.

A definição da configuração para testar o Acesso Privado ao Console de gerenciamento da AWS usando um Amazon EC2.

Copie o modelo do CloudFormation a seguir e salve-o em um arquivo que você usará na etapa três do procedimento Para configurar uma rede.

nota

Esse modelo do CloudFormation usa configurações que não são compatíveis no momento com a região de Israel (Tel Aviv).

Description: |
  AWS Management Console Private Access.
Parameters:
  VpcCIDR:
    Type: String
    Default: 172.16.0.0/16
    Description: CIDR range for VPC

  Ec2KeyPair:
    Type: AWS::EC2::KeyPair::KeyName
    Description: The EC2 KeyPair to use to connect to the Windows instance

  PublicSubnet1CIDR:
    Type: String
    Default: 172.16.1.0/24
    Description: CIDR range for Public Subnet A

  PublicSubnet2CIDR:
    Type: String
    Default: 172.16.0.0/24
    Description: CIDR range for Public Subnet B

  PublicSubnet3CIDR:
    Type: String
    Default: 172.16.2.0/24
    Description: CIDR range for Public Subnet C

  PrivateSubnet1CIDR:
    Type: String
    Default: 172.16.4.0/24
    Description: CIDR range for Private Subnet A

  PrivateSubnet2CIDR:
    Type: String
    Default: 172.16.5.0/24
    Description: CIDR range for Private Subnet B

  PrivateSubnet3CIDR:
    Type: String
    Default: 172.16.3.0/24
    Description: CIDR range for Private Subnet C

  LatestWindowsAmiId:
    Type: 'AWS::SSM::Parameter::Value<AWS::EC2::Image::Id>'
    Default: '/aws/service/ami-windows-latest/Windows_Server-2022-English-Full-Base'

  InstanceTypeParameter:
    Type: String
    Default: 't3.medium'


Resources:

#########################
# VPC AND SUBNETS
#########################

  AppVPC:
    Type: 'AWS::EC2::VPC'
    Properties:
      CidrBlock: !Ref VpcCIDR
      InstanceTenancy: default
      EnableDnsSupport: true
      EnableDnsHostnames: true

  PublicSubnetA:
    Type: 'AWS::EC2::Subnet'
    Properties:
      VpcId: !Ref AppVPC
      CidrBlock: !Ref PublicSubnet1CIDR
      MapPublicIpOnLaunch: true
      AvailabilityZone:
        Fn::Select:
          - 0
          - Fn::GetAZs: ""

  PublicSubnetB:
    Type: 'AWS::EC2::Subnet'
    Properties:
      VpcId: !Ref AppVPC
      CidrBlock: !Ref PublicSubnet2CIDR
      MapPublicIpOnLaunch: true
      AvailabilityZone:
        Fn::Select:
          - 1
          - Fn::GetAZs: ""

  PublicSubnetC:
    Type: 'AWS::EC2::Subnet'
    Properties:
      VpcId: !Ref AppVPC
      CidrBlock: !Ref PublicSubnet3CIDR
      MapPublicIpOnLaunch: true
      AvailabilityZone:
        Fn::Select:
          - 2
          - Fn::GetAZs: ""

  PrivateSubnetA:
    Type: 'AWS::EC2::Subnet'
    Properties:
      VpcId: !Ref AppVPC
      CidrBlock: !Ref PrivateSubnet1CIDR
      AvailabilityZone:
        Fn::Select:
          - 0
          - Fn::GetAZs: ""

  PrivateSubnetB:
    Type: 'AWS::EC2::Subnet'
    Properties:
      VpcId: !Ref AppVPC
      CidrBlock: !Ref PrivateSubnet2CIDR
      AvailabilityZone:
        Fn::Select:
          - 1
          - Fn::GetAZs: ""

  PrivateSubnetC:
    Type: 'AWS::EC2::Subnet'
    Properties:
      VpcId: !Ref AppVPC
      CidrBlock: !Ref PrivateSubnet3CIDR
      AvailabilityZone:
        Fn::Select:
          - 2
          - Fn::GetAZs: ""

  InternetGateway:
    Type: AWS::EC2::InternetGateway

  InternetGatewayAttachment:
    Type: AWS::EC2::VPCGatewayAttachment
    Properties:
      InternetGatewayId: !Ref InternetGateway
      VpcId: !Ref AppVPC

  NatGatewayEIP:
    Type: AWS::EC2::EIP
    DependsOn: InternetGatewayAttachment

  NatGateway:
    Type: AWS::EC2::NatGateway
    Properties:
      AllocationId: !GetAtt NatGatewayEIP.AllocationId
      SubnetId: !Ref PublicSubnetA

#########################
# Route Tables
#########################

  PrivateRouteTable:
    Type: 'AWS::EC2::RouteTable'
    Properties:
      VpcId: !Ref AppVPC

  DefaultPrivateRoute:
    Type: AWS::EC2::Route
    Properties:
      RouteTableId: !Ref PrivateRouteTable
      DestinationCidrBlock: 0.0.0.0/0
      NatGatewayId: !Ref NatGateway

  PrivateSubnetRouteTableAssociation1:
    Type: 'AWS::EC2::SubnetRouteTableAssociation'
    Properties:
      RouteTableId: !Ref PrivateRouteTable
      SubnetId: !Ref PrivateSubnetA

  PrivateSubnetRouteTableAssociation2:
    Type: 'AWS::EC2::SubnetRouteTableAssociation'
    Properties:
      RouteTableId: !Ref PrivateRouteTable
      SubnetId: !Ref PrivateSubnetB

  PrivateSubnetRouteTableAssociation3:
    Type: 'AWS::EC2::SubnetRouteTableAssociation'
    Properties:
      RouteTableId: !Ref PrivateRouteTable
      SubnetId: !Ref PrivateSubnetC

  PublicRouteTable:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref AppVPC

  DefaultPublicRoute:
    Type: AWS::EC2::Route
    DependsOn: InternetGatewayAttachment
    Properties:
      RouteTableId: !Ref PublicRouteTable
      DestinationCidrBlock: 0.0.0.0/0
      GatewayId: !Ref InternetGateway

  PublicSubnetARouteTableAssociation1:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId: !Ref PublicRouteTable
      SubnetId: !Ref PublicSubnetA

  PublicSubnetBRouteTableAssociation2:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId: !Ref PublicRouteTable
      SubnetId: !Ref PublicSubnetB

  PublicSubnetBRouteTableAssociation3:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId: !Ref PublicRouteTable
      SubnetId: !Ref PublicSubnetC


#########################
# SECURITY GROUPS
#########################

  VPCEndpointSecurityGroup:
    Type: 'AWS::EC2::SecurityGroup'
    Properties:
      GroupDescription: Allow TLS for VPC Endpoint
      VpcId: !Ref AppVPC
      SecurityGroupIngress:
        - IpProtocol: tcp
          FromPort: 443
          ToPort: 443
          CidrIp: !GetAtt AppVPC.CidrBlock

  EC2SecurityGroup:
    Type: 'AWS::EC2::SecurityGroup'
    Properties:
      GroupDescription: Default EC2 Instance SG
      VpcId: !Ref AppVPC

#########################
# VPC ENDPOINTS
#########################

  VPCEndpointGatewayS3:
    Type: 'AWS::EC2::VPCEndpoint'
    Properties:
      ServiceName: !Sub 'com.amazonaws.${AWS::Region}.s3'
      VpcEndpointType: Gateway
      VpcId: !Ref AppVPC
      RouteTableIds:
        - !Ref PrivateRouteTable

  VPCEndpointInterfaceSSM:
    Type: 'AWS::EC2::VPCEndpoint'
    Properties:
      VpcEndpointType: Interface
      PrivateDnsEnabled: false
      SubnetIds:
        - !Ref PrivateSubnetA
        - !Ref PrivateSubnetB
      SecurityGroupIds:
        - !Ref VPCEndpointSecurityGroup
      ServiceName: !Sub 'com.amazonaws.${AWS::Region}.ssm'
      VpcId: !Ref AppVPC

  VPCEndpointInterfaceEc2messages:
    Type: 'AWS::EC2::VPCEndpoint'
    Properties:
      VpcEndpointType: Interface
      PrivateDnsEnabled: false
      SubnetIds:
        - !Ref PrivateSubnetA
        - !Ref PrivateSubnetB
        - !Ref PrivateSubnetC
      SecurityGroupIds:
        - !Ref VPCEndpointSecurityGroup
      ServiceName: !Sub 'com.amazonaws.${AWS::Region}.ec2messages'
      VpcId: !Ref AppVPC

  VPCEndpointInterfaceSsmmessages:
    Type: 'AWS::EC2::VPCEndpoint'
    Properties:
      VpcEndpointType: Interface
      PrivateDnsEnabled: false
      SubnetIds:
        - !Ref PrivateSubnetA
        - !Ref PrivateSubnetB
        - !Ref PrivateSubnetC
      SecurityGroupIds:
        - !Ref VPCEndpointSecurityGroup
      ServiceName: !Sub 'com.amazonaws.${AWS::Region}.ssmmessages'
      VpcId: !Ref AppVPC

  VPCEndpointInterfaceSignin:
    Type: 'AWS::EC2::VPCEndpoint'
    Properties:
      VpcEndpointType: Interface
      PrivateDnsEnabled: false
      SubnetIds:
        - !Ref PrivateSubnetA
        - !Ref PrivateSubnetB
        - !Ref PrivateSubnetC
      SecurityGroupIds:
        - !Ref VPCEndpointSecurityGroup
      ServiceName: !Sub 'com.amazonaws.${AWS::Region}.signin'
      VpcId: !Ref AppVPC

  VPCEndpointInterfaceConsole:
    Type: 'AWS::EC2::VPCEndpoint'
    Properties:
      VpcEndpointType: Interface
      PrivateDnsEnabled: false
      SubnetIds:
        - !Ref PrivateSubnetA
        - !Ref PrivateSubnetB
        - !Ref PrivateSubnetC
      SecurityGroupIds:
        - !Ref VPCEndpointSecurityGroup
      ServiceName: !Sub 'com.amazonaws.${AWS::Region}.console'
      VpcId: !Ref AppVPC

#########################
# ROUTE53 RESOURCES
#########################

  ConsoleHostedZone:
    Type: "AWS::Route53::HostedZone"
    Properties:
      HostedZoneConfig:
        Comment: 'Console VPC Endpoint Hosted Zone'
      Name: 'console.aws.amazon.com'
      VPCs:
        -
          VPCId: !Ref AppVPC
          VPCRegion: !Ref "AWS::Region"

  ConsoleRecordGlobal:
    Type: AWS::Route53::RecordSet
    Properties:
      HostedZoneId: !Ref 'ConsoleHostedZone'
      Name: 'console.aws.amazon.com'
      AliasTarget:
        DNSName: !Select ['1', !Split [':', !Select ['0', !GetAtt VPCEndpointInterfaceConsole.DnsEntries]]]
        HostedZoneId: !Select ['0', !Split [':', !Select ['0', !GetAtt VPCEndpointInterfaceConsole.DnsEntries]]]
      Type: A

  GlobalConsoleRecord:
    Type: AWS::Route53::RecordSet
    Properties:
      HostedZoneId: !Ref 'ConsoleHostedZone'
      Name: 'global.console.aws.amazon.com'
      AliasTarget:
        DNSName: !Select ['1', !Split [':', !Select ['0', !GetAtt VPCEndpointInterfaceConsole.DnsEntries]]]
        HostedZoneId: !Select ['0', !Split [':', !Select ['0', !GetAtt VPCEndpointInterfaceConsole.DnsEntries]]]
      Type: A

  ConsoleS3ProxyRecordGlobal:
    Type: AWS::Route53::RecordSet
    Properties:
      HostedZoneId: !Ref 'ConsoleHostedZone'
      Name: 's3.console.aws.amazon.com'
      AliasTarget:
        DNSName: !Select ['1', !Split [':', !Select ['0', !GetAtt VPCEndpointInterfaceConsole.DnsEntries]]]
        HostedZoneId: !Select ['0', !Split [':', !Select ['0', !GetAtt VPCEndpointInterfaceConsole.DnsEntries]]]
      Type: A

  ConsoleSupportProxyRecordGlobal:
    Type: AWS::Route53::RecordSet
    Properties:
      HostedZoneId: !Ref 'ConsoleHostedZone'
      Name: "support.console.aws.amazon.com"
      AliasTarget:
        DNSName: !Select ['1', !Split [':', !Select ['0', !GetAtt VPCEndpointInterfaceConsole.DnsEntries]]]
        HostedZoneId: !Select ['0', !Split [':', !Select ['0', !GetAtt VPCEndpointInterfaceConsole.DnsEntries]]]
      Type: A

  ExplorerProxyRecordGlobal:
    Type: AWS::Route53::RecordSet
    Properties:
      HostedZoneId: !Ref 'ConsoleHostedZone'
      Name: "resource-explorer.console.aws.amazon.com"
      AliasTarget:
        DNSName: !Select ['1', !Split [':', !Select ['0', !GetAtt VPCEndpointInterfaceConsole.DnsEntries]]]
        HostedZoneId: !Select ['0', !Split [':', !Select ['0', !GetAtt VPCEndpointInterfaceConsole.DnsEntries]]]
      Type: A

  WidgetProxyRecord:
    Type: AWS::Route53::RecordSet
    Properties:
      HostedZoneId: !Ref 'ConsoleHostedZone'
      Name: "*.widget.console.aws.amazon.com"
      AliasTarget:
        DNSName: !Select ["1", !Split [":", !Select ["0", !GetAtt VPCEndpointInterfaceConsole.DnsEntries],],]
        HostedZoneId: !Select ["0", !Split [":", !Select ["0", !GetAtt VPCEndpointInterfaceConsole.DnsEntries],],]
      Type: A

  ConsoleRecordRegional:
    Type: AWS::Route53::RecordSet
    Properties:
      HostedZoneId: !Ref 'ConsoleHostedZone'
      Name: !Sub "${AWS::Region}.console.aws.amazon.com"
      AliasTarget:
        DNSName: !Select ['1', !Split [':', !Select ['0', !GetAtt VPCEndpointInterfaceConsole.DnsEntries]]]
        HostedZoneId: !Select ['0', !Split [':', !Select ['0', !GetAtt VPCEndpointInterfaceConsole.DnsEntries]]]
      Type: A

  ConsoleRecordRegionalMultiSession:
    Type: AWS::Route53::RecordSet
    Properties:
      HostedZoneId: !Ref 'ConsoleHostedZone'
      Name: !Sub "*.${AWS::Region}.console.aws.amazon.com"
      AliasTarget:
        DNSName: !Select ['1', !Split [':', !Select ['0', !GetAtt VPCEndpointInterfaceConsole.DnsEntries]]]
        HostedZoneId: !Select ['0', !Split [':', !Select ['0', !GetAtt VPCEndpointInterfaceConsole.DnsEntries]]]
      Type: A

  SigninHostedZone:
    Type: "AWS::Route53::HostedZone"
    Properties:
      HostedZoneConfig:
        Comment: 'Signin VPC Endpoint Hosted Zone'
      Name: 'signin.aws.amazon.com'
      VPCs:
        -
          VPCId: !Ref AppVPC
          VPCRegion: !Ref "AWS::Region"

  SigninRecordGlobal:
    Type: AWS::Route53::RecordSet
    Properties:
      HostedZoneId: !Ref 'SigninHostedZone'
      Name: 'signin.aws.amazon.com'
      AliasTarget:
        DNSName: !Select ['1', !Split [':', !Select ['0', !GetAtt VPCEndpointInterfaceSignin.DnsEntries]]]
        HostedZoneId: !Select ['0', !Split [':', !Select ['0', !GetAtt VPCEndpointInterfaceSignin.DnsEntries]]]
      Type: A

  SigninRecordRegional:
    Type: AWS::Route53::RecordSet
    Properties:
      HostedZoneId: !Ref 'SigninHostedZone'
      Name: !Sub "${AWS::Region}.signin.aws.amazon.com"
      AliasTarget:
        DNSName: !Select ['1', !Split [':', !Select ['0', !GetAtt VPCEndpointInterfaceSignin.DnsEntries]]]
        HostedZoneId: !Select ['0', !Split [':', !Select ['0', !GetAtt VPCEndpointInterfaceSignin.DnsEntries]]]
      Type: A

#########################
# EC2 INSTANCE
#########################

  Ec2InstanceRole:
    Type: AWS::IAM::Role
    Properties:
      AssumeRolePolicyDocument:
        Version: 2012-10-17
        Statement:
          -
            Effect: Allow
            Principal:
              Service:
                - ec2.amazonaws.com
            Action:
              - sts:AssumeRole
      Path: /
      ManagedPolicyArns:
        - arn:aws:iam::aws:policy/AmazonSSMManagedInstanceCore

  Ec2InstanceProfile:
    Type: AWS::IAM::InstanceProfile
    Properties:
      Path: /
      Roles:
       - !Ref Ec2InstanceRole

  EC2WinInstance:
    Type: 'AWS::EC2::Instance'
    Properties:
      ImageId: !Ref LatestWindowsAmiId
      IamInstanceProfile: !Ref Ec2InstanceProfile
      KeyName: !Ref Ec2KeyPair
      InstanceType:
        Ref: InstanceTypeParameter
      SubnetId: !Ref PrivateSubnetA
      SecurityGroupIds:
        - Ref: EC2SecurityGroup
      BlockDeviceMappings:
        - DeviceName: /dev/sda1
          Ebs:
            VolumeSize: 50
      Tags:
      - Key: "Name"
        Value: "Console VPCE test instance"
Para configurar uma rede

  1. Faça login na conta de gerenciamento da organização e abra o console do CloudFormation.

  2. Selecione Criar pilha.

  3. Escolha With new resources (standard) (Com novos recursos [padrão]). Faça upload do arquivo de modelo do CloudFormation que você criou anteriormente e escolha Próximo.

  4. Insira um nome para a pilha, por exemplo PrivateConsoleNetworkForS3, e escolha Próximo.

  5. Em VPC e sub-redes, insira os intervalos CIDR de IP de sua preferência ou use os valores padrão fornecidos. Se você usar os valores padrão, verifique se eles não se sobrepõem aos recursos de VPC existentes em sua Conta da AWS.

  6. Para o parâmetro Ec2KeyPair, selecione um dos pares de chaves do Amazon EC2 existentes em sua conta. Se você ainda não tiver um par de chaves do Amazon EC2, deverá criar um antes de passar para a próxima etapa. Para ter mais informações, consulte Criar um par de chaves usando o Amazon EC2 no Guia do usuário do Amazon EC2.

  7. Selecione Criar pilha.

  8. Depois que a pilha for criada, escolha a guia Recursos para ver os recursos que foram criados.

Para se conectar à instância do Amazon EC2

  1. Faça login na conta de gerenciamento da organização e abra o console do Amazon EC2.

  2. No painel de navegação, escolha Instâncias.

  3. Na página Instâncias, selecione Instância de teste do Console VPCE que foi criada pelo modelo do CloudFormation. Depois, escolha Conectar.

    nota

    Este exemplo usa o Fleet Manager, um recurso do AWS Systems Manager Explorer, para se conectar ao Windows Server. Pode levar alguns minutos até a conexão ser iniciada.

  4. Na página Conectar-se à instância, escolha Cliente RDP e Conectar-se usando o Fleet Manager.

  5. Escolha Fleet Manager: área de trabalho remota.

  6. Para obter a senha administrativa da instância do Amazon EC2 e acessar a área de trabalho do Windows usando a interface da web, utilize a chave privada associada ao par de chaves do Amazon EC2 que você usou ao criar o modelo do CloudFormation.

  7. Na instância do Windows do Amazon EC2, abra o Console de gerenciamento da AWS no navegador.

  8. Depois de fazer login com suas credenciais da AWS, abra o console do Amazon S3 e verifique se você está conectado usando o Acesso Privado ao Console de gerenciamento da AWS.

Para testar a configuração do Acesso Privado ao Console de gerenciamento da AWS

  1. Faça login na conta de gerenciamento da organização e abra o console do Amazon S3.

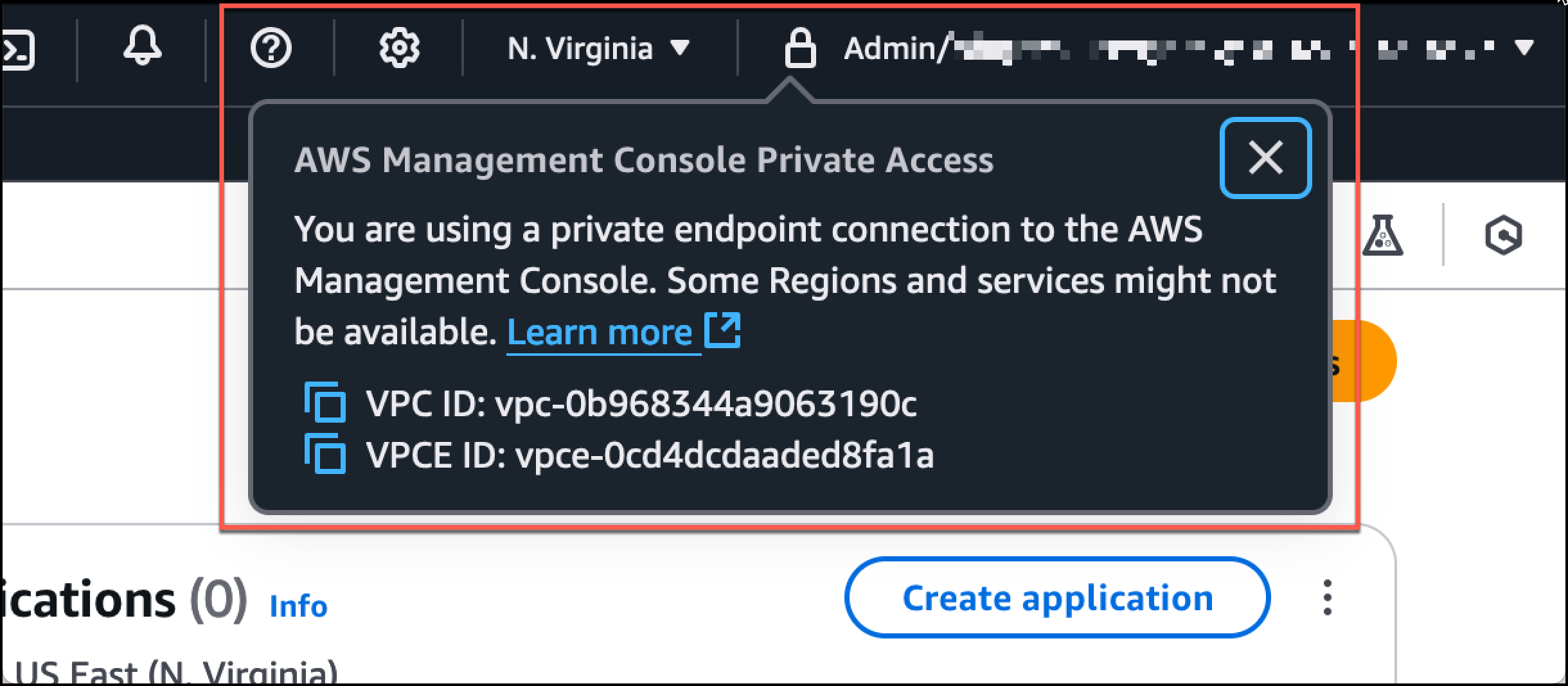

  2. Selecione o ícone de cadeado na barra de navegação para ver o endpoint da VPC em uso. A captura de tela a seguir mostra a localização do ícone de cadeado e as informações da VPC.

    O console do Amazon S3 mostrando o ícone de cadeado e as informações de Acesso Privado ao Console de gerenciamento da AWS.
