Workloads OU – Application account

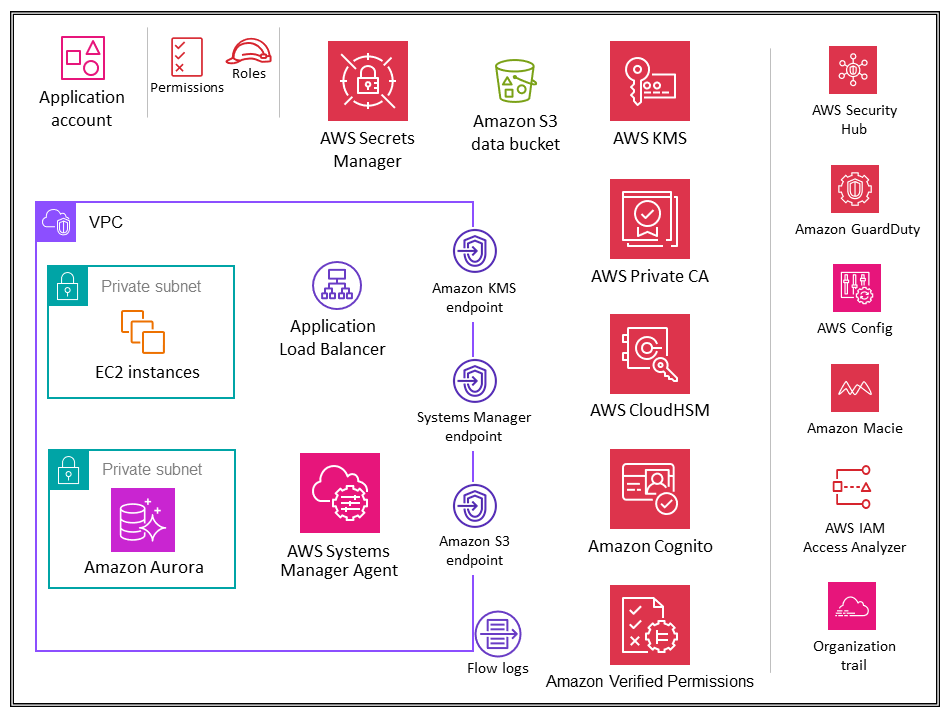

The following diagram illustrates the AWS security services that are configured in the Application account (along with the application itself).
The Application account hosts the primary infrastructure and services to run and maintain an enterprise application. The Application account and Workloads OU serve a few primary security objectives. Each application SHOULD reside in its own AWS account (per environment). Applications SHOULD NOT share accounts, roles, data stores, or Amazon GuardDuty, AWS Config, AWS Security Hub CSPM, Amazon EventBridge, IAM Access Analyzer), which are configured and monitored by the security team. Finally, you enable your enterprise to set controls centrally. You align the application account to the broader security structure by making it a member of the Workloads OU through which it inherits appropriate service permissions, constraints, and guardrails.
Design consideration:
In your organization you are likely to have more than one business application. The Workloads OU is intended to house most of your business-specific workloads, including both production and non-production environments. These workloads can be a mix of commercial off-the-shelf (COTS) applications and your own internally developed custom applications and data services. There are a few patterns for organizing different business applications along with their development environments. One pattern is to have multiple child OUs based on your development environment, such as production, staging, test, and development, and to use separate child AWS accounts under those OUs that pertain to different applications. Another common pattern is to have separate child OUs per application and then use separate child AWS accounts for individual development environments. The exact OU and account structure depends on your application design and the teams that manage those applications. Environment- or application-class controls SHOULD be implemented as service control policies (SCPs) attached to the corresponding OU rather than per account. For further considerations on organizing workload-oriented OUs, see the Application OUs section of the AWS whitepaper Organizing your AWS environment using multiple accounts.
Application VPC
The virtual private cloud (VPC) in the Application account needs both inbound access (for the simple web services that you are modeling) and outbound access (for application needs or AWS service needs). By default, resources inside a VPC are routable to one another. The workload uses Amazon Elastic Compute Cloud (Amazon EC2) (Application layer) andAmazon Aurora (database layer). Network segmentation between different tiers, such as the application tier and database tier, is accomplished through VPC security groups, which restrict traffic at the instance level. For resiliency, the workload spans two or more Availability Zones and utilizes two subnets per zone.
Design consideration:
You can use Traffic MirroringAmazon VPC flow logs do not capture mirrored traffic; they generally capture information from packet headers only. Traffic Mirroring provides deeper insight into the network traffic by allowing you to analyze actual traffic content, including payload. Enable Traffic Mirroring only for the elastic network interface of EC2 instances that might be operating as part of sensitive workloads or for which you expect to need detailed diagnostics in the event of an issue.
VPC endpoints
VPC endpoints provide another layer of security control as well as scalability and reliability. Application VPCs SHOULD use VPC endpoints to reach AWS services instead of internet or NAT paths (In the Application account, the AWS SRA employs VPC endpoints for AWS KMS, AWS Systems Manager, and Amazon S3.) Endpoints are virtual devices. They are horizontally scaled, redundant, and highly available VPC components. They allow communication between instances in your VPC and services without imposing availability risks or bandwidth constraints on your network traffic. You can use a VPC endpoint to privately connect your VPC to supported AWS services and VPC endpoint services powered by AWS PrivateLink without requiring an internet gateway, NAT device, VPN connection, or AWS Direct Connect connection. Instances in your VPC do not require public IP addresses to communicate with other AWS services. Traffic between your VPC and the other AWS service does not leave the Amazon network.
Another benefit of using VPC endpoints is to enable the configuration of endpoint policies. A VPC endpoint policy is a resource based policy that you attach to an endpoint when you create or modify the endpoint. If you do not attach a resource policy when you create an endpoint, AWS attaches a default resource policy for you that allows full access to the service. VPC endpoints SHOULD have endpoint policies that restrict access to required principals, actions, and resources. Endpoints SHOULD NOT rely on the default full-access policy. An endpoint policy does not override or replace IAM user policies or service-specific resource policies (such as S3 bucket policies). It is a separate policy for controlling access from the endpoint to the specified service. In this way, it adds another layer of control over which AWS principals can communicate with resources or services.
Amazon EC2
The Amazon EC2
Workload segments within an account SHOULD be isolated in separate VPCs. Use subnets to isolate the tiers of your application (for example, web, application, and database) within a single VPC. Instances that do not require direct internet access MUST be placed in private subnets. To call the Amazon EC2 API from your private subnet without using an internet gateway, use AWS PrivateLink. Security groups MUST restrict inbound access to only required sources and ports. You SHOULD use VPC Flow Logs to monitor the traffic that reaches your instances and deliver logs to the Log Archive account. Remote instance access SHOULD use Systems Manager Session Manager. Inbound SSH/RDP ports SHOULD NOT be open to the internet. Use separate Amazon Elastic Block Store (Amazon EBS) volumes for the operating system and your data. EBS encryption by default MUST be enabled in every account and Region.
Implementation example:
The AWS SRA code library
provides a sample implementation of default Amazon EBS encryption in Amazon EC2 . It demonstrates how you can enable the account-level default Amazon EBS encryption within each AWS account and AWS Region in the AWS organization.
AWS Nitro Enclaves
AWS Nitro Enclaves
Cryptographic attestation is a process used to prove the identity of an enclave. The attestation process is accomplished through the Nitro Hypervisor, which produces a signed attestation document for the enclave to prove its identity to a third party or service. Attestation documents contain key details of the enclave, such as the enclave's public key and hashes of the enclave image and applications.
With AWS Certificate Manager (ACM) for Nitro Enclaves, you can use public and private SSL/TLS certificates with your web applications and web servers running on EC2 instances with Nitro Enclaves. SSL/TLS certificates are used to secure network communications and to establish the identity of websites over the internet and resources on private networks. ACM for Nitro Enclaves removes the time-consuming and error-prone manual process of purchasing, uploading, and renewing SSL/TLS certificates. ACM for Nitro Enclaves creates secure private keys, distributes the certificate and its private key to your enclave, and manages certificate renewals. With ACM for Nitro Enclaves, the certificate's private key remains isolated in the enclave, which prevents the instance and its users from accessing it. For more information, see AWS Certificate Manager for Nitro Enclaves in the Nitro Enclaves documentation.
Application Load Balancers
Application Load Balancers
AWS Certificate Manager (ACM) natively integrates with Application Load Balancers, and the AWS SRA uses ACM to generate and manage the necessary X.509 (TLS server) public certificates. Application Load Balancer security policies MUST enforce TLS 1.2 or later with strong ciphers. For more information, see the Elastic Load Balancing documentation.
Design considerations:
For common scenarios such as strictly internal applications that require a private TLS certificate on the Application Load Balancer, you can use ACM within this account to generate a private certificate from AWS Private CA. In the AWSAWS Private CAAWS organization or with specific AWS accounts to issue end-entity certificates, as described earlier in the Security Tooling account section.
For public certificates, you SHOULD use ACM to generate those certificates and manage them, including automated rotation. Alternatively, you MAY generate your own certificates by using SSL/TLS tools to create a certificate signing request (CSR), get the CSR signed by a certificate authority (CA) to produce a certificate, and then import the certificate into ACM or upload the certificate to IAM for use with the Application Load Balancer. If you import a certificate into ACM, you MUST monitor the expiration date of the certificate and renew it before it expires.
Internet-facing Application Load Balancers SHOULD be protected by AWS WAF. Having edge policies, application policies, and even private or internal policy enforcement layers adds to the visibility of communication requests and provides unified policy enforcement. For more information, see the blog post Deploying defense in depth using AWS Managed Rules for AWS WAF
.
AWS Private CA
AWS Private Certificate Authority (AWS Private CA) generates private certificates for use with an Application Load Balancer. It is a common scenario for Application Load Balancers to serve secure content over TLS. This requires TLS certificates to be installed on the Application Load Balancer. For applications that are strictly internal, private TLS certificates can provide the secure channel.
In the AWS SRA, AWS Private CA is hosted in the Security Tooling account and is shared out to the Application account by using AWS RAM). This allows developers in an Application account to request a certificate from a shared private CA. Sharing CAs across your organization or across AWS accounts helps reduce the cost and complexity of creating and managing duplicate CAs in all your AWS accounts. When you use ACM to issue private certificates from a shared CA, the certificate is generated locally in the requesting account, and ACM provides full lifecycle management and renewal.
Amazon Inspector
The AWS SRA uses Amazon Inspector
Amazon Inspector is placed in the Application account, because it provides vulnerability management services to EC2 instances in this account. Additionally, Amazon Inspector reports on unwanted network paths to and from EC2 instances.
Amazon Inspector in member accounts is centrally managed by the delegated administrator account. In the AWS SRA, the Security Tooling account is the delegated administrator account. The delegated administrator account can manage findings data and certain settings for members of the organization. This includes viewing aggregated findings details for all member accounts, enabling or disabling scans for member accounts, and reviewing scanned resources within the AWS organization.
Design consideration:
Critical vulnerabilities found by Amazon Inspector SHOULD be remediated through Patch Manager within the organization's defined SLA. Patch Manager helps you patch those vulnerabilities without having to wait for your normal patching schedule. The remediation is carried out by using the Systems Manager Automation runbook. For more information, see the two-part blog series Automate vulnerability management and remediation in AWS using Amazon Inspector and AWS Systems Manager
.
AWS Systems Manager
AWS Systems Manager
In addition to these general automation capabilities, Systems Manager supports a number of preventive, detective, and responsive security features. AWS Systems Manager Agent (SSM Agent) is AWS software that can be installed and configured on an EC2 instance, an on-premises server, or a virtual machine (VM). SSM Agent makes it possible for Systems Manager to update, manage, and configure these resources. Systems Manager helps you maintain security and compliance by scanning these managed instances and reporting (or taking corrective action) on any violations it detects in your patch, configuration, and custom policies.
The AWS SRA uses Session Manager, a capability of Systems Manager, to provide an interactive, browser-based shell and CLI experience. This provides secure and auditable instance management without the need to open inbound ports, maintain bastion hosts, or manage SSH keys. The AWS SRA uses Patch Manager, a capability of Systems Manager, to apply patches to EC2 instances for both operating systems and applications.
The AWS SRA also uses Automation, a capability of Systems Manager, to simplify common maintenance and deployment tasks of Amazon EC2 instances and other AWS resources. Automation can simplify common IT tasks such as changing the state of one or more nodes (using an approval automation) and managing node states according to a schedule. Systems Manager includes features that help you target large groups of instances by using tags, and velocity controls that help you roll out changes according to the limits you define. Automation offers one-click automations for simplifying complex tasks such as creating golden Amazon Machine Images (AMIs) and recovering unreachable EC2 instances. Privileged operational actions SHOULD be granted through Automation runbooks rather than direct IAM permissions. For example, if you want an IAM role to have permissions to restart specific EC2 instances after patch updates, but you don't want to grant the permission directly to that role, you can instead create an Automation runbook and give the role permissions to only run the runbook.
Design considerations:
Systems Manager relies on EC2 instance metadata to function correctly. Systems Manager can access instance metadata by using either version 1 or version 2 of the Instance Metadata Service (IMDSv1 and IMDSv2).
SSM Agent has to communicate with different AWS services and resources such as Amazon EC2 messages, Systems Manager, and Amazon S3. For this communication to happen, the subnet requires either outbound internet connectivity or provisioning of appropriate VPC endpoints. The AWS SRA uses VPC endpoints for the SSM Agent to establish private network paths to various AWS services.
Using Automation, you can share best practices with the rest of your organization. You can create best practices for resource management in runbooks and share the runbooks across AWS Regions and groups. You can also constrain the allowed values for runbook parameters. For these use cases, you might have to create Automation runbooks in a central account such as Security Tooling or Shared Services and share them with the rest of the AWS organization. Common use cases include the capability to centrally implement patching and security updates, remediate drift on VPC configurations or S3 bucket policies, and manage EC2 instances at scale. For implementation details, see the Systems Manager documentation.
Amazon Aurora
In the AWS SRA, Amazon Aurora
Design consideration:
As in many database services, security for Aurora is managed at three levels. To control who can perform Amazon Relational Database Service (Amazon RDS) management actions on Aurora DB clusters and DB instances, you use IAM. To control which devices and EC2 instances can open connections to the cluster endpoint and port of the DB instance for Aurora DB clusters in a VPC, you use a VPC security group. To authenticate logins and permissions for an Aurora DB cluster SHOULD use IAM database authentication where supported. Database credentials that are used SHOULD be stored in Secrets Manager. With the former approach, you authenticate to your Aurora MySQL-Compatible DB cluster by using an IAM role and an authentication token.
Amazon S3
Amazon S3
AWS KMS
The AWS SRA illustrates the recommended distribution model for key management, where the AWS KMS key resides within the same AWS account as the resource to be encrypted. For this reason, AWS KMS is used in the Application account in addition to being included in the Security Tooling account. In the Application account, AWS KMS is used to manage keys that are specific to the application resources. Key policies SHOULD grant usage permissions only to application roles. Key policies SHOULD restrict key administration to key custodians.
Design consideration:
In a distributed model, the AWS KMS key management responsibility resides with the application team. However, the central security team SHOULD monitor critical cryptographic events such as the following:
Imported key material in a KMS key is approaching its expiration date.
The key material in a KMS key was automatically rotated.
A user or process deleted a KMS key was deleted.
There is a high rate of decryption failure.
AWS CloudHSM
AWS CloudHSM
Design consideration:
If you have a hard requirement for FIPS 140-3 level 3, you can also choose to configure AWS KMS to use the AWS CloudHSM cluster as a custom key store rather than using the native KMS key store. By doing this, you benefit from the integration between AWS KMS and AWS services that encrypt your data, while being responsible for the HSMs that protect your KMS keys. This combines single-tenant HSMs under your control with the ease of use and integration of AWS KMS. To manage your AWS CloudHSM infrastructure, you must deploy a public key infrastructure (PKI) and maintain a team with experience managing HSMs.
AWS Secrets Manager
AWS Secrets Manager
With Secrets Manager, access to each secret MUST be restricted by least-privilege IAM and resource-based policies. Secrets SHOULD be encrypted with a customer managed KMS key. Secrets Manager also integrates with AWS logging and monitoring services for centralized auditing.
Secrets Manager uses envelope encryption with AWS KMS keys and data keys to protect each secret value. When you create a secret, you can choose any symmetric customer managed key in the AWS account and Region, or you can use the AWS managed key for Secrets Manager.
As a best practice, changes to secrets MUST be logged (CloudTrail) and SHOULD be monitored for unexpected access or modification. This helps you ensure that any unexpected usage or change can be investigated, and you can roll back unwanted changes. Unwanted changes can be rolled back. Secrets Manager currently supports four AWS services that enable you to monitor your organization and activity: AWS CloudTrail, AWS Config, Amazon CloudWatch and Amazon GuardDuty. CloudTrail captures all API calls for Secrets Manager as events, including calls from the Secrets Manager console and from code calls to the Secrets Manager APIs. In addition, CloudTrail captures other related (non-API) events that might have a security or compliance impact on your AWS account or might help you troubleshoot operational problems. These include certain secrets rotation events and deletion of secret versions. AWS Config can provide detective controls by tracking and monitoring changes to secrets in Secrets Manager. These changes include a secret's description, rotation configuration, tags, and relationship to other AWS sources such as the AWS KMS encryption key or the AWS Lambda functions used for secret rotation. You can also configure Amazon EventBridge, which receives configuration and compliance change notifications from AWS Config, to route particular secrets events for notification or remediation actions. With CloudWatch you can monitor the number of secrets in your account, including secrets marked for deletion, and API calls to Secrets Manager, including calls made through the console. GuardDuty will detect potential threats such as unusual or suspicious access to secrets, and credential exfiltration in case it detects credentials that were created exclusively for an Amazon EC2 instance through an instance launch role but are being used from another account within AWS.
In the AWS SRA, Secrets Manager is located in the Application account to support local application use cases and to manage secrets close to their usage. Here, an instance profile is attached to the EC2 instances in the Application account. Separate secrets can then be configured in Secrets Manager to allow that instance profile to retrieve secrets—for example, to join the appropriate Active Directory or LDAP domain and to access the Aurora database. Secrets Manager integrates with Amazon RDS to manage user credentials when you create, modify, or restore an Amazon RDS DB instance or a Multi-AZ DB cluster. This helps you manage the creation and rotation of keys and replaces the hardcoded credentials in your code with programmatic API calls to Secrets Manager.
Design considerations:
In general, configure and manage Secrets Manager in the account that is closest to where the secrets will be used. This approach takes advantage of the local knowledge of the use case and provides speed and flexibility to application development teams. Highly sensitive secrets MAY be centrally managed in the Security Tooling account. Other secrets should reside in the account that uses them.
Secrets Manager supports hybrid post-quantum TLS using Module-Lattice-Based Key-Encapsulation Mechanism (ML-KEM) to protect secrets against harvest now, decrypt later (HNDL) attacks. You can use this TLS option when you connect to Secrets Manager API endpoints. This feature is automatically enabled in AWS Workload Credentials Provider (formerly the AWS Secrets Manager Agent), AWS Lambda extension (version 19 or later), and Secrets Manager CSI Driver (version 2.0.0 or later). However, because the performance characteristics and bandwidth requirements of hybrid cipher suites are different from those of classic key exchange mechanisms, we recommend that you test them on your API calls.
Amazon Cognito
Amazon Cognito
Amazon Cognito provides a built-in and customizable UI for user sign-up and sign-in. You can use Android, iOS, and JavaScript SDKs for Amazon Cognito to add user sign-up and sign-in pages to your apps. AWS AppSync is an a managed serverless GraphQL and Pub/Sub API service that enables cross-device syncing of application-related user data.
Amazon Cognito supports multi-factor authentication and encryption of data at rest and data in transit. Amazon Cognito user pools provide advanced security features to help protect access to user accounts in your application. These advanced security features provide risk-based adaptive authentication and protection from the use of compromised credentials.
Design considerations:
You can create an AWS Lambda function and then trigger that function during user pool operations such as user sign-up, confirmation, and sign-in (authentication) with a Lambda trigger. You can add authentication challenges, migrate users, and customize verification messages. For common operations and user flow, see the Amazon Cognito documentation. Amazon Cognito calls Lambda functions synchronously.
You can use Amazon Cognito user pools to secure small, multi-tenant applications. A common use case of multi-tenant design is to run workloads to support testing multiple versions of an application. Multi-tenant design is also useful for testing a single application with different datasets, which allows full use of your cluster resources. However, make sure that the number of tenants and expected volume align with the related Amazon Cognito service quotas. These quotas are shared across all tenants in your application.
Amazon Verified Permissions
Amazon Verified Permissions
You can connect your application to the service through the API to authorize user access requests. For each authorization request, the service retrieves the relevant policies and evaluates those policies to determine whether a user is permitted to take an action on a resource, based on context inputs such as users, roles, group membership, and attributes. Verified Permissions authorization and policy management logs SHOULD be captured in CloudTrail. If you use Amazon Cognito as your identity store, you can integrate with Verified Permissions and use the ID and access tokens that Amazon Cognito returns in the authorization decisions in your applications. You provide Amazon Cognito tokens to Verified Permissions, which uses the attributes that the tokens contain to represent the principal and identify the principal's entitlements. For more information about this integration, see the AWS blog post Simplifying fine-grained authorization with Amazon Verified Permissions and Amazon Cognito
Verified Permissions helps you define policy-based access control (PBAC). PBAC is an access control model that uses permissions that are expressed as policies to determine who can access which resources in an application. PBAC brings together role-based access control (RBAC) and attribute-based access control (ABAC), resulting in a more powerful and flexible access control model. To learn more about PBAC and how you can design an authorization model by using Verified Permissions, see the AWS blog post Policy-based access control in application development with Amazon Verified Permissions
In the AWS SRA, Verified Permissions is located in the Application account to support permission management for applications through its integration with Amazon Cognito.
Layered defense
The Application account provides an opportunity to illustrate layered defense principles that AWS enables. Consider the security of the EC2 instances that make up the core of a simple example application represented in the AWS SRA to see how AWS services work together in a layered defense. This approach aligns to the structural view of AWS security services, as described in the section Apply security services across your AWS organization earlier in this guide.
The innermost layer is the EC2 instances. As mentioned earlier, EC2 instances include many native security features either by default or as options. Examples include IMDSv2, the Nitro system
, and Amazon EBS storage encryption. The second layer of protection focuses on the operating system and software running on the EC2 instances. Services such as Amazon Inspector
and AWS Systems Manager enable you to monitor, report, and take corrective action on these configurations. Amazon Inspector monitors your software for vulnerabilities and Systems Manager helps you work to maintain security and compliance by scanning managed instances for their patch and configuration status, and then reporting and taking any corrective actions you specify. The instances, and the software running on these instances, sit within your AWS networking infrastructure. In addition to using the security features of Amazon VPC the AWS SRA also makes use of VPC endpoints to provide private connectivity between the VPC and supported AWS services, and to provide a mechanism to place access policies at the network boundary.
The activity and configuration of the EC2 instances, software, network, and IAM roles and resources are further monitored by AWS account-focused services such as AWS Security Hub CSPM, AWS Security Hub, Amazon GuardDuty, AWS CloudTrail, AWS Config, IAM Access Analyzer, and Amazon Macie.
Finally, beyond the Application account, AWS Resource Access Manager helps control which resources are shared with other accounts, and AWS Organizations Service Control Policies help you enforce consistent permissions across the AWS organization.
