Send custom attributes to Amazon Cognito and inject them into tokens

Carlos Alessandro Ribeiro and Mauricio Mendoza, Amazon Web Services

Summary

Sending custom attributes to an Amazon Cognito authentication process can provide additional context to an application, enable more granular access controls, and make it easier to manage user profiles and authentication requirements. These features are useful in a wide range of applications and scenarios, and they can help you improve the overall security and functionality of an application.

This pattern shows how to send custom attributes to an Amazon Cognito authentication process when an application needs to provide additional context to the access token or identity (ID) token. You use the Node.js as the backend application. The application authenticates a user from an Amazon Cognito user pool and passes custom attributes that are needed for token generation. You can use AWS Lambda triggers for Amazon Cognito to customize your authentication process without major code customization or significant effort.

Prerequisites and limitations

Prerequisites

Limitations

Architecture

Target architecture

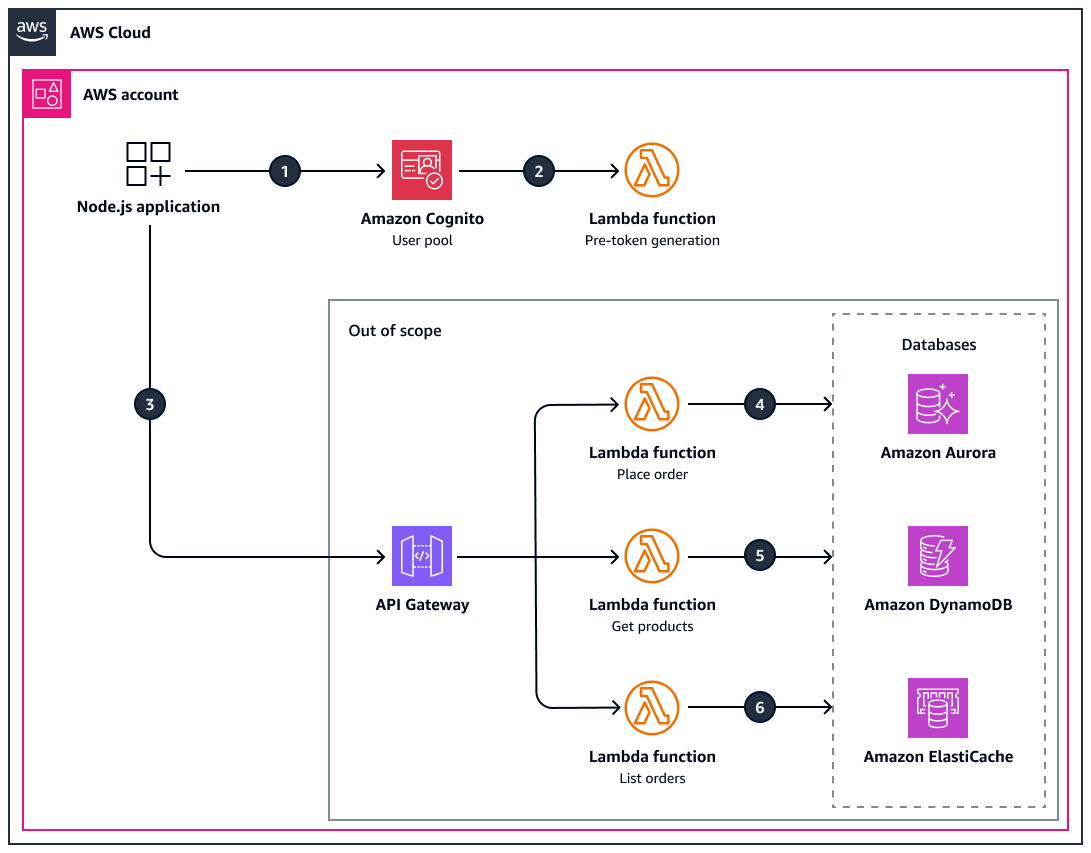

The following diagram shows the target architecture for this pattern. It also shows how the Node.js application might work with a backend to update databases. However, the backend database updates are outside the scope of this pattern.

The diagram shows the following workflow:

Automation and scale

You can automate the provisioning of Amazon Cognito user pools, AWS Lambda functions, database instances, and other resources by using AWS CloudFormation, the AWS Cloud Development Kit (AWS CDK), HashiCorp Terraform, or any supported infrastructure as code (IaC) tool. If you want to scale your deployments, use continuous integration and continuous delivery (CI/CD) pipelines, which help prevent errors associated with manual deployments.

Tools

AWS services

Other tools

Best practices

We recommend that you implement the following best practices:

For additional best practices, see Security best practices for Amazon Cognito user pools in the Amazon Cognito documentation.

Epics

aws cognito-idp sign-up \
   --client-id <ClientID> \
   --username <jane@example.com> \
   --password <PASSWORD> \
   --user-attributes Name="email",Value="<jane@example.com>" Name="name",Value="<Jane>"

export USERNAME="<COGNITO_USER_NAME>"
export PASSWORD="<COGNITO_USER_PASSWORD>"
export USER_POOL_ID="<COGNITO_USER_ID>"
export CLIENT_ID="<COGNITO_CLIENT_ID>"

npm run build
npm start

Troubleshooting

Related resources

Additional information

Sample TypeScript file

The following code sample is a TypeScript file that invokes the authentication process by using an AWS SDK to send custom attributes to Amazon Cognito:

import * as AmazonCognitoIdentity from "amazon-cognito-identity-js";

const userPoolId: string = process.env.USER_POOL_ID ?? '';
const clientId: string = process.env.CLIENT_ID ?? '';

const poolData = {
  UserPoolId: userPoolId,
  ClientId: clientId
};
const userPool = new AmazonCognitoIdentity.CognitoUserPool(poolData);

export const loginWithCognitoSDK = function (userName: string, password: string) {
  const authenticationDetails = new AmazonCognitoIdentity.AuthenticationDetails({
    Username: userName,
    Password: password,
    ClientMetadata: {
        customGroup: "MyCustomGroup",
        customApplicationData: "Custom data from a custom application"
    }
  });
  const userData = {
    Username: userName,
    Pool: userPool
  };

  const cognitoUser = new AmazonCognitoIdentity.CognitoUser(userData);

  // Authenticate the user using the authenticationDetails object
  cognitoUser.authenticateUser(authenticationDetails, {
    onSuccess: function (result: any) {},
    onFailure: function (err: any) {},
  });
}
loginWithCognitoSDK(process.env.USERNAME ?? '', process.env.PASSWORD ?? '');

The sample uses the AuthenticationDetails model from the SDK for JavaScript to provide the username, password, and the ClientMetadada. After the authentication in Amazon Cognito, the client metadata can be retrieved from the access and ID tokens.

Sample Lambda function

The following code sample is a Lambda function that is linked to the Pre-Generation Token from Amazon Cognito. It helps you customize the access token and ID token that Amazon Cognito uses. The tokens are passed through the integrations between your architecture. This sample includes a custom claim attribute called customApplicationData and a custom group name called MyCustomGroup:

export const handler = async(event, context, callback) => {
    event.response = {
        claimsOverrideDetails: {
            claimsToAddOrOverride: { customApplicationData: event.request.clientMetadata.customApplicationData },
            groupOverrideDetails: { groupsToOverride: [event.request.clientMetadata.customGroup] }
        }
    };
    callback(null, event);
};

Sample access token

You can decode the access token to visualize the custom attributes that were added. The following is a sample access token:

{
  "sub": "6daf331f-4451-48b4-abde-774579299204",
  "cognito:groups": [
    "MyCustomGroup"
  ],
  "iss": "https://cognito-idp.<REGION>.amazonaws.com/<USERPOOL_ID>",
  "client_id": "<YOUR_CLIENT_ID>",
  "origin_jti": "acff7e91-09f9-4fde-8eec-38b0f8c47cdc",
  "event_id": "c5113a9c-1f01-435b-9b73-a5cd3e88514e",
  "token_use": "access",
  "scope": "aws.cognito.signin.user.admin",
  "auth_time": 1677979246,
  "exp": 1677982846,
  "iat": 1677979246,
  "jti": "5c9c2708-a871-4428-bd9b-18ad261bea90",
  "username": "<USER_NAME>"
}

Sample ID token

You can decode the access token to visualize the custom attributes that were added. The following is a sample access token:

{
  "sub": "6daf331f-4451-48b4-abde-774579299204",
  "cognito:groups": [
    "MyCustomGroup"
  ],
  "iss": "https://cognito-idp.<REGION>.amazonaws.com/<USERPOOL_ID>",
  "cognito:username": "<USER_NAME>",
  "origin_jti": "acff7e91-09f9-4fde-8eec-38b0f8c47cdc",
  "customApplicationData": "Custom data from a custom application",
  "aud": "<YOUR_CLIENT_ID>",
  "event_id": "c5113a9c-1f01-435b-9b73-a5cd3e88514e",
  "token_use": "id",
  "auth_time": 1677979246,
  "exp": 1677982846,
  "iat": 1677979246,
  "jti": "f7ca006b-f25b-44d2-a7a4-6e6423f4201f",
  "email": "<USER_EMAIL>"
}
