Production-ready CloudFront configuration for MediaTailor

This CloudFront distribution configuration provides everything you need to deliver MediaTailor content with server-side ad insertion at scale. Copy this configuration and customize it with your specific origins and requirements.

What this configuration accomplishes

This configuration creates a production-ready CloudFront distribution that handles all MediaTailor request types with optimal caching and performance. It includes three origins (your content, MediaTailor segments, and MediaTailor manifests) with four cache behaviors that route requests correctly and cache content appropriately.

When to use this configuration

This setup is ideal for live streaming, video-on-demand, and hybrid workflows that require server-side ad insertion.

Three-origin architecture

MediaTailor uses a three-origin architecture pattern to optimize content delivery and ad insertion performance. Each origin serves a specific purpose in the ad insertion workflow:

Your content origin

This is your true content origin that feeds MediaTailor. For example, this could be AWS Elemental MediaPackage V2 or another content delivery service. This origin serves your original content before ad insertion. Common examples include:

  • MediaPackage V2 packaging configurations

  • Third-party content delivery networks

  • On-premises streaming servers

  • Amazon S3 buckets with static content

MediaTailor segments origin

This origin uses the hostname segments.mediatailor.region.amazonaws.com and serves the actual ad segments after MediaTailor has encoded them. These are the video segments that contain the advertisements. This origin handles:

  • Transcoded ad segments in the same format as your content

  • Redirected requests from the /segment/* path pattern

  • Ad segments that have been processed for server-side ad insertion

MediaTailor manifests origin

This origin uses the hostname manifests.mediatailor.region.amazonaws.com and can be used as a regional hostname for playback configurations in the specified AWS Region. MediaTailor selects the correct playback configuration based on the path in the request. This origin provides:

  • Personalized HLS and DASH manifests with viewer-specific ad insertion

  • Server-guided ad insertion (SGAI) manifests for cacheable content

  • Ad tracking and beacon handling for server-side reporting

With the origin hostname manifests.mediatailor.region.amazonaws.com, you can have multiple playback configurations that work with the same CloudFront distribution if they're in the specified Region and you include the playback configuration name in the request path. For example:

  • https://your-distribution.cloudfront.net/v1/master/playback-config-1/manifest.m3u8

  • https://your-distribution.cloudfront.net/v1/master/playback-config-2/manifest.m3u8

Review and adjust origin request policies based on your specific content origin requirements. The example uses S3 origin policies, but you might need different policies for custom origins. Consider these factors when selecting origin request policies:

  • S3 origins: Use Managed-CORS-S3Origin for Amazon S3 buckets

  • Custom origins: Use Managed-AllViewer or Managed-AllViewerAndCloudFrontHeaders-2022-6 for custom HTTP origins

  • MediaPackage origins: Use Managed-CORS-S3Origin for MediaPackage V2 endpoints

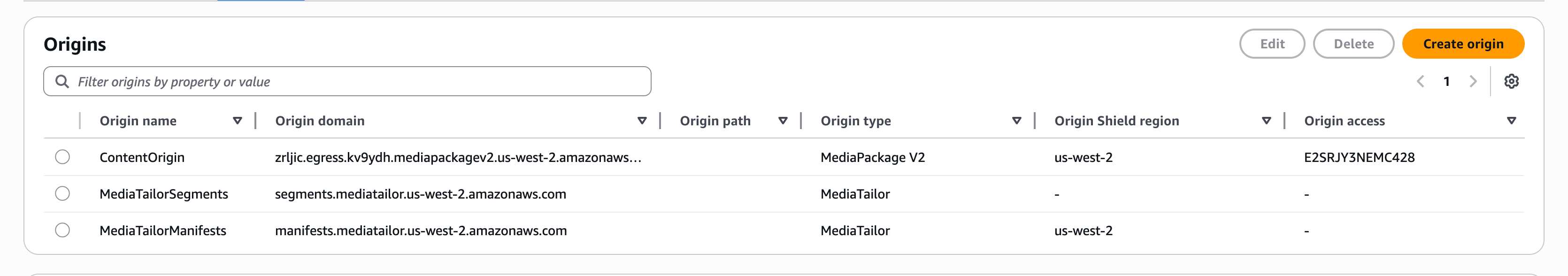

Origins table showing ContentOrigin, MediaTailorSegments, and MediaTailorManifests with their respective details.

Cache behavior precedence and configuration

MediaTailor requires specific cache behavior configurations to handle different types of requests properly. The precedence of cache behaviors is critical because CDNs process them in order (smallest to largest) and use the behavior for the first matching path pattern. Understanding this precedence is essential for troubleshooting:

  • Precedence 0: Most specific patterns (like /tm/*) are evaluated first

  • Higher precedence numbers: Less specific patterns are evaluated in order

  • Default behavior: Catches all requests that don't match other patterns

If requests aren't behaving as expected, check that your path patterns don't overlap in unintended ways.

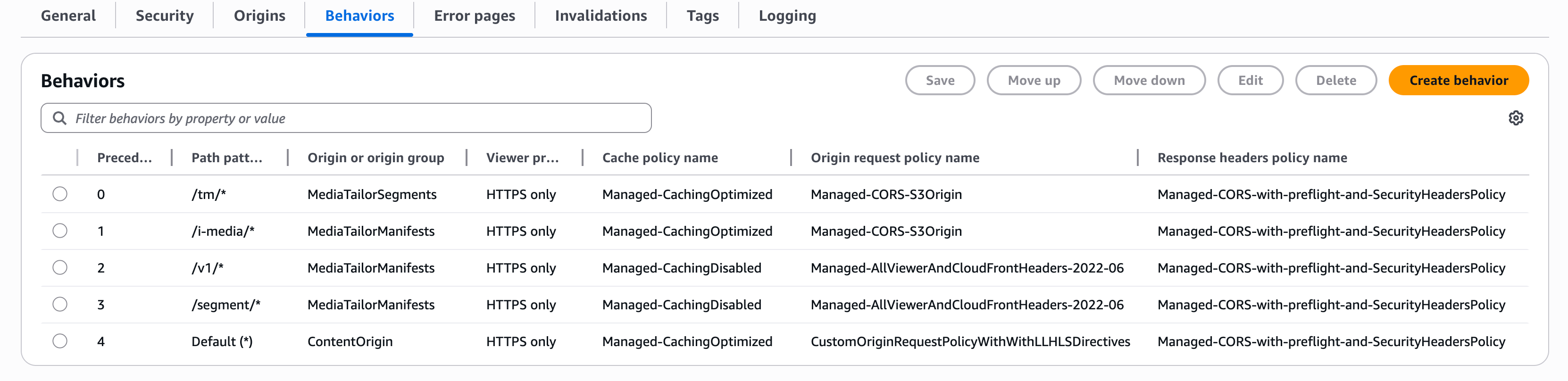

Table showing behaviors with path patterns, origins, and policies for different URL paths.

Precedence 0: Ad segments path behavior

This behavior handles the redirected requests from the segment path behavior, serving the actual ad segments. CloudFront applies the following behaviors to all requests with a /tm/* path pattern. This is the highest priority behavior because ad segment delivery is critical for uninterrupted playback.

  • Path pattern: /tm/*

    Example URLs that match this pattern:

    • https://your-distribution.cloudfront.net/tm/ad-segment-001.ts

    • https://your-distribution.cloudfront.net/tm/transcoded-ad.m4s

  • Origin: The origin that you created with the segments.mediatailor.region.amazonaws.com domain.

    This is MediaTailorSegments in the example in the preceding section on origins.

  • Cache policy: Managed-CachingOptimized

    The Managed-CachingOptimized cache policy should be configured to include the Origin header in the cache key to prevent CORS cache poisoning issues. Without the Origin header in the cache key, the following scenario can occur:

    1. A request without an Origin header is received and cached by CloudFront

    2. A subsequent request with an Origin header receives the cached response (which lacks CORS headers)

    3. The browser rejects the response due to missing CORS headers, causing playback failures

    For details about what's included in the CloudFront managed cache policy, see CachingOptimized in the CloudFront user guide. You can also use these same settings from the managed policy in your third-party CDN.

  • Origin request policy: Managed-CORS-S3Origin

    For details about what's included in the CloudFront managed origin request policy, see CORS-S3Origin in the CloudFront user guide. You can also use these same settings from the managed policy in your third-party CDN.

  • Response headers policy: Managed-CORS-with-preflight-and-SecurityHeadersPolicy

    Using the Managed-CORS-with-preflight-and-SecurityHeadersPolicy response headers policy is critical for preventing CORS cache poisoning. This policy ensures that CloudFront includes the Access-Control-Allow-Origin header in responses, which is necessary for web-based players to access ad segments from different origins.

    For details about what's included in the response headers policy, see CORS-with-preflight-and-SecurityHeadersPolicy in the CloudFront user guide.

Adapting these settings to other CDNs

If you're using a CDN other than CloudFront, look for equivalent settings that accomplish the following.

Path pattern matching

Configure a specific behavior for the /tm/* path pattern to handle MediaTailor ad segments

Cache key configuration

Include the Origin header in your cache key to ensure responses are cached separately for different origins

Header forwarding

Forward the Origin header and other CORS-related headers to the origin

Response header management

Configure your CDN to ensure the Access-Control-Allow-Origin header is present in responses

The specific terminology and configuration options will vary by CDN provider, but the underlying principles remain the same.

Precedence 1: Server-guided ad insertion behavior

This behavior handles Understanding AWS Elemental MediaTailor server-guided ad insertion (SGAI) requests when customers configure guided mode, which provides cacheable manifests. CloudFront applies the following behaviors to all requests with a /i-media/* path pattern. SGAI allows for better caching performance because the manifests are not viewer-specific.

  • Path pattern: /i-media/* (iMedia path for SGAI)

    Example URLs that match this pattern:

    • https://your-distribution.cloudfront.net/i-media/your-config/manifest.m3u8

    • https://your-distribution.cloudfront.net/i-media/your-config/playlist.mpd

  • Origin: The origin that you created with the manifests.mediatailor.region.amazonaws.com domain.

    This is MediaTailorManifests in the example in the preceding section on origins.

  • Cache policy: Managed-CachingOptimized

    For details about what's included in the CloudFront managed cache policy, see CachingOptimized in the CloudFront user guide. You can also use these same settings from the managed policy in your third-party CDN.

  • Origin request policy: Managed-CORS-S3Origin

    For details about what's included in the CloudFront managed origin request policy, see CORS-S3Origin in the CloudFront user guide. You can also use these same settings from the managed policy in your third-party CDN.

  • Response headers policy: Managed-CORS-with-preflight-and-SecurityHeadersPolicy

    For details about what's included in the response headers policy, see CORS-with-preflight-and-SecurityHeadersPolicy in the CloudFront user guide.

Precedence 2: Personalized manifest behavior

This behavior handles personalized manifest requests. CloudFront applies the following behaviors to all requests with a /v1/* path pattern. CloudFront applies the following behaviors and doesn't cache personalized manifests because they contain viewer-specific ad content URLs. These behaviors apply to all requests that have a /v1/* path pattern. This is the core MediaTailor functionality where each viewer receives a unique manifest with personalized ad insertion.

  • Path pattern: /v1/* (standard V1 MediaTailor requests)

    Example URLs that match this pattern:

    • https://your-distribution.cloudfront.net/v1/master/your-config/manifest.m3u8

    • https://your-distribution.cloudfront.net/v1/dash/your-config/manifest.mpd

  • Origin: The origin that you created with the manifests.mediatailor.region.amazonaws.com domain.

    This is MediaTailorManifests in the example in the preceding section on origins.

  • Cache policy: Managed-CachingDisabled

    For details about what's included in the cache policy, see CachingDisabled in the CloudFront user guide.

  • Origin request policy: Managed-AllViewerAndCloudFrontHeaders-2022-6

    For details about what's included in the origin request policy, see AllViewerAndCloudFrontHeaders-2022-6 in the CloudFront user guide.

  • Response headers policy: Managed-CORS-with-preflight-and-SecurityHeadersPolicy

    For details about what's included in the response headers policy, see CORS-with-preflight-and-SecurityHeadersPolicy in the CloudFront user guide.

Accept-Encoding header

We recommend that your CDN preserves the Accept-Encoding header from viewers. This header gives MediaTailor instruction on compressing personalized manifests.

In CloudFront, the AllViewerAndCloudFrontHeaders origin request policy includes passthrough of the Accept-Encoding header from the viewer. If you use a different CDN, ensure that it preserves this header.

The following is how MediaTailor handles the Accept-Encoding header.

  • Legacy devices: Older smart TVs that don't support gzip won't send the Accept-Encoding header, so MediaTailor returns uncompressed manifests

  • Modern devices: iPhones, Chrome browsers, and other modern clients send the Accept-Encoding header, allowing MediaTailor to compress manifests before delivery

Precedence 3: Server-side beacon path behavior

This behavior handles requests to MediaTailor that result in redirects for Server-side tracking. These requests are essential for tracking beacons, so every request must be processed by MediaTailor. CloudFront applies the following behaviors to all requests with a /segment/* path pattern.

  • Path pattern: /segment/*

    Example URLs that match this pattern:

    • https://your-distribution.cloudfront.net/segment/tracking-beacon-123

    • https://your-distribution.cloudfront.net/segment/ad-request-456.ts

  • Origin: The origin that you created with the manifests.mediatailor.region.amazonaws.com domain.

    This is MediaTailorManifests in the example in the preceding section on origins.

  • Cache policy: Managed-CachingDisabled

    For details about what's included in the cache policy, see CachingDisabled in the CloudFront user guide.

  • Origin request policy: Managed-AllViewerAndCloudFrontHeaders-2022-6

    For details about what's included in the origin request policy, see AllViewerAndCloudFrontHeaders-2022-6 in the CloudFront user guide.

  • Response headers policy: Managed-CORS-with-preflight-and-SecurityHeadersPolicy

    For details about what's included in the response headers policy, see CORS-with-preflight-and-SecurityHeadersPolicy in the CloudFront user guide.

When MediaTailor processes these requests, it returns a 302 redirect response with a path that points to the actual segment location. For example, a request to /segment/ad123.ts might redirect to /tm/encoded-ad-segment.ts on the segments origin.

Precedence 4: Content origin path behavior

If the request path doesn't match any of the other patterns, CloudFront applies the default behavior. This behavior sends requests directly to the content origin, with no processing from MediaTailor. This allows direct access to your content origin (such as MediaPackage V2) when needed. CloudFront applies the following behaviors to all requests that don't include any of the prior path patterns.

  • Path pattern: (*)

  • Origin: The origin that you created with the domain for your content origin.

    This is ContentOrigin in the example in the preceding section on origins.

  • Cache policy: Managed-CachingOptimized

    For details about what's included in the CloudFront managed cache policy, see CachingOptimized in the CloudFront user guide. You can also use these same settings from the managed policy in your third-party CDN.

    Note

    For low latency HLS implementations, consider using a custom caching policy with Low Latency HLS (LLH) directives instead of the standard CachingOptimized policy.

  • Origin request policy: Configured to pass appropriate headers and query string parameters to your content origin. For information about available managed origin request policies, see Use managed origin request policies in the CF developer guide.

  • Response headers policy: Managed-CORS-with-preflight-and-SecurityHeadersPolicy

    Although the default content origin behavior doesn't typically face the same CORS cache poisoning risks as the ad segment behavior, it's still recommended to use the Managed-CORS-with-preflight-and-SecurityHeadersPolicy response headers policy and include the Origin header in your cache key. This ensures consistent CORS handling across all content types and prevents potential playback issues in web-based players.

    For content segments, the Managed-CachingOptimized cache policy provides good performance while the Managed-CORS-with-preflight-and-SecurityHeadersPolicy response headers policy ensures proper CORS handling. This combination allows for efficient caching while maintaining compatibility with web-based players that require CORS headers.

    Applying consistent CORS handling across both ad segments and content segments creates a more reliable playback experience and simplifies troubleshooting. Without proper CORS configuration, players might experience inconsistent behavior when transitioning between content and ads.

    For details about what's included in the response headers policy, see CORS-with-preflight-and-SecurityHeadersPolicy in the CloudFront user guide.
