Create the Amazon VPC endpoint for Amazon S3

In this section, you create a Amazon VPC endpoint for Amazon S3 to use. Setting up this endpoint will help you later when setting up internet access for VPC.

  1. Navigate to Amazon VPC in the AWS Management Console.

  2. In the navigation pane, choose Endpoints.

  3. Choose Create endpoint.

    VPC endpoints with Create Endpoint active.

  4. Enter a meaningful name tag, for example: “Micro-Focus-License-S3”.

  5. Choose AWS Services as the Service Category.

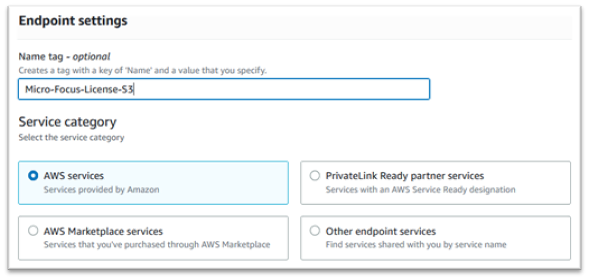

    Endpoint Settings with sample name tag entered.

  6. Under Services search for the Amazon S3 Gateway service: com.amazonaws.[region].s3.

    For us-west-1 this would be: com.amazonaws.us-west-1.s3.

  7. Choose the Gateway service.

    Services with Amazon S3 Gateway service selected.

  8. For VPC choose the VPC you will be using.

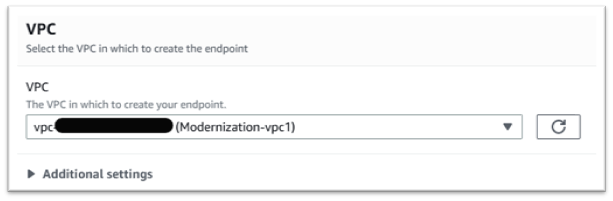

    VPC with a VPC entered.

  9. Choose all of the route tables for the VPC.

    Route tables with all route tables selected.

  10. Under Policy choose Full Access.

    Policy with Full Access selected.
    Note

    If you decide to create a custom policy, make sure it has access to the Amazon S3 bucket s3://aws-supernova-marketplace-<region>-prod.

  11. Choose Create Endpoint.
