Buat aplikasi yang mereferensikan file eksternal di Infrastructure Composer

Contoh

1. Pertama, gunakan sam init perintah AWS SAM CLI untuk menginisialisasi aplikasi baru bernama. demo Selama alur interaktif, pilih template mulai cepat alur kerja multi-langkah.

   $ sam init

   ...

   Which template source would you like to use?
           1 - AWS Quick Start Templates
           2 - Custom Template Location
   Choice: 1

   Choose an AWS Quick Start application template
           1 - Hello World Example
           2 - Multi-step workflow
           3 - Serverless API
           4 - Scheduled task
           ...
   Template: 2

   Which runtime would you like to use?
           1 - dotnet6
           2 - dotnetcore3.1
           ...
           15 - python3.7
           16 - python3.10
           17 - ruby2.7
   Runtime: 16

   Based on your selections, the only Package type available is Zip.
   We will proceed to selecting the Package type as Zip.

   Based on your selections, the only dependency manager available is pip.
   We will proceed copying the template using pip.

   Would you like to enable X-Ray tracing on the function(s) in your application?  [y/N]: ENTER

   Would you like to enable monitoring using CloudWatch Application Insights?
   For more info, please view https://docs.aws.amazon.com/AmazonCloudWatch/latest/monitoring/cloudwatch-application-insights.html [y/N]: ENTER

   Project name [sam-app]: demo

       -----------------------
       Generating application:
       -----------------------
       Name: demo
       Runtime: python3.10
       Architectures: x86_64
       Dependency Manager: pip
       Application Template: step-functions-sample-app
       Output Directory: .
       Configuration file: demo/samconfig.toml

       Next steps can be found in the README file at demo/README.md

   ...

   Aplikasi ini mereferensikan file eksternal untuk definisi mesin negara.

   ...
   Resources:
     StockTradingStateMachine:
       Type: AWS::Serverless::StateMachine
       Properties:
         DefinitionUri: statemachine/stock_trader.asl.json
   ...

   File eksternal terletak di statemachine subdirektori aplikasi kami.

   demo
   ├── README.md
   ├── __init__.py
   ├── functions
   │   ├── __init__.py
   │   ├── stock_buyer
   │   ├── stock_checker
   │   └── stock_seller
   ├── samconfig.toml
   ├── statemachine
   │   └── stock_trader.asl.json
   ├── template.yaml
   └── tests

2. Selanjutnya, muat aplikasi Anda di Infrastructure Composer dari konsol. Dari halaman beranda Infrastructure Composer, pilih Load a CloudFormation template.

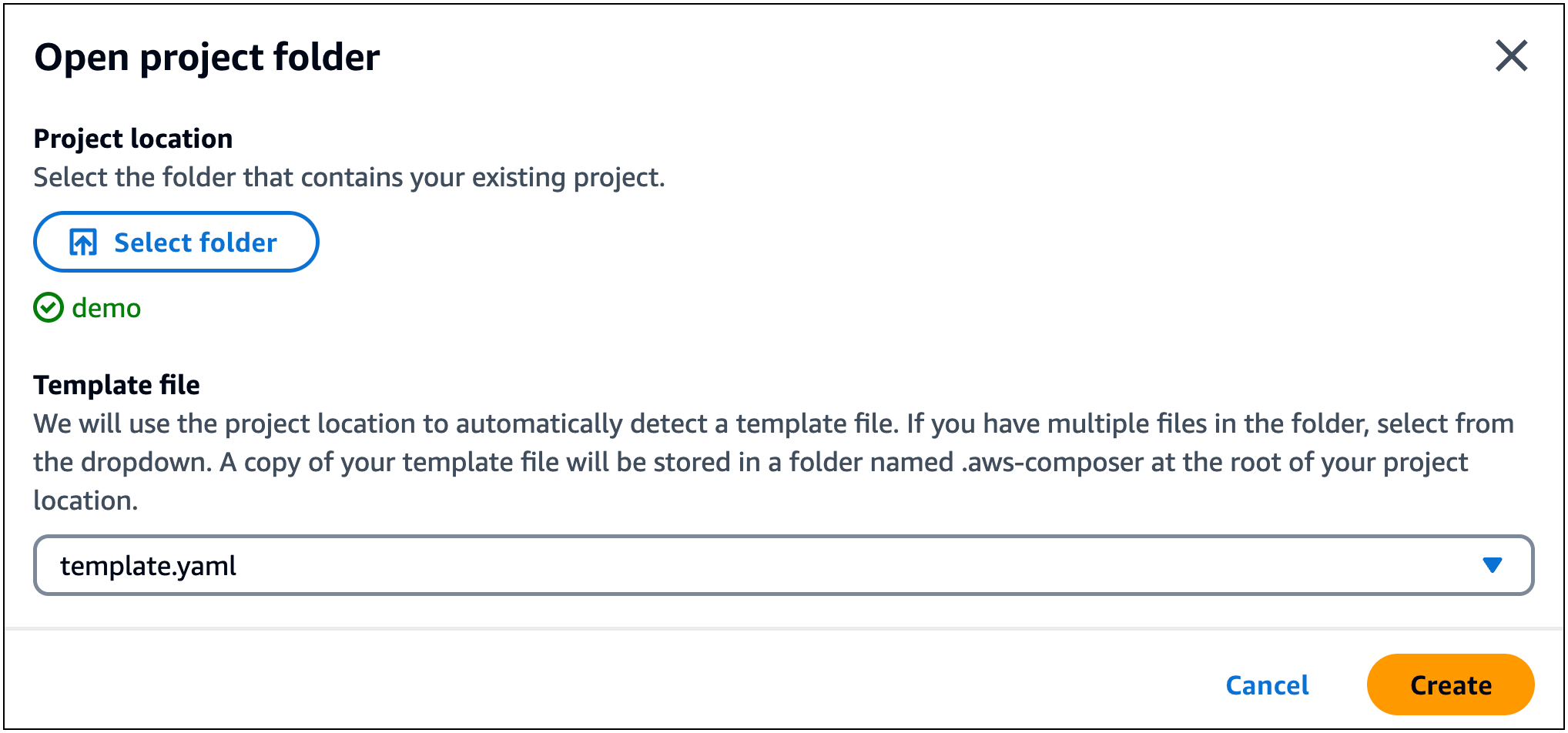

3. Pilih folder demo proyek kami dan izinkan prompt untuk melihat file. Pilih template.yaml file kami dan pilih Buat. Saat diminta, pilih Simpan perubahan.
