Meninjau log server Appium Anda

Setelah memulai sesi Appium, Anda dapat melihat log server Appium secara langsung di konsol Device Farm, atau mengunduhnya setelah sesi akses jarak jauh berakhir. Berikut adalah instruksi untuk melakukannya:

Console

Di konsol Device Farm, buka sesi akses jarak jauh untuk perangkat Anda.
Memulai sesi titik akhir Appium dengan perangkat dari IDE lokal atau Appium Inspector

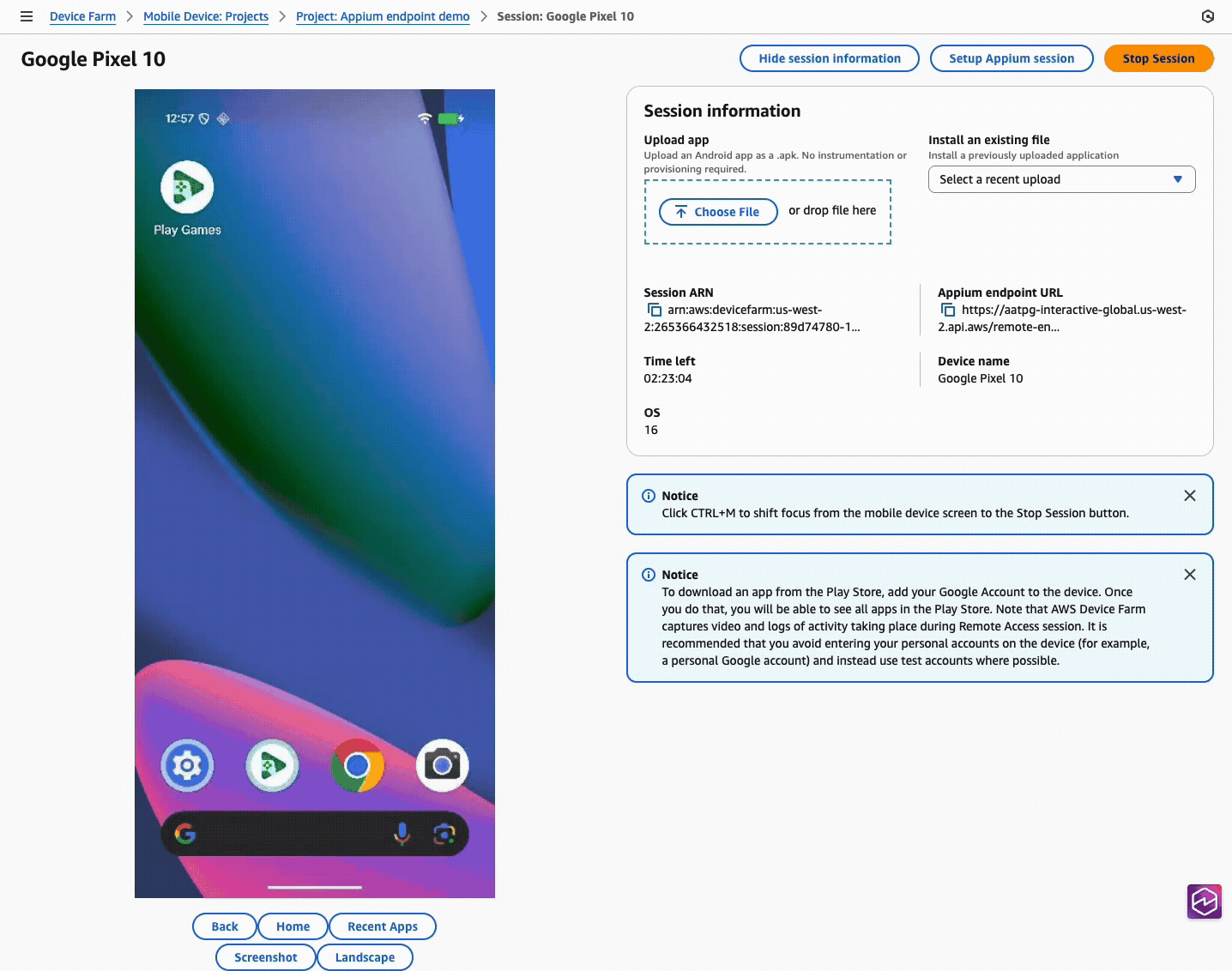

Kemudian, log server Appium akan muncul di samping perangkat di halaman sesi akses jarak jauh, dengan “informasi sesi” tersedia di bagian bawah halaman di bawah perangkat:

AWS CLI

Catatan: contoh ini menggunakan alat baris perintah curl untuk menarik log dari Device Farm.

Selama atau setelah sesi, Anda dapat menggunakan ListArtifactsAPI Device Farm untuk mengunduh log server Appium.


$ aws devicefarm list-artifacts \
  --type FILE \
  --arn arn:aws:devicefarm:us-west-2:111122223333:session:12345678-1111-2222-333-456789abcdef/12345678-1111-2222-333-456789abcdef/00000

Ini akan menampilkan output seperti berikut selama sesi:


{
    "artifacts": [
        {
            "arn": "arn:aws:devicefarm:us-west-2:111122223333:artifact:12345678-1111-2222-333-456789abcdef/12345678-1111-2222-333-456789abcdef/00000",
            "name": "AppiumServerLogOutput",
            "type": "APPIUM_SERVER_LOG_OUTPUT",
            "extension": "",
            "url": "https://prod-us-west-2-results.s3.dualstack.us-west-2.amazonaws.com/111122223333/12345678..."
        }
    ]
}

Dan berikut ini setelah sesi selesai:


{
    "artifacts": [
        {
            "arn": "arn:aws:devicefarm:us-west-2:111122223333:artifact:12345678-1111-2222-333-456789abcdef/12345678-1111-2222-333-456789abcdef/00000",
            "name": "Appium Server Output",
            "type": "APPIUM_SERVER_OUTPUT",
            "extension": "log",
            "url": "https://prod-us-west-2-results.s3.dualstack.us-west-2.amazonaws.com/111122223333/12345678..."
        }
    ]
}


$ curl "https://prod-us-west-2-results.s3.dualstack.us-west-2.amazonaws.com/111122223333/12345678..."

Ini akan menampilkan output seperti berikut:


info Appium Welcome to Appium v2.5.4
info Appium Non-default server args:
info Appium { address: '127.0.0.1',
info Appium   allowInsecure:
info Appium    [ 'execute_driver_script',
info Appium      'session_discovery',
info Appium      'perf_record',
info Appium      'adb_shell',
info Appium      'chromedriver_autodownload',
info Appium      'get_server_logs' ],
info Appium   keepAliveTimeout: 0,
info Appium   logNoColors: true,
info Appium   logTimestamp: true,
info Appium   longStacktrace: true,
info Appium   sessionOverride: true,
info Appium   strictCaps: true,
info Appium   useDrivers: [ 'uiautomator' ] }

Python

Catatan: contoh ini menggunakan requests paket pihak ketiga untuk mengunduh log, serta AWS SDK untuk Pythonboto3.

Selama atau setelah sesi, Anda dapat menggunakan ListArtifactsAPI Device Farm untuk mengambil URL log server Appium, lalu mengunduhnya.


import pathlib
import requests
import boto3

def download_appium_log():
    session_arn = "arn:aws:devicefarm:us-west-2:111122223333:session:12345678-1111-2222-333-456789abcdef/12345678-1111-2222-333-456789abcdef/00000"
    client = boto3.client("devicefarm", region_name="us-west-2")

    # 1) List artifacts for the session (FILE artifacts), handling pagination
    artifacts = []
    token = None
    while True:
        kwargs = {"arn": session_arn, "type": "FILE"}
        if token:
            kwargs["nextToken"] = token
        resp = client.list_artifacts(**kwargs)
        artifacts.extend(resp.get("artifacts", []))
        token = resp.get("nextToken")
        if not token:
            break

    if not artifacts:
        raise RuntimeError("No artifacts found in this session")

    # Filter strictly to Appium server logs
    allowed = {"APPIUM_SERVER_OUTPUT", "APPIUM_SERVER_LOG_OUTPUT"}
    filtered = [a for a in artifacts if a.get("type") in allowed]
    if not filtered:
        raise RuntimeError("No Appium server log artifacts found (expected APPIUM_SERVER_OUTPUT or APPIUM_SERVER_LOG_OUTPUT)")

    # Prefer the final 'OUTPUT' log, else the live 'LOG_OUTPUT'
    chosen = (next((a for a in filtered if a.get("type") == "APPIUM_SERVER_OUTPUT"), None)
              or next((a for a in filtered if a.get("type") == "APPIUM_SERVER_LOG_OUTPUT"), None))

    url = chosen["url"]
    ext = chosen.get("extension") or "log"
    out = pathlib.Path(f"./appium_server_log.{ext}")

    # 2) Download the artifact
    with requests.get(url, stream=True) as r:
        r.raise_for_status()
        with open(out, "wb") as fh:
            for chunk in r.iter_content(chunk_size=1024 * 1024):
                if chunk:
                    fh.write(chunk)

    print(f"Saved Appium server log to: {out.resolve()}")

download_appium_log()

Ini akan menampilkan output seperti berikut:


info Appium Welcome to Appium v2.5.4
info Appium Non-default server args:
info Appium { address: '127.0.0.1', allowInsecure: [ 'execute_driver_script', ... ], useDrivers: [ 'uiautomator' ] }

Java

Catatan: contoh ini menggunakan AWS SDK for Java v2 HttpClient dan untuk mengunduh log, dan kompatibel dengan JDK versi 11 dan yang lebih tinggi.

Selama atau setelah sesi, Anda dapat menggunakan ListArtifactsAPI Device Farm untuk mengambil URL log server Appium, lalu mengunduhnya.


import java.io.IOException;
import java.net.URI;
import java.net.http.HttpClient;
import java.net.http.HttpRequest;
import java.net.http.HttpResponse;
import java.nio.file.Path;
import java.time.Duration;
import java.util.ArrayList;
import java.util.Comparator;
import java.util.List;

import software.amazon.awssdk.regions.Region;
import software.amazon.awssdk.services.devicefarm.DeviceFarmClient;
import software.amazon.awssdk.services.devicefarm.model.Artifact;
import software.amazon.awssdk.services.devicefarm.model.ArtifactCategory;
import software.amazon.awssdk.services.devicefarm.model.ListArtifactsRequest;
import software.amazon.awssdk.services.devicefarm.model.ListArtifactsResponse;

public class AppiumLogDownloader {

    public static void main(String[] args) throws Exception {
        String sessionArn = "arn:aws:devicefarm:us-west-2:111122223333:session:12345678-1111-2222-333-456789abcdef/12345678-1111-2222-333-456789abcdef/00000";

        try (DeviceFarmClient client = DeviceFarmClient.builder()
                .region(Region.US_WEST_2)
                .build()) {

            // 1) List artifacts for the session (FILE artifacts) with pagination
            List<Artifact> all = new ArrayList<>();
            String token = null;
            do {
                ListArtifactsRequest.Builder b = ListArtifactsRequest.builder()
                        .arn(sessionArn)
                        .type(ArtifactCategory.FILE);
                if (token != null) b.nextToken(token);
                ListArtifactsResponse page = client.listArtifacts(b.build());
                all.addAll(page.artifacts());
                token = page.nextToken();
            } while (token != null && !token.isBlank());

            // Filter strictly to Appium logs
            List<Artifact> filtered = all.stream()
                    .filter(a -> {
                        String t = a.typeAsString();
                        return "APPIUM_SERVER_OUTPUT".equals(t) || "APPIUM_SERVER_LOG_OUTPUT".equals(t);
                    })
                    .toList();

            if (filtered.isEmpty()) {
                throw new RuntimeException("No Appium server log artifacts found (expected APPIUM_SERVER_OUTPUT or APPIUM_SERVER_LOG_OUTPUT).");
            }

            // Prefer OUTPUT; else LOG_OUTPUT
            Artifact chosen = filtered.stream()
                    .filter(a -> "APPIUM_SERVER_OUTPUT".equals(a.typeAsString()))
                    .findFirst()
                    .orElseGet(() -> filtered.stream()
                            .filter(a -> "APPIUM_SERVER_LOG_OUTPUT".equals(a.typeAsString()))
                            .findFirst()
                            .get());

            String url = chosen.url();
            String ext = (chosen.extension() == null || chosen.extension().isBlank()) ? "log" : chosen.extension();
            Path out = Path.of("appium_server_log." + ext);

            // 2) Download the artifact with HttpClient
            HttpClient http = HttpClient.newBuilder()
                    .connectTimeout(Duration.ofSeconds(10))
                    .build();

            HttpRequest get = HttpRequest.newBuilder(URI.create(url))
                    .timeout(Duration.ofMinutes(5))
                    .GET()
                    .build();

            HttpResponse<Path> resp = http.send(get, HttpResponse.BodyHandlers.ofFile(out));
            if (resp.statusCode() / 100 != 2) {
                throw new IOException("Failed to download log, HTTP " + resp.statusCode());
            }
            System.out.println("Saved Appium server log to: " + out.toAbsolutePath());
        }
    }
}

Ini akan menampilkan output seperti berikut:


info Appium Welcome to Appium v2.5.4
info Appium Non-default server args:
info Appium { address: '127.0.0.1', ..., useDrivers: [ 'uiautomator' ] }

JavaScript

Catatan: contoh ini menggunakan AWS SDK for JavaScript (v3) dan Node 18+ fetch untuk mengunduh log.

Selama atau setelah sesi, Anda dapat menggunakan ListArtifactsAPI Device Farm untuk mengambil URL log server Appium, lalu mengunduhnya.


import { DeviceFarmClient, ListArtifactsCommand } from "@aws-sdk/client-device-farm";
import { createWriteStream } from "fs";
import { pipeline } from "stream";
import { promisify } from "util";

const pipe = promisify(pipeline);
const client = new DeviceFarmClient({ region: "us-west-2" });

const sessionArn = "arn:aws:devicefarm:us-west-2:111122223333:session:12345678-1111-2222-333-456789abcdef/12345678-1111-2222-333-456789abcdef/00000";

// 1) List artifacts for the session (FILE artifacts), handling pagination
const artifacts = [];
let nextToken;
do {
  const page = await client.send(new ListArtifactsCommand({
    arn: sessionArn,
    type: "FILE",
    nextToken
  }));
  artifacts.push(...(page.artifacts ?? []));
  nextToken = page.nextToken;
} while (nextToken);

if (!artifacts.length) throw new Error("No artifacts found");

// Strict filter to Appium logs
const filtered = (artifacts ?? []).filter(a =>
  a.type === "APPIUM_SERVER_OUTPUT" || a.type === "APPIUM_SERVER_LOG_OUTPUT"
);
if (!filtered.length) {
  throw new Error("No Appium server log artifacts found (expected APPIUM_SERVER_OUTPUT or APPIUM_SERVER_LOG_OUTPUT).");
}

// Prefer OUTPUT; else LOG_OUTPUT
const chosen =
  filtered.find(a => a.type === "APPIUM_SERVER_OUTPUT") ??
  filtered.find(a => a.type === "APPIUM_SERVER_LOG_OUTPUT");

const url = chosen.url;
const ext = chosen.extension || "log";
const outPath = `./appium_server_log.${ext}`;

// 2) Download the artifact
const resp = await fetch(url);
if (!resp.ok) {
  throw new Error(`Failed to download log: ${resp.status} ${await resp.text().catch(()=>"")}`);
}
await pipe(resp.body, createWriteStream(outPath));
console.log("Saved Appium server log to:", outPath);

Ini akan menampilkan output seperti berikut:


info Appium Welcome to Appium v2.5.4
info Appium Non-default server args:
info Appium { address: '127.0.0.1', allowInsecure: [ 'execute_driver_script', ... ], useDrivers: [ 'uiautomator' ] }

C#

Catatan: contoh ini menggunakan AWS SDK for .NET HttpClient dan untuk men-download log.

Selama atau setelah sesi, Anda dapat menggunakan ListArtifactsAPI Device Farm untuk mengambil URL log server Appium, lalu mengunduhnya.


using System;
using System.Collections.Generic;
using System.IO;
using System.Net.Http;
using System.Threading.Tasks;
using System.Linq;
using Amazon;
using Amazon.DeviceFarm;
using Amazon.DeviceFarm.Model;

class AppiumLogDownloader
{
    static async Task Main()
    {
        var sessionArn = "arn:aws:devicefarm:us-west-2:111122223333:session:12345678-1111-2222-333-456789abcdef/12345678-1111-2222-333-456789abcdef/00000";

        using var client = new AmazonDeviceFarmClient(RegionEndpoint.USWest2);

        // 1) List artifacts for the session (FILE artifacts), handling pagination
        var all = new List<Artifact>();
        string? token = null;
        do
        {
            var page = await client.ListArtifactsAsync(new ListArtifactsRequest
            {
                Arn = sessionArn,
                Type = ArtifactCategory.FILE,
                NextToken = token
            });
            if (page.Artifacts != null) all.AddRange(page.Artifacts);
            token = page.NextToken;
        } while (!string.IsNullOrEmpty(token));

        if (all.Count == 0)
            throw new Exception("No artifacts found");

        // Strict filter to Appium logs
        var filtered = all.Where(a =>
            a.Type == "APPIUM_SERVER_OUTPUT" || a.Type == "APPIUM_SERVER_LOG_OUTPUT").ToList();

        if (filtered.Count == 0)
            throw new Exception("No Appium server log artifacts found (expected APPIUM_SERVER_OUTPUT or APPIUM_SERVER_LOG_OUTPUT).");

        // Prefer OUTPUT; else LOG_OUTPUT
        var chosen = filtered.FirstOrDefault(a => a.Type == "APPIUM_SERVER_OUTPUT")
                    ?? filtered.First(a => a.Type == "APPIUM_SERVER_LOG_OUTPUT");

        var url = chosen.Url;
        var ext = string.IsNullOrWhiteSpace(chosen.Extension) ? "log" : chosen.Extension;
        var outPath = $"./appium_server_log.{ext}";

        // 2) Download the artifact
        using var http = new HttpClient();
        using var resp = await http.GetAsync(url, HttpCompletionOption.ResponseHeadersRead);
        resp.EnsureSuccessStatusCode();
        await using (var fs = File.Create(outPath))
        {
            await resp.Content.CopyToAsync(fs);
        }
        Console.WriteLine($"Saved Appium server log to: {Path.GetFullPath(outPath)}");
    }
}

Ini akan menampilkan output seperti berikut:


info Appium Welcome to Appium v2.5.4
info Appium Non-default server args:
info Appium { address: '127.0.0.1', ..., useDrivers: [ 'uiautomator' ] }

Ruby

Catatan: contoh ini menggunakan AWS SDK for Net::HTTP Ruby dan mengunduh log.

Selama atau setelah sesi, Anda dapat menggunakan ListArtifactsAPI Device Farm untuk mengambil URL log server Appium, lalu mengunduhnya.


require "aws-sdk-devicefarm"
require "net/http"
require "uri"

client = Aws::DeviceFarm::Client.new(region: "us-west-2")
session_arn = "arn:aws:devicefarm:us-west-2:111122223333:session:12345678-1111-2222-333-456789abcdef/12345678-1111-2222-333-456789abcdef/00000"

# 1) List artifacts for the session (FILE artifacts), handling pagination
artifacts = []
token = nil
loop do
  page = client.list_artifacts(arn: session_arn, type: "FILE", next_token: token)
  artifacts.concat(page.artifacts || [])
  token = page.next_token
  break if token.nil? || token.empty?
end

raise "No artifacts found" if artifacts.empty?

# Strict filter to Appium logs
filtered = (artifacts || []).select { |a| ["APPIUM_SERVER_OUTPUT", "APPIUM_SERVER_LOG_OUTPUT"].include?(a.type) }
raise "No Appium server log artifacts found (expected APPIUM_SERVER_OUTPUT or APPIUM_SERVER_LOG_OUTPUT)." if filtered.empty?

# Prefer OUTPUT; else LOG_OUTPUT
chosen = filtered.find { |a| a.type == "APPIUM_SERVER_OUTPUT" } ||
         filtered.find { |a| a.type == "APPIUM_SERVER_LOG_OUTPUT" }

url = chosen.url
ext = (chosen.extension && !chosen.extension.empty?) ? chosen.extension : "log"
out_path = "./appium_server_log.#{ext}"

# 2) Download the artifact
uri = URI.parse(url)
Net::HTTP.start(uri.host, uri.port, use_ssl: (uri.scheme == "https")) do |http|
  req = Net::HTTP::Get.new(uri)
  http.request(req) do |resp|
    raise "Failed GET: #{resp.code} #{resp.body}" unless resp.code.to_i / 100 == 2
    File.open(out_path, "wb") { |f| resp.read_body { |chunk| f.write(chunk) } }
  end
end
puts "Saved Appium server log to: #{File.expand_path(out_path)}"

Ini akan menampilkan output seperti berikut:


info Appium Welcome to Appium v2.5.4
info Appium Non-default server args:
info Appium { address: '127.0.0.1', allowInsecure: [ 'execute_driver_script', ... ], useDrivers: [ 'uiautomator' ] }

Awas Javascript dinonaktifkan atau tidak tersedia di browser Anda.

Untuk menggunakan Dokumentasi AWS, Javascript harus diaktifkan. Lihat halaman Bantuan browser Anda untuk petunjuk.

Konvensi Dokumen

Berinteraksi dengan perangkat menggunakan Appium

Kemampuan dan perintah Appium yang didukung
