Data flow, ports, and encryption in Deadline Cloud
Content security reviews, such as studio security audits and vendor onboarding questionnaires, ask for a data flow diagram. The diagram covers the components of the render farm, where each component runs, how data moves between them, and how connections and stored data are encrypted. The diagram and tables on this page answer those questions for a typical AWS Deadline Cloud deployment. For more information about the security controls that you can configure for each part of the farm, see Security controls in Deadline Cloud.
Components and where they run
A Deadline Cloud render farm spans three locations: your network, your AWS account, and Deadline Cloud itself, which AWS manages. Customer-managed fleet workers are the exception: you choose where they run.
The following table describes each component and where it runs.
| Component | Where it runs | Purpose |
|---|---|---|
Deadline Cloud monitor, integrated submitters, and the Deadline Cloud CLI |
Your network |
Client tools on artist workstations that submit jobs, upload and download files, and track job progress. |
AWS IAM Identity Center |
Your AWS account |
Sign-in and access levels for monitor users. For more information, see Managing users. |
Amazon Simple Storage Service job attachments bucket |
Your AWS account |
Input and output files for jobs. Each queue has its own bucket and root prefix, so queue permission boundaries also apply to files. |
Amazon CloudWatch Logs |
Your AWS account |
Job logs and worker logs. |
AWS Key Management Service key |
Your AWS account, or AWS managed |
The key that encrypts your farm data inside Deadline Cloud. By default, Deadline Cloud uses an AWS owned key that you don't manage. You can supply a customer managed key from your account when you create the farm. For more information, see Key management. |
Customer-managed fleet workers |
Your choice: machines on your network, or Amazon Elastic Compute Cloud instances in your VPC |
Worker hosts that you manage, running your software and the Deadline Cloud worker agent. A customer-managed fleet only needs outbound HTTPS access. If workers run in your VPC, optional AWS PrivateLink endpoints keep their traffic inside the VPC. |
Deadline Cloud service |
AWS managed |
The service endpoints
|
Service-managed fleet workers |
AWS managed |
Amazon EC2 instances on an isolated network for each fleet. The instances are dedicated to your account and accept no inbound connections. |
Data flows, ports, and protocols

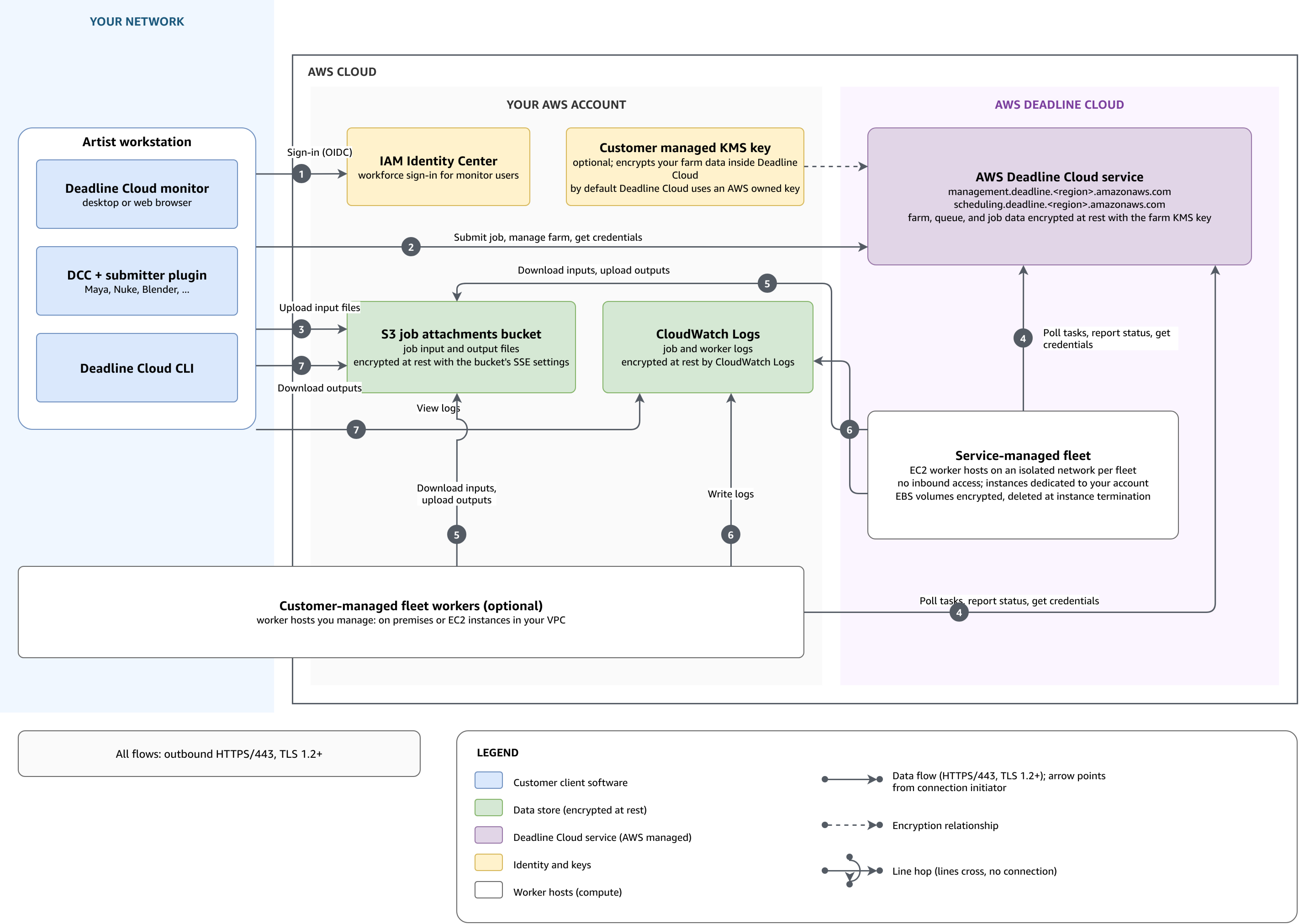

Every client and worker in the diagram initiates its connections outbound to an AWS endpoint over HTTPS on TCP port 443. We require TLS 1.2 to encrypt connections in transit, and we recommend TLS 1.3. Deadline Cloud doesn't make inbound connections to your network. The flow numbers in the following table match the numbers in the diagram.
| Flow | Connection | Description |
|---|---|---|
1 |
Monitor to IAM Identity Center |
Monitor users sign in through AWS IAM Identity Center with OpenID Connect (OIDC). |
2 |
Workstation to the management endpoint |
Submitters, the CLI, and the monitor submit jobs, manage farm resources, and
request temporary role credentials through
|
3 |
Workstation to Amazon S3 |
Job attachments uploads input files to the queue's Amazon S3 bucket. |
4 |
Workers to the scheduling endpoint |
Workers in both fleet types poll for tasks, report progress and status, and
request temporary role credentials through
|
5 |
Workers to Amazon S3 |
Workers download input files from the queue's bucket and upload output files to it. |
6 |
Workers to CloudWatch Logs |
The worker agent writes job and worker logs. |
7 |
Workstation to CloudWatch Logs and Amazon S3 |
The monitor reads job logs, and the monitor and CLI download output files. |
Neither the client tools nor the workers hold long-lived credentials for the queue's resources. Both request temporary credentials from Deadline Cloud and receive the permissions that you attach to the queue and fleet roles:
-
The monitor, the CLI, and the submitters call
AssumeQueueRoleForUserto upload and download job attachments, andAssumeQueueRoleForReadfor read-only access such as reading job logs. -
A worker calls
AssumeFleetRoleForWorkerfor the fleet role, thenAssumeQueueRoleForWorkerfor the queue role of the job it runs.
For more information about the roles and what each one grants, see Service roles.
If your studio filters outbound web traffic, see Restricted network environments for the full list of endpoints to allowlist. To keep traffic between your VPC and Deadline Cloud off the public internet, use AWS PrivateLink interface endpoints. For more information, see Access AWS Deadline Cloud using an interface endpoint (AWS PrivateLink).
Encryption summary
Each data store is encrypted at rest independently. The farm AWS KMS key applies only to the data that Deadline Cloud holds; your Amazon S3 bucket and your log groups use their own encryption settings.
-
In transit – All connections use HTTPS with TLS 1.2 required and TLS 1.3 recommended. For more information, see Encryption in transit.
-
Farm data – The Deadline Cloud service encrypts your farm, queue, and job data at rest with the farm's AWS KMS key. You can use the default AWS owned key or supply a customer managed key when you create the farm. For more information, see Key management.
-
Job attachments – Amazon Simple Storage Service encrypts your input and output files at rest with the server-side encryption configured on the bucket. By default, Amazon S3 uses Amazon S3 managed keys (SSE-S3). To use your own AWS KMS key instead, configure the bucket for SSE-KMS and grant the queue role access to the key. For more information, see Job attachments in Deadline Cloud.
-
Worker volumes – In service-managed fleets, Deadline Cloud encrypts the Amazon Elastic Block Store volumes attached to worker instances and deletes the volumes when instances terminate. For more information, see Encryption at rest.
-
Logs – Amazon CloudWatch Logs encrypts job logs and worker logs at rest with its own server-side encryption. To use your own AWS KMS key instead, associate the key with the log group. For more information, see Encrypt log data in CloudWatch Logs using AWS KMS in the Amazon CloudWatch Logs User Guide.
