Integrating XCTest UI for iOS with Device Farm

Device Farm provides support for the XCTest UI testing framework. Specifically, Device Farm supports XCTest UI tests written in both Objective-C and Swift.

The XCTest UI framework enables UI testing in iOS development, built on top of XCTest. For more information, see User Interface Testing in the iOS Developer Library.

For general information about testing in Device Farm, see Test frameworks and built-in tests in AWS Device Farm.

Use the following instructions to integrate Device Farm with the XCTest UI testing framework for iOS.

Prepare your iOS XCTest UI tests

You can either upload an .ipa file or a .zip file for your XCTEST_UI test package.

An .ipa file is an application archive containing the iOS Runner app in bundle format. Additional files cannot be included inside the .ipa file.

If you upload a .zip file, it can contain either the iOS Runner app directly or an .ipa file. You can also include other files within the .zip file if you want to use them during the tests. For example you can include files like .xctestrun, .xcworkspace or .xcodeproj inside .zip file to run XCUI Test Plans on device farm. Detailed instructions on how to run Test Plans are available in the default test specification file for the XCUI Test type.

Option 1: Creating an XCTest UI .ipa package

The yourAppNameUITest-Runner.app bundle is produced by Xcode when you build your project for testing. It can be found in the Products directory for your project.

To create an .ipa file:

  1. Create a directory called Payload.

  2. Add your app directory to the Payload directory.

  3. Archive the Payload directory into a .zip file and then change the file extension to .ipa.

The following folder structure shows how an example app named my-project-nameUITest-Runner.app would be packaged as an .ipa file:

. └── my-project-nameUITest.ipa └── Payload (directory) └── my-project-nameUITest-Runner.app

Option 2: Creating an XCTest UI .zip package

Device Farm automatically generates a .xctestrun file for you for running your full XCTest UI test suite. If you want to use your own .xctestrun file on Device Farm, you can compress your .xctestrun files and app directory into a .zip file. If you already have a .ipa file for your test package you can include that here instead of *-Runner.app.

. └── swift-sample-UI.zip (directory) ├── my-project-nameUITest-Runner.app [OR] my-project-nameUITest.ipa ├── SampleTestPlan_2.xctestrun ├── SampleTestPlan_1.xctestrun └── (any other files)

If you want to run an Xcode test plan for your XCUI tests on Device Farm, you can create a zip containing your my-project-nameUITest-Runner.app or my-project-nameUITest.ipa file and xcode source code files required to run XCTEST_UI with test plans, including either a .xcworkspace or .xcodeproj file.

Here is a sample zip using a .xcodeproj file:

. └── swift-sample-UI.zip (directory) ├── my-project-nameUITest-Runner.app [OR] my-project-nameUITest.ipa ├── (any directory) └── SampleXcodeProject.xcodeproj ├── Testplan_1.xctestplan ├── Testplan_2.xctestplan └── (any other source code files created by xcode with .xcodeproj)

Here is a sample zip using a .xcworkspace file:

. └──swift-sample-UI.zip (directory) ├── my-project-nameUITest-Runner.app [OR] my-project-nameUITest.ipa └── (any directory) │ ├── SampleXcodeProject.xcodeproj │ ├── Testplan_1.xctestplan │ ├── Testplan_2.xctestplan | └── (any other source code files created by xcode with .xcodeproj) └── SampleWorkspace.xcworkspace └── contents.xcworkspacedata
Note

Please ensure that you do not have a directory named "Payload" inside your XCTest UI .zip package.

Upload your iOS XCTest UI tests

Use the Device Farm console to upload your tests.

  1. Sign in to the Device Farm console at https://console.aws.amazon.com/devicefarm.

  2. On the Device Farm navigation panel, choose Mobile Device Testing, then choose Projects.

  3. In the list of projects, choose the project that you want to upload your tests to.

    Tip

    You can use the search bar to filter the project list by name.

    To create a project, follow the instructions in Creating a project in AWS Device Farm

  4. Choose Create run.

  5. Under Run settings, in the Run type section, choose iOS app.

  6. Under Select app, in the App selection options section, select Upload own app. Then, select Choose file under Upload app.

  7. Browse to and choose your iOS app file. The file must be an .ipa file.

    Note

    Make sure that your .ipa file is built for an iOS device and not for a simulator.

  8. Under Configure test, in the Select test framework section, choose XCTest UI. Then, select Choose file under Upload app.

  9. Browse to and choose the .ipa or .zip file that contains your iOS XCTest UI test runner.

  10. Complete the remaining steps in the run creation process. You will select the devices that you want to test on and optionally specify additional configuration.

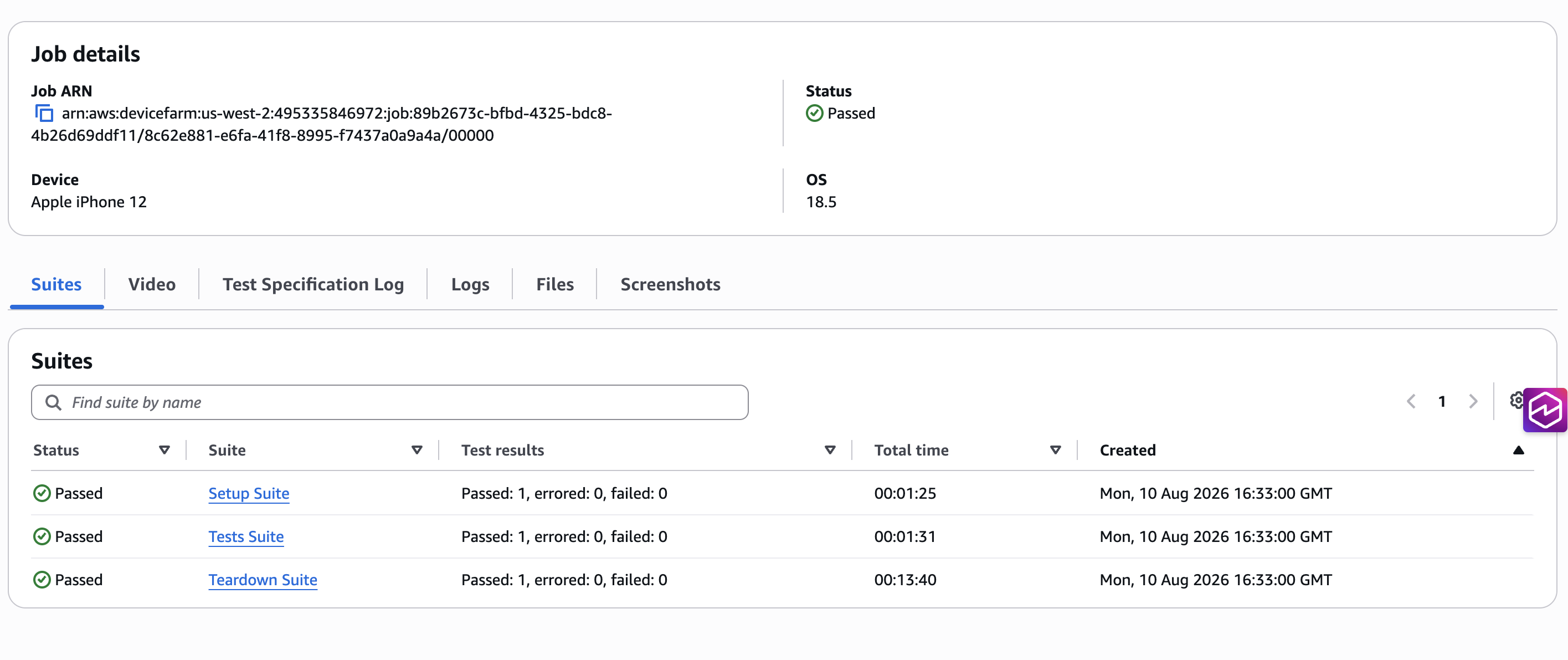

  11. Choose Create run. Device Farm runs your test and shows the results in the console.
