Configure dynamic fields in the No-code builder UI in Amazon Connect

This topic explains how to configure dynamic fields in components to display runtime data instead of hardcoded values when building agent and customer interfaces using the No-code builder UI in Amazon Connect.

You may have scenarios where you want the data displayed to an agent or customer to be dynamically populated instead of hardcoded. For example, if you are making a screen pop, you might want to surface the customer's name and profile ID. You need the data to be dynamic because the values of these fields change from contact to contact.

To dynamically populate a component field:

The most common fields that require dynamic values are:

It's technically possible for any field that is both visible and hidden to an agent to be dynamically determined at runtime. This is why every field in the Properties tab can be set to dynamic (the lightning bolt icon).

For example, look at the AttributesBar component in the following image.

With these settings, the value of AttributesBar is determined by the data that gets passed in at runtime into the Show view block.

When a field is set to dynamic, its static value is replaced with a dynamic reference. A Sample Data section appears below the field. You use this section to define sample data.

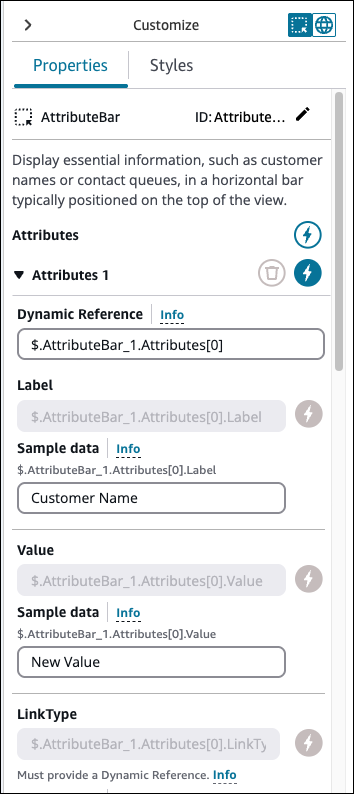

The dynamic reference reflects the data structure expected by the Show view block when setting up runtime data. For example, consider the Value of Attribute 1 in the AttributesBar component, shown in the following image.

You can edit dynamic references for clarity or reusability. Dynamic references can be shared across multiple fields and components within the View. For example, in the following image of the AttributeBar component, we update its dynamic reference to $.myAttributeValue. The Show view block now has a myAttributeValue field that expects a string input.

Important

The type of the dynamic reference must match the expected type of the field. For example, you can't use a string-based dynamic reference in a Boolean field. The following image shows an example error message when the dynamic reference doesn't match.

You also have the option to set all properties of an attribute in a component as dynamic. In the following image, everything about this attribute, including the label, is determined at runtime based on the values passed into the Show view block. For example, Customer Name is now sample data that you can use to get a sense of what the agent will see when they use a guide. However, this value is not viewable to the agent.

For certain components, such as AttributesBar, you can also set all properties of the component as dynamic. For example, with the AttributeBar, you can set choose the dynamic icon (the lightning bolt) to make all of the attributes dynamic. The attributes are determined by whatever is passed to the Show view block at runtime.
