Flow block in Amazon Connect: Loop prompts
This topic defines the flow block for looping a sequence of prompts while a customer or agent is on hold or in a queue.
Description
-
Loops a sequence of prompts while a customer or agent is on hold or in queue.
Supported channels
The following table lists how this block routes a contact who is using the specified channel.
| Channel | Supported? |
|---|---|
Voice |
Yes |
Chat |
No - Error branch |
Task |
No - Error branch |
No - Error branch |
Flow types
You can use this block in the following flow types:
-
Customer Queue flow
-
Customer Hold flow
-
Agent Hold flow
Properties
The following image shows the Properties page of the Loop prompts block. It shows there are three types of prompts you can choose from the dropdown list: Audio recording, Text to Speech, S3 file path.
How the Interrupt option works
Let's say you have multiple prompts and you set Interrupt to 60 seconds. Following is what will happen:
-
The block plays prompts in the order that they are listed for the entirety of the prompt length.
-
If the combined play time for the prompts is 75 seconds, after 60 seconds the prompt is interrupted and reset to the 0 second point again.
-
It's possible your customers would never hear potentially important information that is supposed to play after 60 seconds.
This scenario is especially possible when using the default audio prompts that Amazon Connect provides since these audio prompts can be as long as 4 minutes.
How the interrupt option works

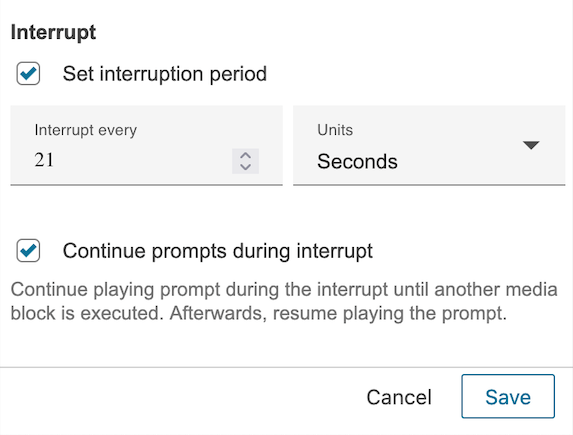

In the Loop prompts block, you can choose to enable the Continue prompts during interrupt option.
Consider a scenario where you've configured three 40-second prompts in this loop, with an Interrupt set to 60 seconds. Here's what happens in each case:
If you don't enable Continue prompts during interrupt:
-
The block plays prompts in order until the 60-second timeout. This means the first prompt plays entirely, followed by 20 seconds of the second prompt.
-
At 60 seconds, Connect executes the Flows logic in the timeout branch for the Loop prompts block. This may include different audio treatments, such as brief silences or a separate prompt via a Play prompt block.
-
After executing the Resume block in the timeout branch, Connect restarts the prompts from the beginning of the first prompt.
-
This behavior may prevent customers from hearing important information scheduled after 60 seconds (such as in the third prompt). This is particularly likely when using default Amazon Connect audio prompts, which can be up to 4 minutes long.
If you enable Continue prompts during interrupt:
-
The block plays prompts in order.
-
At 60 seconds, after playing the first prompt and 20 seconds of the second, Connect executes the Flows logic in the timeout branch for the Loop prompts block.
-
If your timeout branch doesn't use Flow blocks that play different audio (such as Play prompt, Get customer input, Store customer input, or Invoke Lex bot), Connect continues playing the prompt audio from where it was interrupted. To the customer, this sounds like uninterrupted playback of the second prompt, followed by the third.
-
If the timeout branch includes different audio configurations (like a callback offer prompt for long wait times), Connect interrupts the Loop prompts block to play this audio. It then executes the timeout branch logic before resuming at the start of the next prompt in the Loop prompts block. For example, if interrupted during the second prompt, Connect resumes at the beginning of the third prompt after executing the timeout branch logic.
-
Configuration tips
-
The following blocks are not allowed before the Loop prompts block:
-
Transfer to queue, including Transfer to callback queue
-
For information about choosing a prompt from the Amazon Connect library or an S3 bucket, see the Play prompt block.
-
When Loop prompts is used in a Queue flow, audio playback can be interrupted with a flow at preset times.
-
Always use an interruption period that's greater than 20 seconds. This is the amount of time an available agent has to accept the contact. If the interruption period is less than 20 seconds, you might get contacts going down the Error branch. This is because Amazon Connect doesn't support dequeuing the customer when they are being routed to an active agent and are in the 20 second window to join.
-
The internal counter for the loop is persisted for the call, not the flow. If you reuse the flow during a call, the loop counter isn't reset.
-
If this block is triggered during a chat conversation, the contact is routed down the Error branch.
-
Some existing flows have a version of the Loop prompts block that doesn't have an Error branch. In this case, a chat contact stops execution of the customer queue flow. The chat is routed when the next agent becomes available.
Configured block
The following image shows what this block looks like when it is configured to play a prompt from the Amazon Connect library. Choose + next to Audio Recording to view the full name of the file. The configured block has two branches: Timeout and Error.
The following image shows what this block looks like when it is configured to play a prompt from Amazon S3. Choose + next to S3 path to view the full path. The configured block has two branches: Timeout and Error.
Sample flows
Amazon Connect includes a set of sample flows. For instructions that explain how to access the sample flows in the flow designer, see Sample flows in Amazon Connect. Following are topics that describe the sample flows which include this block.
Scenarios
See these topics for scenarios that use this block:
