Flow block in Amazon Connect: AWS Lambda function
This topic defines the flow block for calling AWS Lambda. The fetched response can be used in the Set contact attributes block.
Description
-
Calls AWS Lambda.
-
The returned data can be used to set contact attributes in the Set contact attributes block.
-
For an example, see Tutorial: Create a Lambda function and invoke in a flow.
Supported channels
The following table lists how this block routes a contact who is using the specified channel.
| Channel | Supported? |
|---|---|
Voice |
Yes |
Chat |
Yes |
Task |
Yes |
Yes |
Flow types
You can use this block in the following flow types:
-
Inbound flow
-
Customer Queue flow
-
Customer Hold flow
-
Customer Whisper flow
-
Agent Hold flow
-
Agent Whisper flow
-
Transfer to Agent flow
-
Transfer to Queue flow
Properties
The following image shows the Properties page of the AWS Lambda function block.
In the Select an action box, choose from the following options:
-
Load Lambda result (if run asynchronously)
Invoke Lambda
When Select an action is set to Invoke Lambda, note the following properties:
-
Execution mode:
-
Synchronous: When Synchronous is selected, the contact is routed to the next block only after the Lambda invocation completes.
-
Asynchronous: The contact is routed to the next block without waiting for the Lambda to complete.
You can configure Wait block to wait for a Lambda that is invoked using the asynchronous execution mode.
-
-
Timeout: Enter how long to wait for Lambda to time out. You can enter maximum of 8 seconds for Synchronous mode and 60 seconds for Asynchronous mode.
If your Lambda invocation gets throttled, the request is retried. It is also retried if a general service failure (500 error) happens.
When a Lambda invocation returns an error, Amazon Connect retries up to three times, for maximum until timeout specified. At that point, the contact is routed down the Error branch.
-
Response validation: The Lambda function response may be either a STRING_MAP or JSON. You must set it when you configure the AWS Lambda function block in the flow.
-
When the response validation is set to STRING_MAP, the Lambda function returns a flat object of key/value pairs of the string type.
-
When the response validation is set to JSON, the Lambda function returns any valid JSON including nested JSON.
-
Load Lambda Result
When Select an action is set to Load Lambda Result, note the following properties:
-
Lambda Invocation RequestId: This is the requestId of the Lambda when it is run in Asynchronous mode.
$.LambdaInvocation.InvocationIdcontains the requestId of the most recent asynchronously run Lambda.
When you choose the Load Lambda Result action, choose the following options under Lambda Invocation RequestId:
-
Namespace = Lambda Invocation
-
Key = Invocation ID
Configuration tips
-
To use an AWS Lambda function in a flow, first add the function to your instance. For more information, see Add a Lambda function to your Amazon Connect instance.
-
After you add the function to your instance, you can select the function from the Select a function drop-down list in the block to use it in the flow.
Configured block

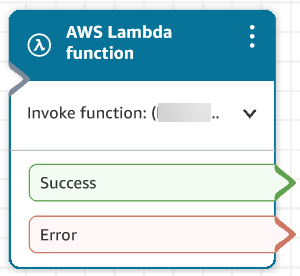

The following image shows an example of what this block looks like when it is configured. It has two branches: Success and Error. It is configured for Asynchronous execution mode. When it's configured for Synchronous execution mode, it has a Timeout branch.
Sample flows
Amazon Connect includes a set of sample flows. For instructions that explain how to access the sample flows in the flow designer, see Sample flows in Amazon Connect. Following are topics that describe the sample flows which include this block.
Sample Lambda integration flow in Amazon Connect
Scenarios
See these topics for scenarios that use this block:
