Using AWS services - Amazon AppStream 2.0
AWS Identity and Access ManagementVPC endpoints

Using AWS services

AWS Identity and Access Management

Using an IAM role to access AWS services, and being specific in the IAM policy attached to it, is a best practice that provides only the users in AppStream 2.0 sessions have access without managing additional credentials. Follow the best practices for using IAM Roles with AppStream 2.0.

Create IAM policies to protect Amazon S3 buckets that are created to persist user data in both home folders and application settings persistence. This prevents non-AppStream 2.0 administrators from access.

VPC endpoints

A VPC endpoint enables private connections between your VPC and supported AWS services and VPC endpoint services powered by AWS PrivateLink. AWS PrivateLink is a technology that enables you to privately access services by using private IP addresses. Traffic between your VPC and the other service does not leave the Amazon network. If public internet access is required only for AWS services, VPC endpoints remove the requirement for NAT gateways and internet gateways altogether.

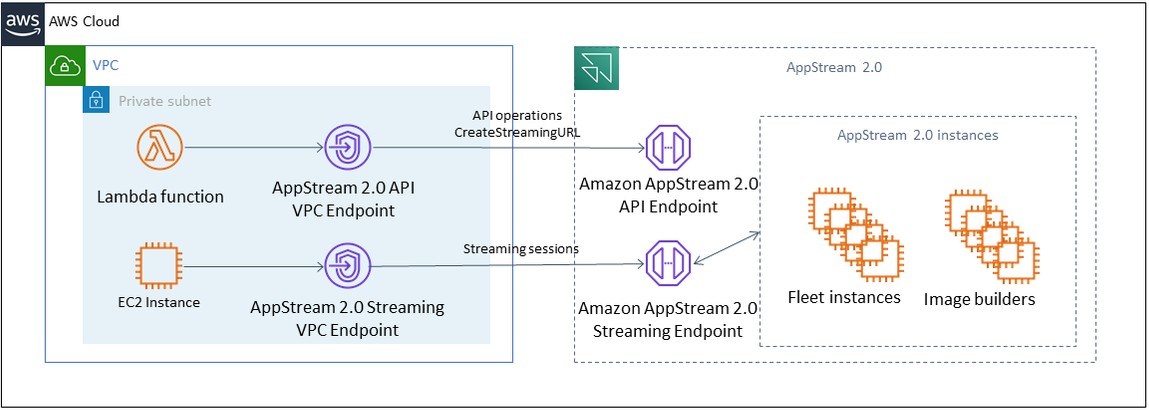

In environments where automation routines or developers require making API calls for AppStream 2.0, create an interface VPC endpoint for AppStream 2.0 API operations. For example, if there are EC2 instances in private subnets without public internet access, a VPC endpoint for AppStream 2.0 API can be used to call AppStream 2.0 API operations such as CreateStreamingURL. The following diagram shows an example setup where AppStream 2.0 API and streaming VPC endpoints are consumed by Lambda functions and EC2 instances.

A reference architecture diagram for VPC endpoint

VPC endpoint

The streaming VPC endpoint allows you to stream sessions through a VPC endpoint. The streaming interface endpoint maintains the streaming traffic within your VPC. Streaming traffic includes pixel, USB, user input, audio, clipboard, file upload and download, and printer traffic. To use the VPC endpoint, the VPC endpoint setting must be enabled at the AppStream 2.0 stack. This serves as an alternative to streaming user sessions over the public internet from locations that have limited internet access and would benefit from accessing through a Direct Connect instance. Streaming user sessions through a VPC endpoint require the following:

  • The Security Groups that are associated with the interface endpoint must allow inbound access to port 443 (TCP) and ports 1400–1499 (TCP) from the IP address range from which your users connect.

  • The Network Access Control List for the subnets must allow outbound traffic from ephemeral network ports 1024-65535 (TCP) to the IP address range from which your users connect.

  • Internet connectivity is required to authenticate users and deliver the web assets that AppStream 2.0 requires to function.

To learn more about restricting traffic to AWS services with AppStream 2.0, see the administration guide for creating and streaming from VPC endpoints.

When full public internet access is required, it’s a best practice to disable Internet Explorer Enhanced Security Configuration (ESC) on the Image Builder. For more information, see the AppStream 2.0 administration guide to disable Internet Explorer enhanced security configuration.
